4) [Start Monitoring]: [Start Monitoring] button will show you digital input data of the operating
channel. The figure below is monitoring screen when all channels are “Run” status.

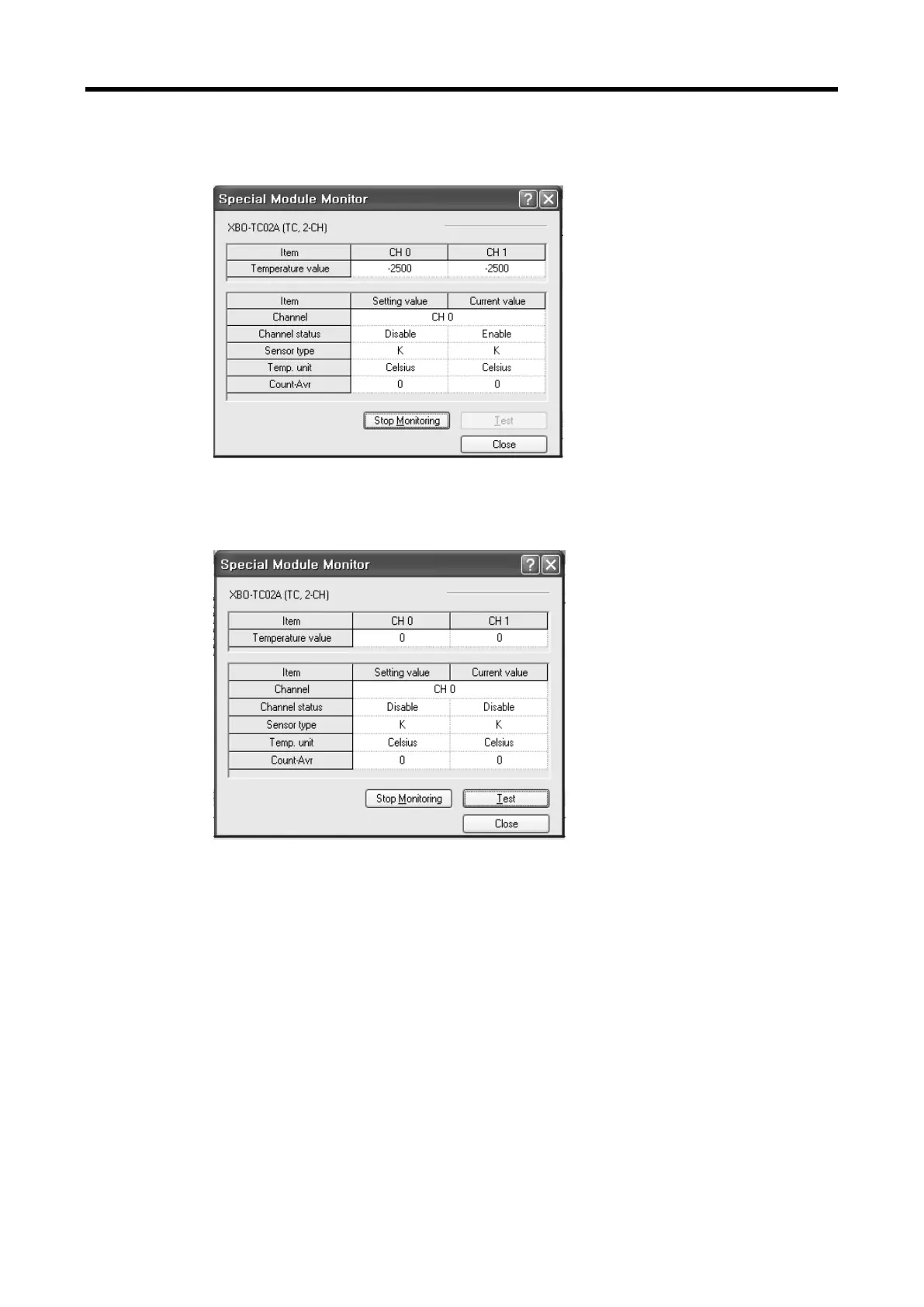

[Start Monitoring] execution screen
5) [Test]: [Test] is used to change the parameters of the Thermocouple input module. You can
change the parameters when you click the values at the bottom of the screen. It is only
available when XGB CPU unit’s status is in [Stop].
[Test] execution screen
