Chapter 12 Thermocouple Input Option Module (XBO-TC02A)

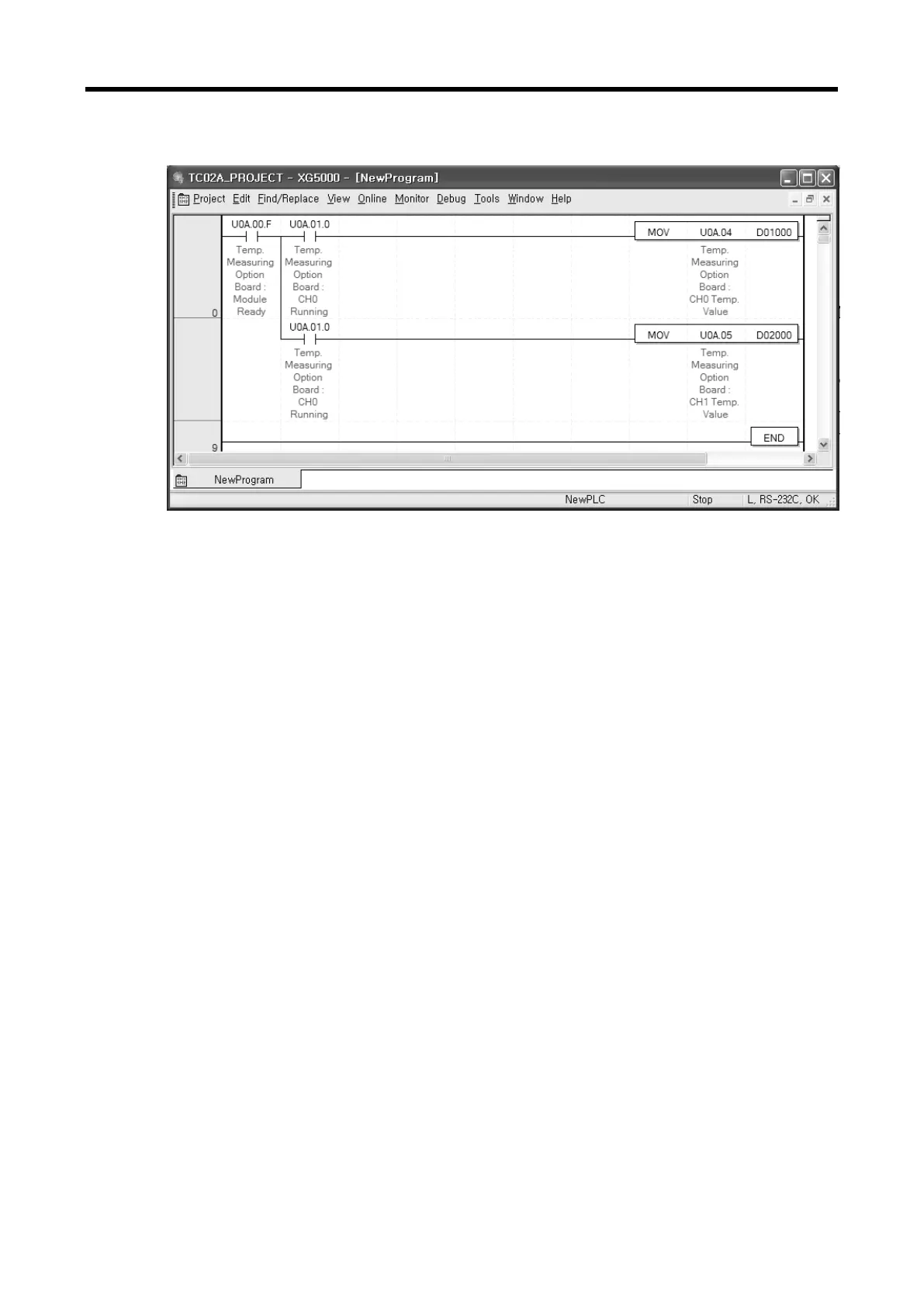

(d) Select [View] -> [Device/Comments]. Devices and comments are both displayed.
