XGB Analog edition manual
12.13.3 Example when error occurs

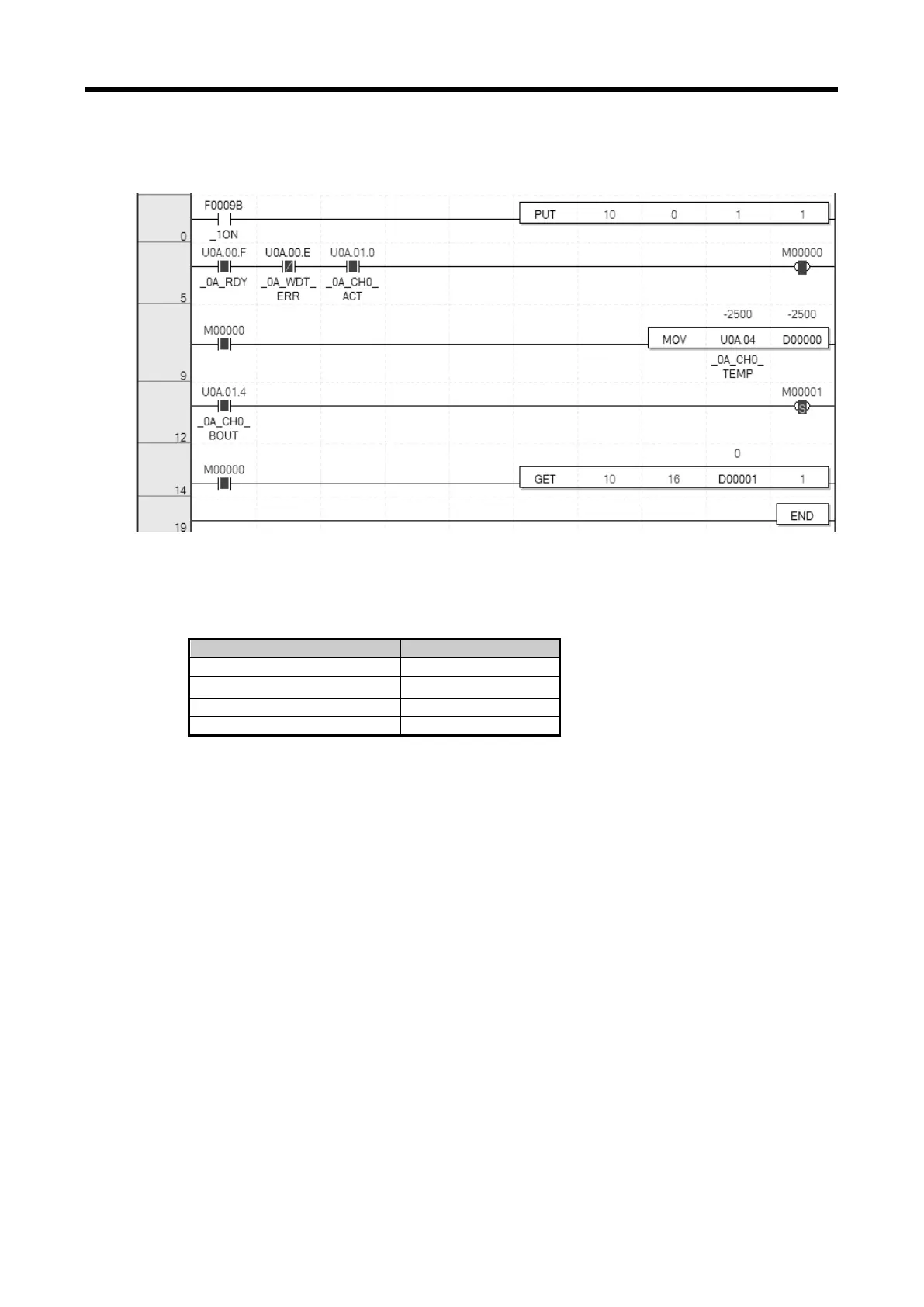

(1) Program Example
(a) If disconnection error occurs at CH0, U0A.01.4 (CH0 disconnection) is on and M0001 bit is set
(b) If disconnection error occurs at CH0, min. value within the range of K type temperature senor
is displayed at U01.04.
(c) It is monitored as follows according to monitor display type.
When monitoring the temp. conversion value, select “Unsigned Decimal”.
℃
12 - 34
