Chapter 13 Analog Input Module (XBF-AD04C)
13.6.3 Average processing
1)
Time average
Input value of specified channel accumulates during setting time and then the average
value of the sum is shown with digital data.

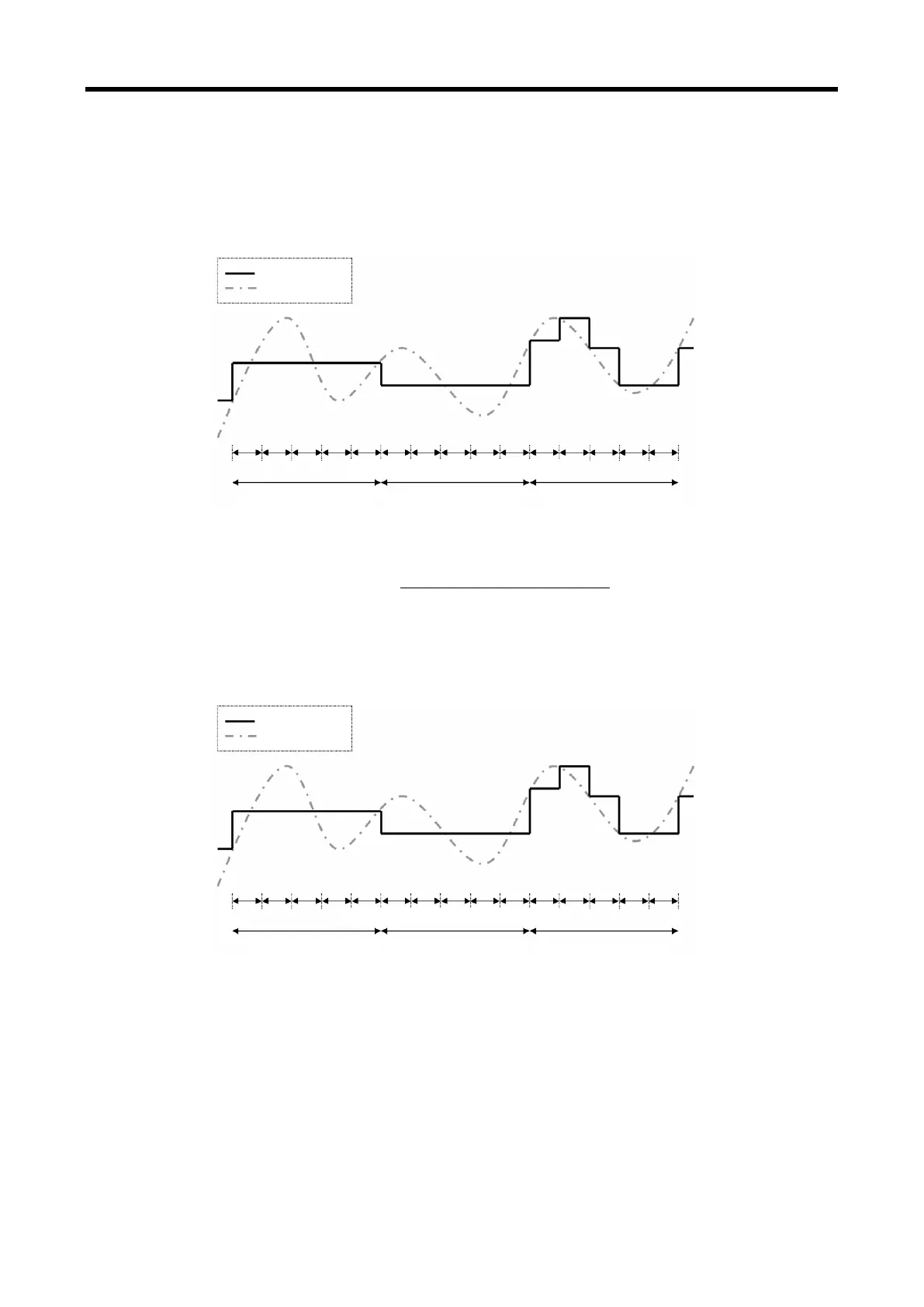

평균처리후 입력값
실제 입력값
평균처리구간 샘플링처리구간
Channel scan Interval (1ms/ used channel)
Input value after
average processing
Actual input value
Average processing interval
Average processing interval Sampling processing interval
Setting range = 4 ~ 16,000 [ms]
In case of the time average, the average processing count is calculated by depending on
the number of used channels.
ms1 channels used ofNumber
timeAverage
count processing Average
×
=
2)
Number of averages
Input value of specified channel accumulates during setting numbers and then the average
value of the sum is shown with digital data.
평균처리후 입력값
실제 입력값
Average processing interval
평균처리구간 샘플링처리구간
Channel scan interval (1ms/ used channel)
Input value after
average processing
Actual input value
Average processing interval
Average processing interval
Sampling processing interval
Setting range = 2 ~ 64,000 [times]
In case of number of averages, the average processing interval is calculated by depending
on used channels.
Average processing interval [
㎳
]
= Number of averages × Number of used channels × 1
㎳
13 - 11
