14.7.2 Notices in wiring
(1) Do not put the power line near the external I/O signal line of analog input module. You have to
secure enough distance to avoid the interruption from the induced noise and the surge.
(2) The wire has to select by considering permitted current and the ambient temperature.
The maximum wire size is good in case of AWG22 (0.3㎟) or more.
(3) When the wire is so near with high temperature machines and materials and touched with oil for
a long time, it can be short circuit and malfunction.
(4) When doing terminal ports wiring, check the polarity.
(5) In case that the high voltage line and the power line are wired at the same time, the induced
interruption is caused. So it can be a reason for breakdown.
14.7.3 Example for wiring

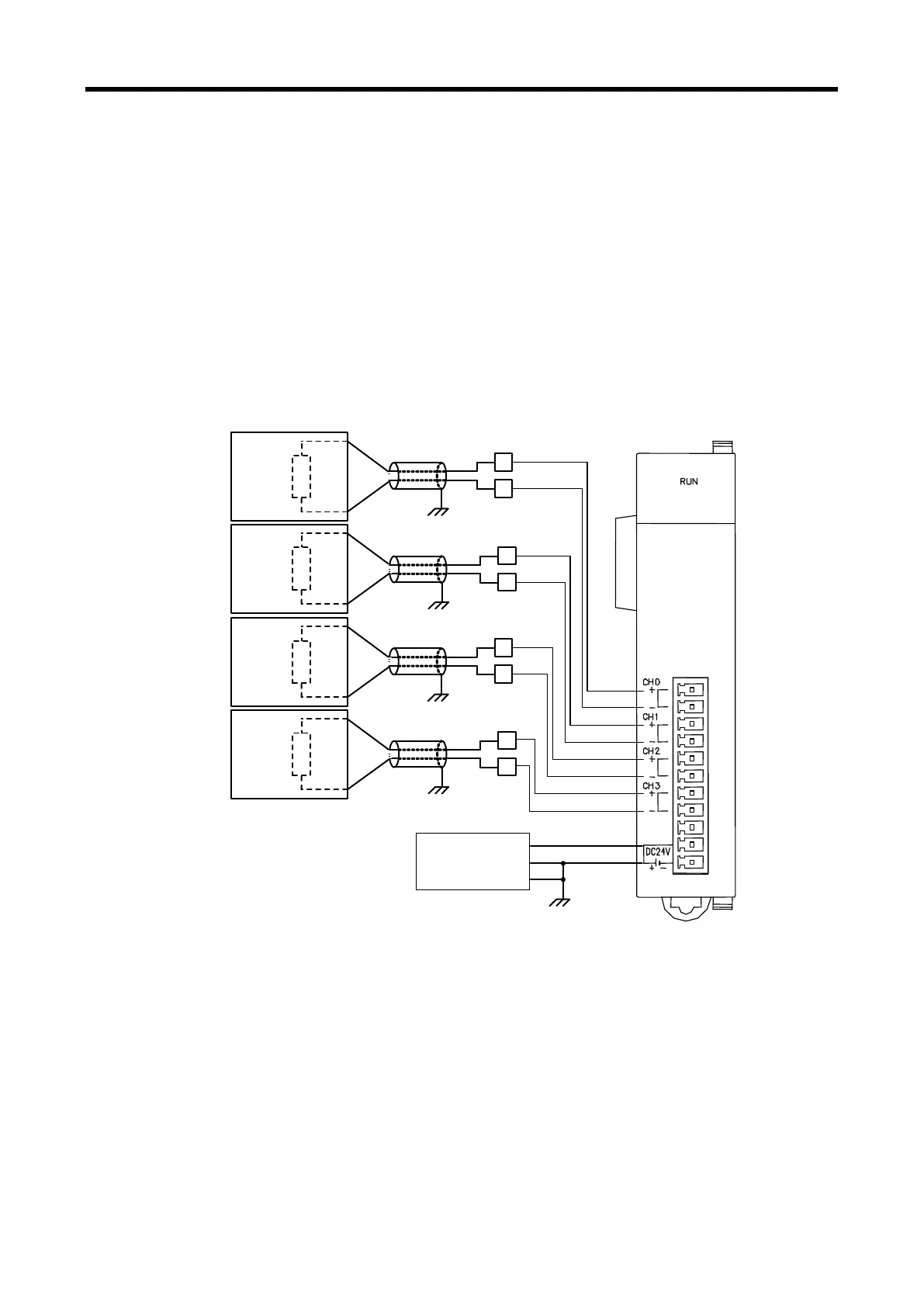

(1) Example for analog voltage output wiring (XBF-DV04C : Voltage)
XBF-DV04C
XBF-DV04C
+
-
CH0
+
-
CH1
CH0-
DC24V+
DC24V-
+
-
CH2
+
-
CH3
CH0+
CH1-
CH1+
CH2-
CH2+
CH3-
CH3+
1kΩ
or more
Motor-driven devices
1kΩ
or more
1kΩ
or more
1kΩ
or more
DC Power
(For analog module)
PE
※1: Two-core twisted shield wire should be used as wire.
※2: DC power for analog power supply has to connect DC24V- with PE.
