Chapter14 Analog Output Module (XBF-DV04C/XBF-DC04C)
(4) [Start Monitoring] button will show you digital input data of the operating channel.

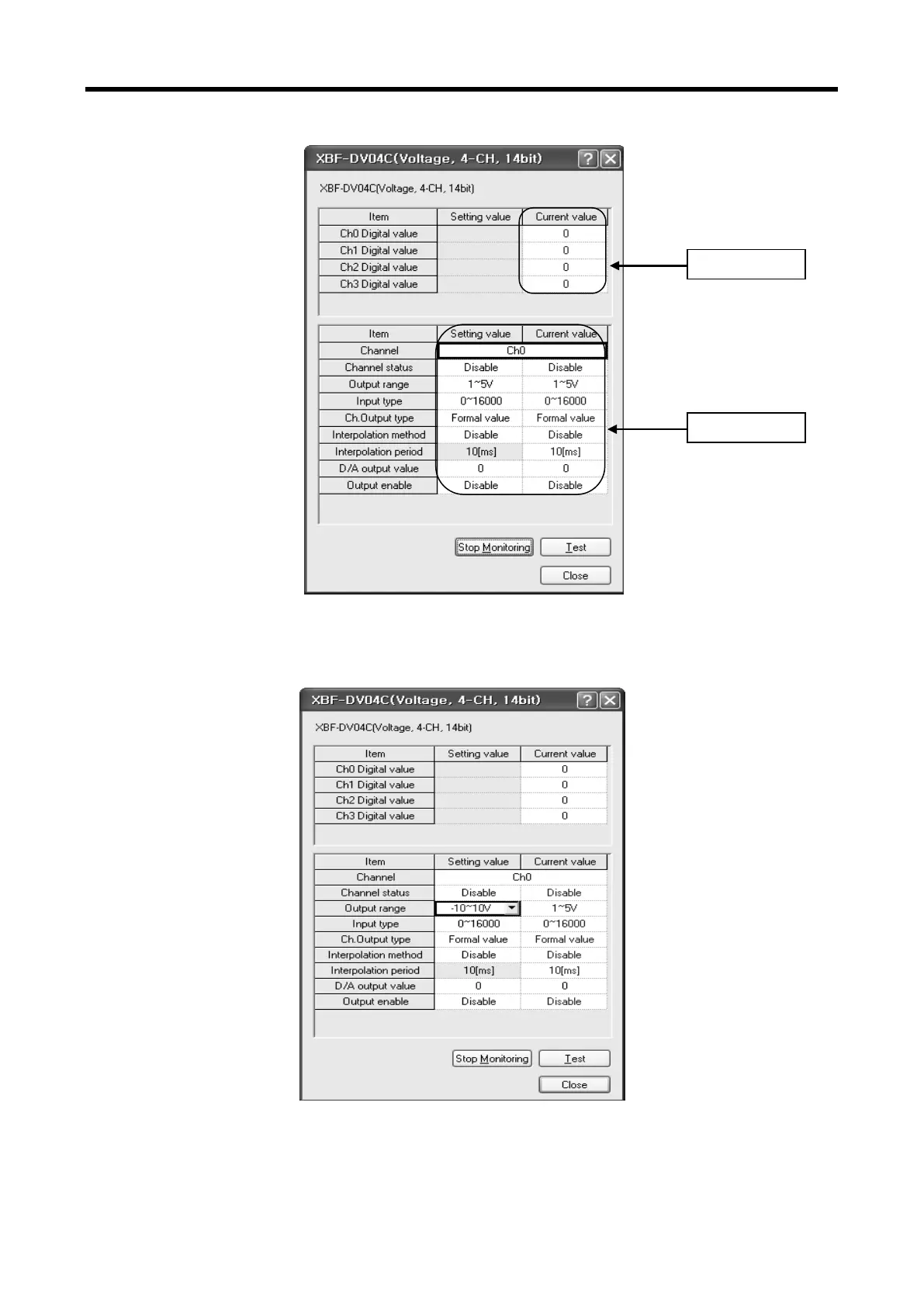

Execution screen of [Start Monitoring]
(5) [Test] is used to change the parameters of the voltage output module. You can change the
parameters when you click the values at the bottom of the screen. It is only available when
XGB CPU unit’s status is in [Stop Monitoring].
Execution screen of [Test]
(6) [Close] is used to escape from the monitoring/test screen. The Max value, Min value,
current value will not saved anymore after the monitoring/test screen is closed.
14 - 23
