XGB Analog edition manual
2 - 20
2.10.1 How to use special module monitoring
Monitoring special module will be based on XBF-AD04A.
(1) Start of [Special Module Monitoring]
Go through [OnLine] -> [Connect] and [Monitor] -> [Special Module Monitoring] to start. If the
status is not [OnLine], [Special Module Monitoring] menu will not be active.
(2) How to use [Special Module Monitoring]

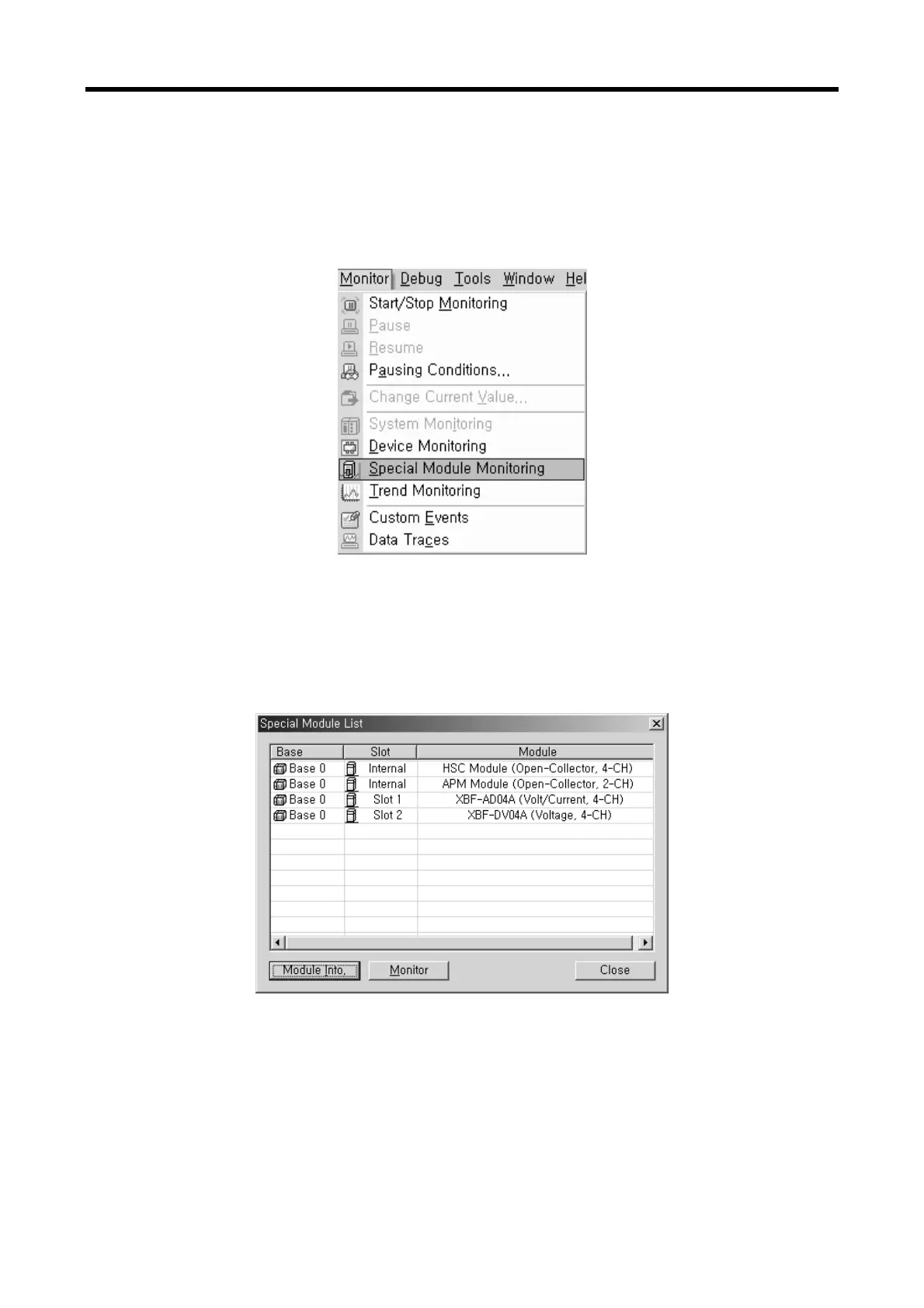

(a) With XG5000 connected to PLC CPU (on-line status), click [Monitor] -> [Special Module
Monitoring] to display ‘Special Module Select’ screen as in Fig. 5.1 showing base/slot
information in addition to special module type. The module installed on the present PLC system
will be displayed on the list dialog box.
To Next Page
