Chapter 15 PID Function (Built-in function)
15 - 41
15.4.5 Auto-tuning instructions
The commands used in XGB series auto-tuning are as follows.
1) PIDAT
PIDAT is a command to execute auto-tuning by loops.
- Operand S means the loop no. to execute auto-tuning and avaiable only for constant(0~15).
- If start junction is on, the PID control of a loop starts.

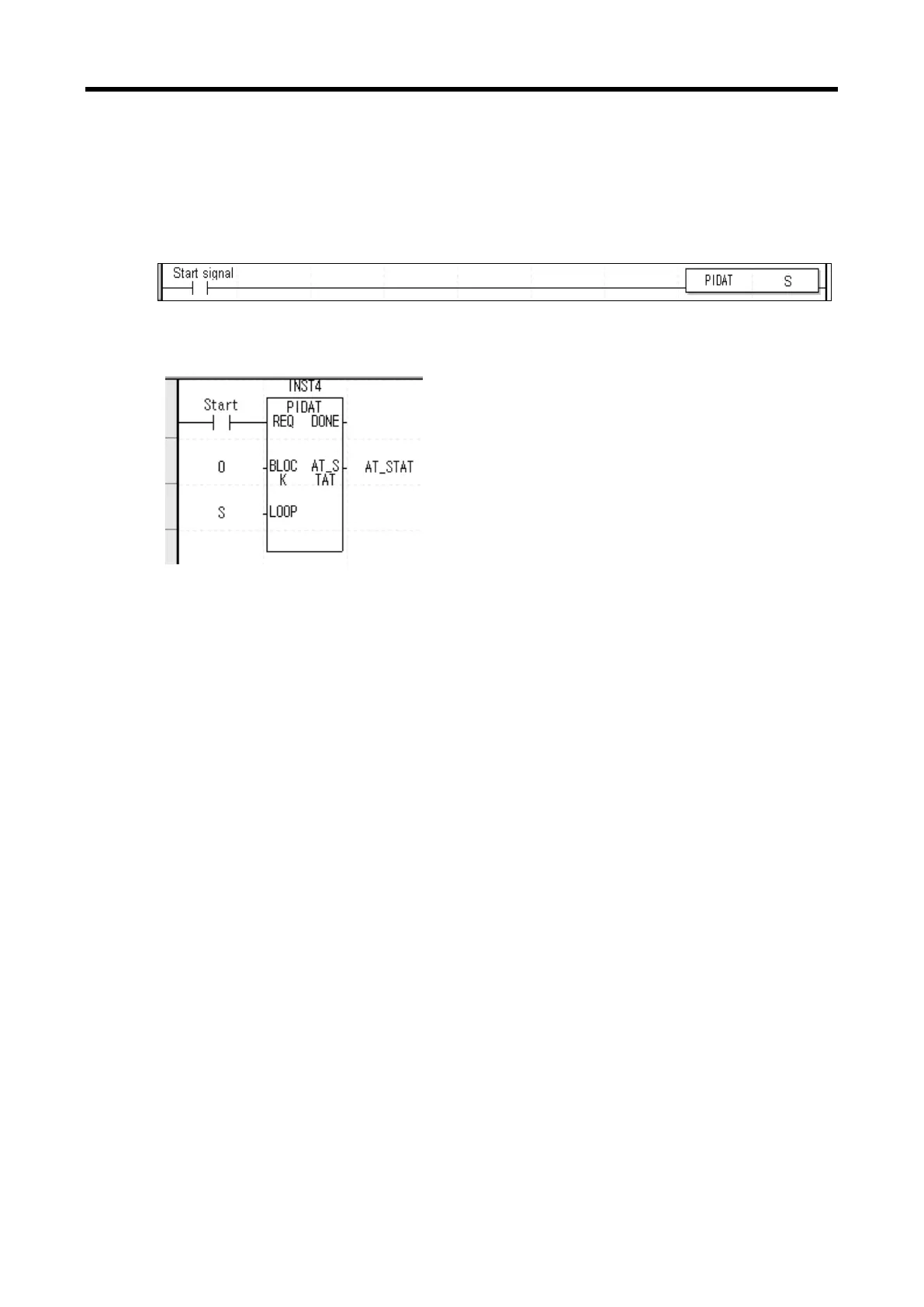

- In case of IEC type, the following PIDAT function block is used for start of auto-tuning
