Chapter 3 Analog Output Module (XBF-DV04A, XBF-DC04A, XBF-DC04B)
3 - 15
(d) [Start Monitoring] button will show you digital input data of the operating channel.
(e) [Test] is used to change the parameters of the voltage output module. You can change the
parameters when you click the values at the bottom of the screen. It is only available when
XGB CPU unit’s status is in [Stop Monitoring].
(f) [Close] is used to escape from the monitoring/test screen.

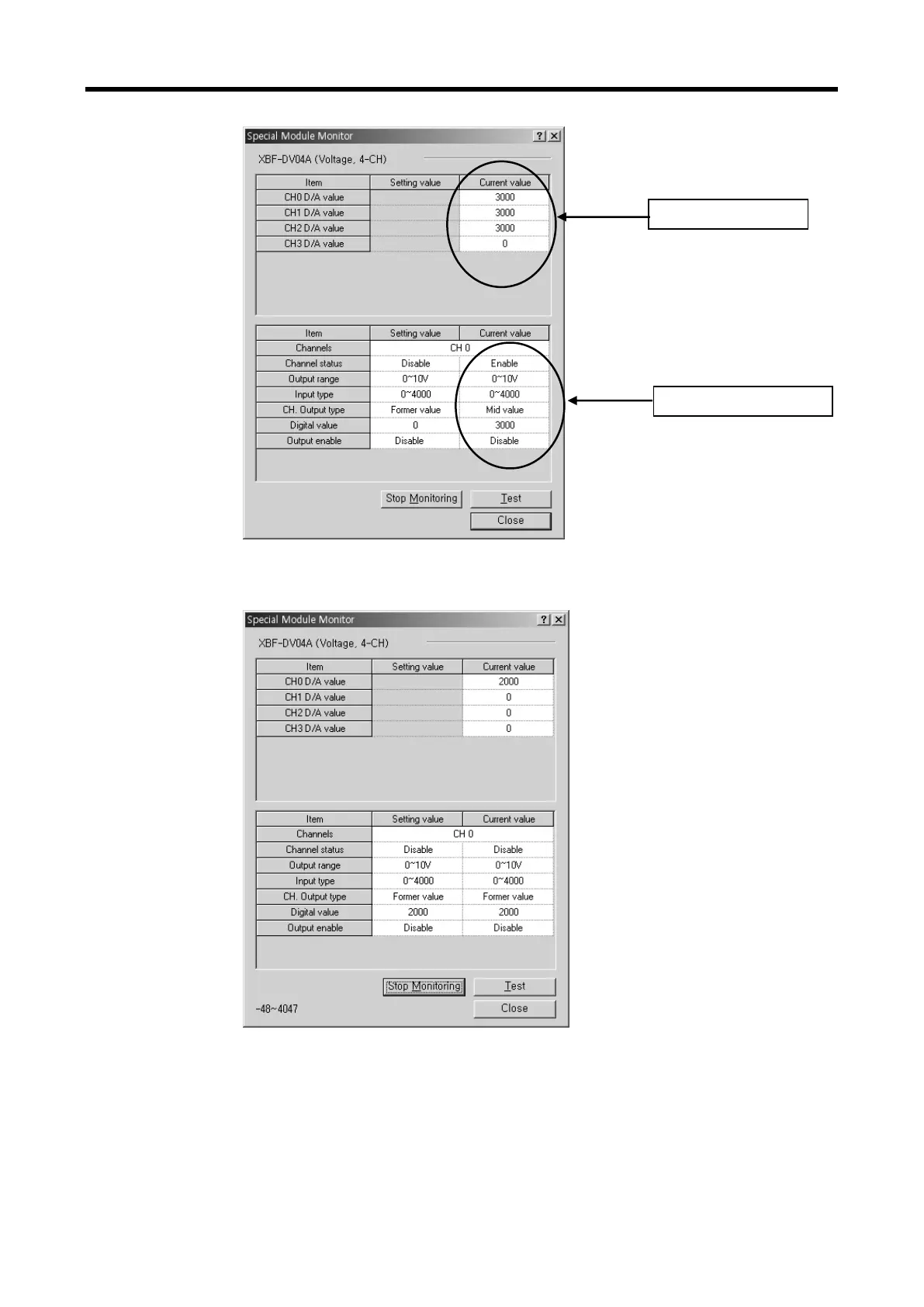

Monitoring screen
Details of channel 0
