Luminator ODK4 User Manual

ODK4 QUICK REFERENCE GUIDE
Luminator Technology Group
8
3.5 Set Destination A or B Message
To set the Destination-A Message, press the DestA Key on the default screen (see Fig
3-2).
Enter the destination code number via the ODK number pad and press the hard ENTER
key (see Fig 3-9).

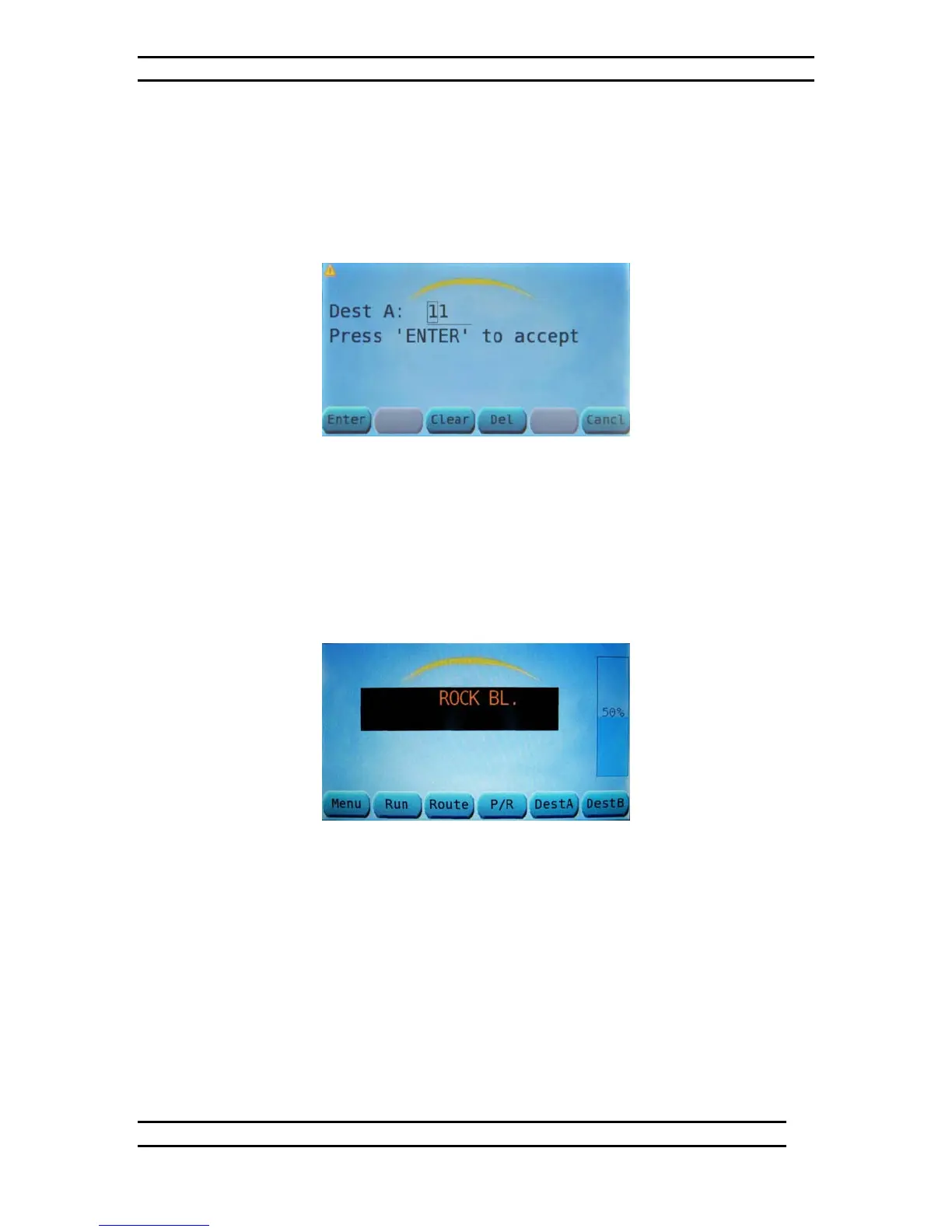

Figure 3-9. Setting Destination A Window
Note: To change a destination code, use the right arrow key to move the square cursor
to the end of the string and then use the left arrow key to move cursor back to the left to
erase existing numbers (you cannot simply overwrite them).
In approximately 5 seconds after the destination code number is entered it will display on
the ODK display screen (see Fig 3-10) and the route signs.
Figure 3-10. New Destination A Set
Note: Setting Destination-B is performed in the same manner as setting Destination-A.
