Luminator ODK4 User Manual

ODK4 QUICK REFERENCE GUIDE
Luminator Technology Group
18

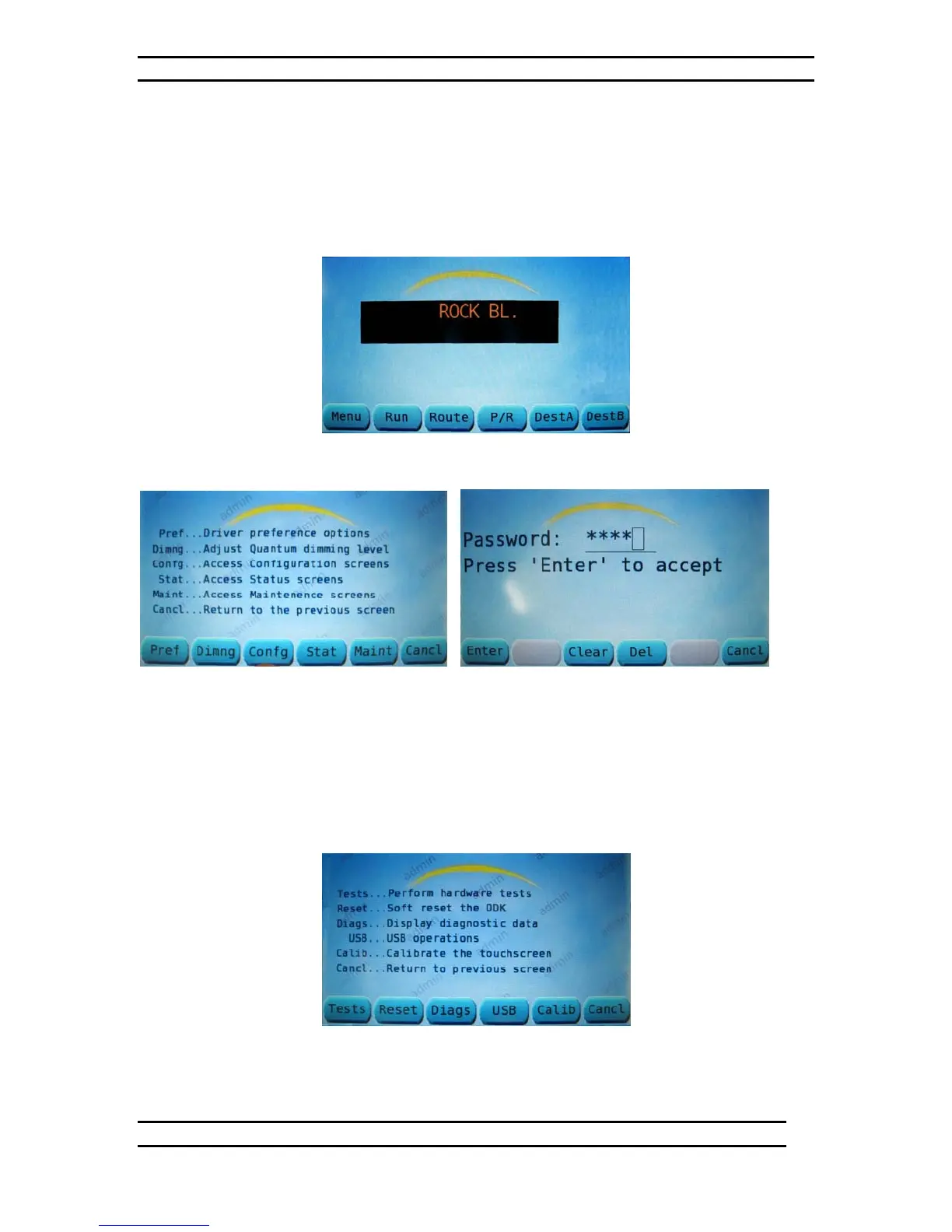

7.2 Access USB Operations Menu
These screens are used to verify/calibrate/upgrade ODK functions and operations.
Press MENU at the default screen (see Fig. 7-5) to go to the Main Menu Screen.
Figure 7-5. Default Screen
Figure 7-6. Main Menu Screen Figure 7-7. Access Maintenance. Screen
From the Main Menu Screen (see Fig. 7-6) press the MAINT Key to open the Access
Maintenance Screens window – this will generate a request for a password.
From the Access Maintenance Screens window (see Fig. 7-7) enter password (default is
6511) via the keypad; then press ENTER to access the Maintenance Menu Screen (see
Fig. 7-8).
Figure 7-8. Maintenance Menu Screen

Luminator ODK4 Specifications

General

Brand	Luminator
Model	ODK4
Category	Monitor
Language	English
