ODK4 QUICK REFERENCE GUIDE
Luminator Technology Group
2
1.2 Cabling
Operation of the ODK4 requires a special power/data adaptor cable (see Fig 1-2)
to connect with existing signs.

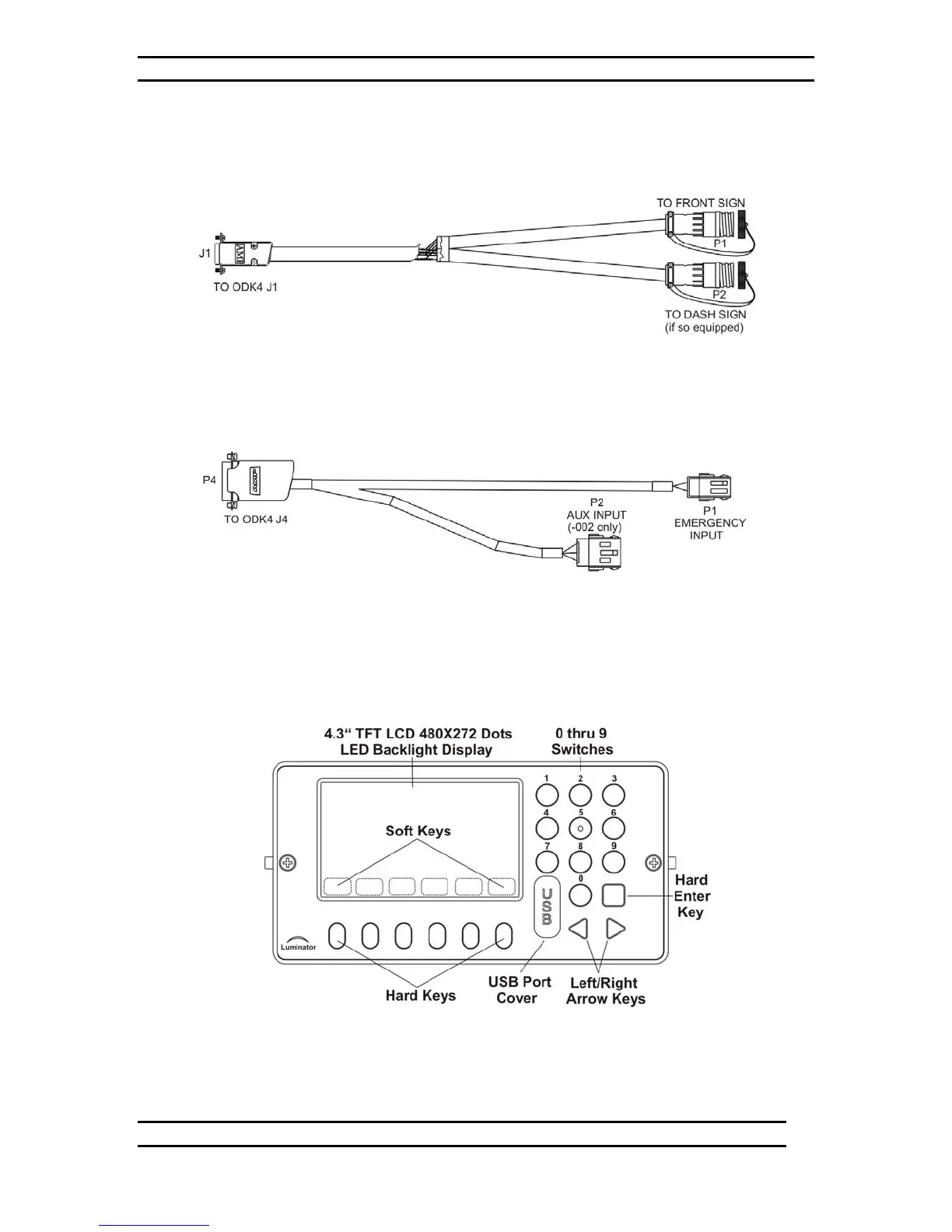

Figure 1-2. Power/Data Adaptor Cable Assembly (PN: 508378-001)
For vehicles equipped with a drive emergency/panic switch (or auxiliary inputs),
an additional adaptor cable (see Fig 1-3) will be required.
Figure 1-3. Emergency/Auxiliary Input Adaptor Cable Assembly (PN: 508379-001/-002)
1.3 ODK4 Display & Keypad
The sign system is controlled through programmed instructions stored in ODK memory
and through its liquid crystal display (LCD) touchscreen and keypad (see Fig 1-4).
Messages displayed on vehicle sign(s) can also be displayed on the ODK touchscreen.
Figure 1-4. Operator's Display and Keyboard (ODK4)
Note: The touch sensitive soft keys labeled on the LCD touchscreen will vary per the
menu being displayed and are functionally identical to the blue hard keys located directly
beneath them and can be used interchangeably.
