ODK4 QUICK REFERENCE GUIDE
Luminator Technology Group
21
7.3.3 Save Message Listing to Device
The Message Listing file can be saved from the ODK4 to the USB device to allow
copying to other ODK4 units. To access the Maintenance Menu see Figures 7-5 through
7-8.
From the Maintenance Menu (see Fig. 7-8) press the USB Key to access the USB
Operations menu. Remove USB port cover and insert flashdrive into USB Port.

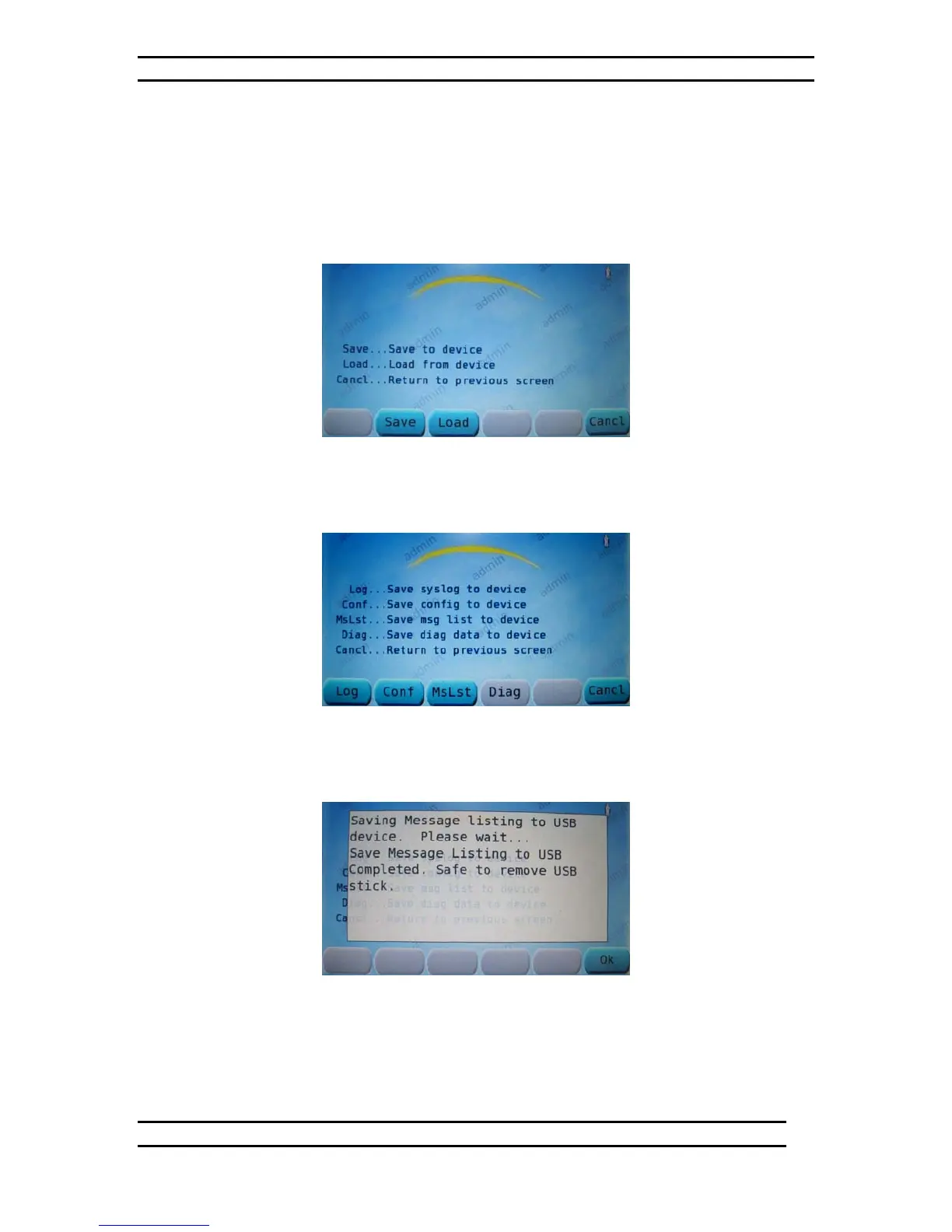

Figure 7-15. USB Operations Menu
From the USB Operations menu (see Fig. 7-15) press the SAVE Key to access the Save
to Device menu (see Fig. 7-16).
Figure 7-16. Save to Device Menu
From the Save to Device menu (see Fig. 7-16) press the MSLST Key to initiate the Save
Message List to Device command (see Fig. 7-17).
Figure 7-17. Save Message Listing Complete
Immediately after pressing the MSLST Key the ODK will begin saving the Message
Listing to the flashdrive. After 60 seconds the Message Listing will be saved and the
ODK will indicate it is now safe to remove flashdrive (see Fig. 7-17).
