Lytro Illum User Manual

61
Calibrating the Level Gauge
The rst time you tap the Level icon calibrate the ILLUM’s level feature, your ILLUM may need to be calibrated. Follow the 6
simple on-screen steps to properly calibrate your ILLUM. You can also follow the steps below if you ever need to recalibrate the
level in the camera.

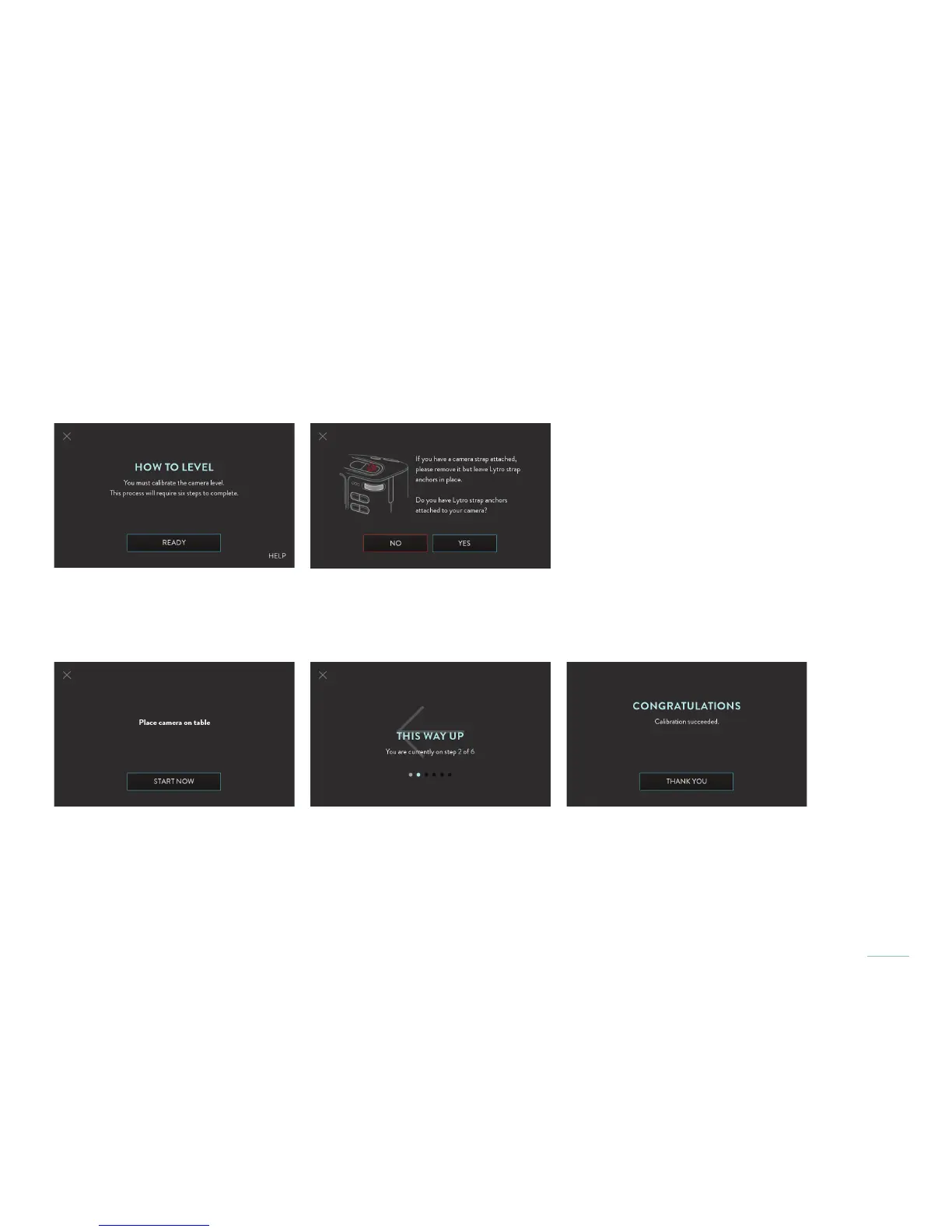

Follow the on-screen guide to calibrate the ILLUM level. You must remove the ILLUM lens hood and Lytro straps before cal-
ibrating. If you have attached the Lytro strap anchors to the ILLUM, you will need to remove them to continue. Click yes on
screen to initiate the 6 step calibration process.
Place the ILLUM on a at, level surface like a table. Touch the Start Now button on the screen. As prompted, rotate the ILLUM
in the direction indicated by the arrow and place the ILLUM on that same at table surface. You will be instructed to rotate and
replace the ILLUM in the new orientation six times to complete the process. If you rotate the camera the wrong direction or
skip a step when instructed, the calibration process will not complete.

Lytro Illum Specifications

General

Megapixel	- MP
Camera type	Bridge camera
Sensor type	CMOS
Image stabilizer	No
Image sensor size	1/1.2 \
Supported aspect ratios	3:2
Maximum image resolution	2450 x 1634 pixels
Image sensor size (W x H)	10.82 x 7.52 mm
Still image resolution(s)	2450 x 1634
Digital zoom	- x
Optical zoom	8 x
Focal length range	9.5 - 77.8 mm
Minimum aperture number	-
Maximum focal length (35mm film equiv)	250 mm
Minimum focal length (35mm film equiv)	30 mm
Focus adjustment	Auto
Light metering	Evaluative (Multi-pattern)
ISO sensitivity	80, 3200
Light exposure modes	Manual, Shutter priority AE
ISO sensitivity (max)	3200
ISO sensitivity (min)	80
Light exposure control	Program AE
Auto Exposure (AE) lock	Yes
Fastest camera shutter speed	1/4000 s
Slowest camera shutter speed	32 s
HD type	Not supported
Maximum video resolution	- pixels
Memory slots	1
Internal memory	- MB
Compatible memory cards	SD, SDHC, SDXC
Display diagonal	4 \
Display resolution	480 x 800 pixels
USB version	3.2 Gen 1 (3.1 Gen 1)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Self-timer delay	2, 10 s
Camera file system	RAW
Mac operating systems supported	Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Power source type	Battery
Battery voltage	3.7 V
Battery capacity	3760 mAh
Material	Aluminium, Magnesium
Product color	Black
Sustainability certificates	RoHS
Cables included	Micro-USB
Bundled software	Lytro Desktop
F-number (relative aperture)	2
Storage temperature (T-T)	2450 x 1634 °C

Weight and Dimensions

Depth	166 mm
Width	145 mm
Height	86 mm
Weight	940 g
Weight (including battery)	1029 g
