214683 119 Revision A

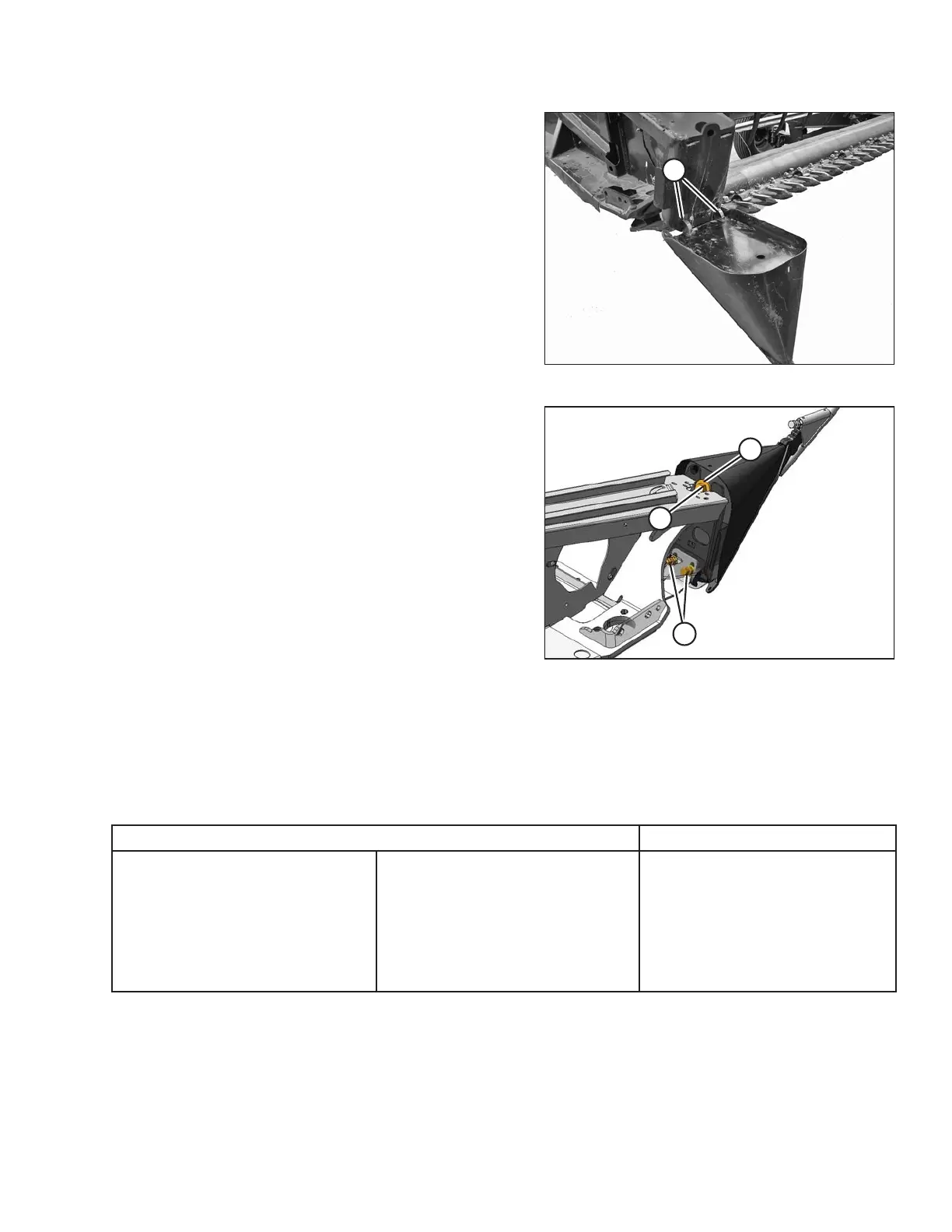

Figure 3.142: Crop Divider
6. Position crop divider as shown by inserting lugs (A) into
holes in endsheet.
Figure 3.143: Crop Divider
7. Lift forward end of crop divider and install bolt (A) and
special stepped washer (B) (step towards divider).
Tighten bolt.
8. Pull the tip of the crop divider to ensure there is no
lateral movement. If necessary, adjust bolts (C) to
tighten crop divider and eliminate lateral movement.
9. Close or install endshields. Refer to 3.2.3 Endshields,
page 33.
3.7.14 Crop Divider Rods
Crop divider rods are used in conjunction with crop dividers. The removable crop divider rods are most useful when
crop is bushy or down. In standing crops, using only crop dividers is recommended.
Table 3.19 Crop Divider Rods Recommended Use
With Divider Rods Without Divider Rods
Alfalfa
Lodged cereal Edible beans
Canola
Peas Milo
Flax
Soybeans
Rice
Grass seed Sudan grass Soybeans
Lentils
Winter forage Standing cereal
OPERATION
