5.4.2 Adding Oil to Hydraulic Reservoir
Follow this procedure to top up the oil in the hydraulic reservoir. To change the hydraulic oil, refer to 5.4.3 Changing
Oil in Hydraulic Reservoir, page 409.
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

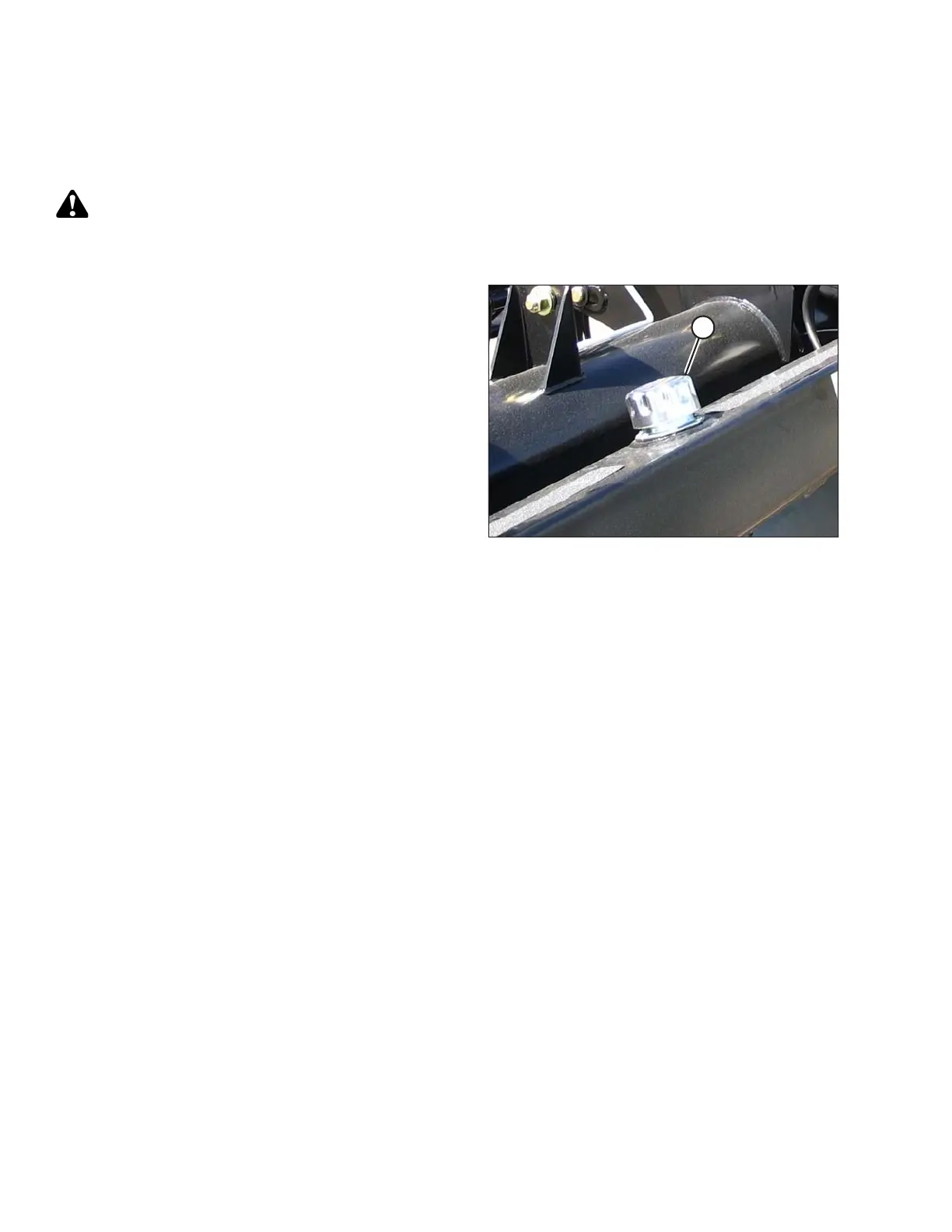

Figure 5.28: Oil Reservoir Filler Cap
1. Shut down the combine, and remove the key from the
ignition.
2. Clean any dirt or debris from the filler cap (A).
3. Loosen and remove the filler cap (A) by turning it
counterclockwise.
4. Add warm oil (approximately 21°C [70°F]) and fill to the
required level. Refer to this manual’s inside back cover
for oil type and specification.
IMPORTANT:
Warm oil will flow through the screen better than cold
oil. Do NOT remove the screen.
5. Reinstall the filler cap (A).
6. Recheck oil level. Refer to 5.4.1 Checking Oil Level in
Hydraulic Reservoir, page 407.
