214683 509 Revision A
Removing Plastic Fingers
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
before making adjustments to machine.
WARNING
To avoid bodily injury from fall of raised reel, always engage reel safety props before going under raised
reel for any reason.

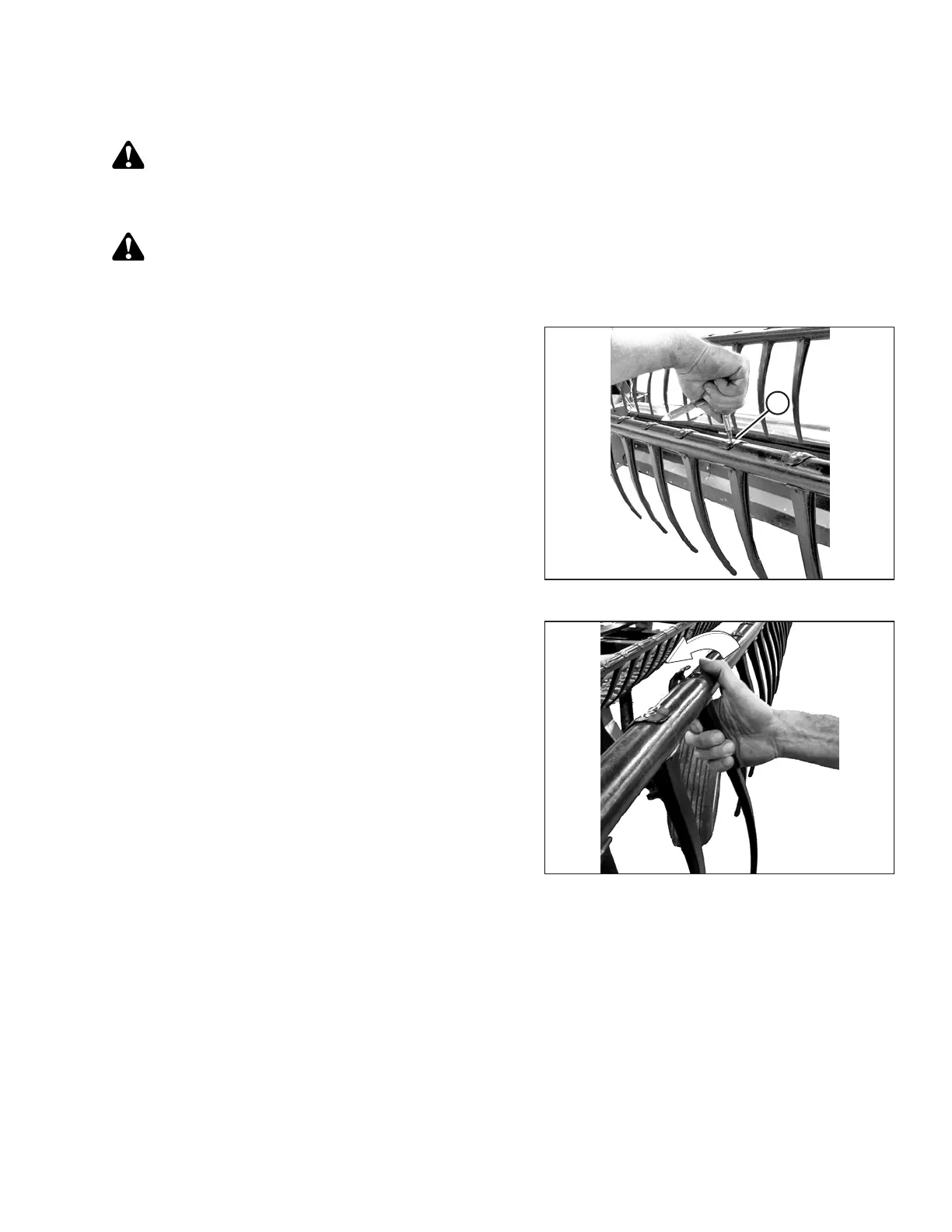

Figure 5.232: Removing Plastic Finger
1. Shut down the engine and remove key from the ignition.
2. Remove screw (A) using a Torx
®
Plus 27 IP socket
wrench.
Figure 5.233: Removing Plastic Finger
3. Push the clip at the top of the finger back towards the
reel tube as shown and remove the finger from the tube.
MAINTENANCE AND SERVICING
