6.4.5 Backsheet Extension Kit
The Backsheet Extension kit (A) helps retain small seeds in shatter prone crops such as canola. They are usually
used with headers equipped with upper cross augers (UCA).
A base kit is required for 9.1 m (30 ft.) FD1 headers and larger. Headers larger than 9.1 m (30 ft.) will need
additional extension kits. Order the following bundles according to your header size:
10194071019407
A

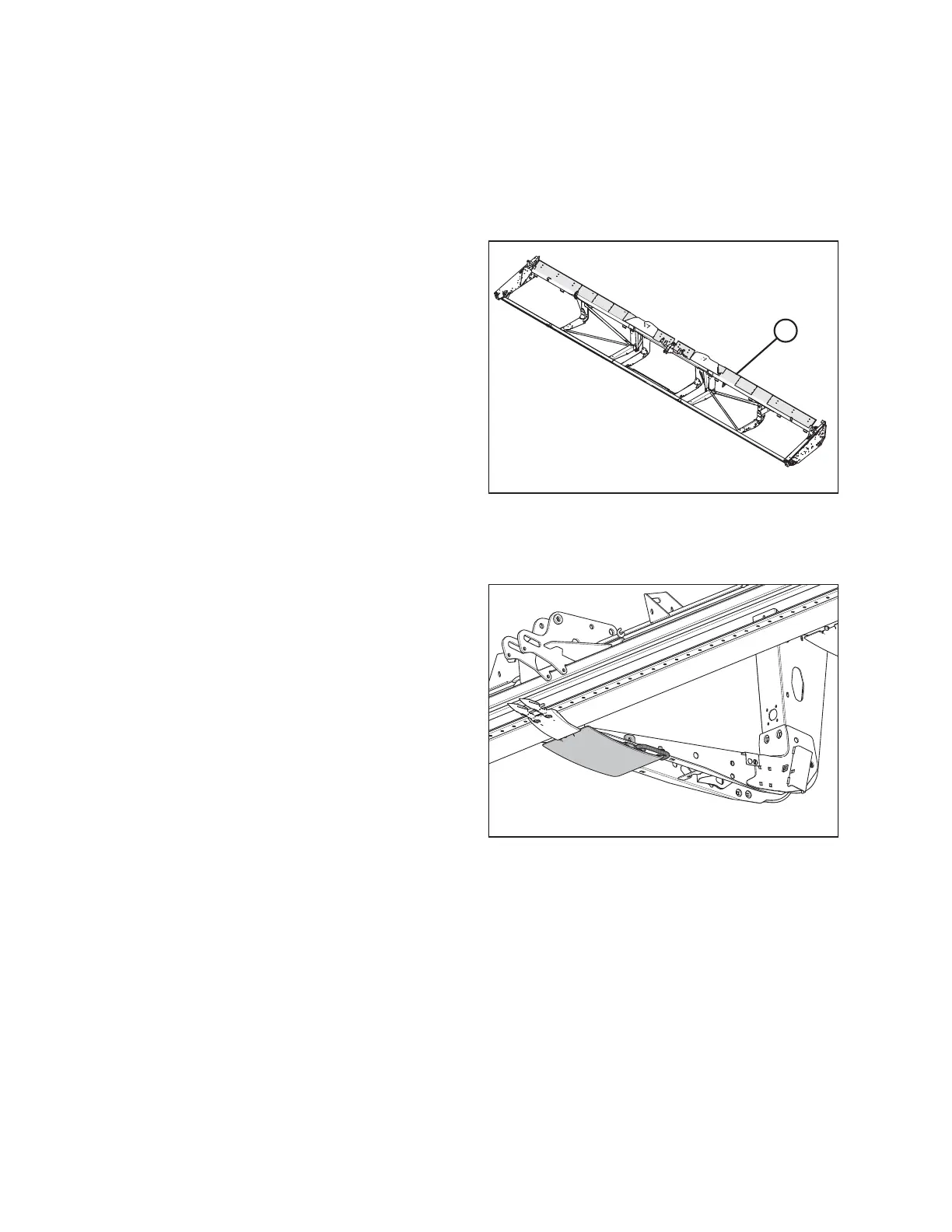

Figure 6.15: FD1 Backsheet Extensions
Order the following bundles according to your FD1 Series
Header size:
• 9.1 m (30 ft.) – MD #B6355 FD1 Backsheet Extension
• 10.7 m (35 ft.) – MD #C2045 FD1 Backsheet Panel
Extensions
• 12.2 m (40 ft.) – MD #C2046 FD1 Backsheet Panel
Extensions
• 13.7 m (45 ft.) – MD #C2047 FD1 Backsheet Panel
Extensions
6.4.6 Center Skid Shoes Kit
1026421
Figure 6.16: Center Skid Shoe
The Center Skid Shoes kit provides improved performance
when cutting low to the ground.
Installation instructions are included in the kit.
MD #B5615
