MacDon FlexDraper FD135 - Disengaging Reel Safety Props

214683 32 Revision A
1001695
A
C
B

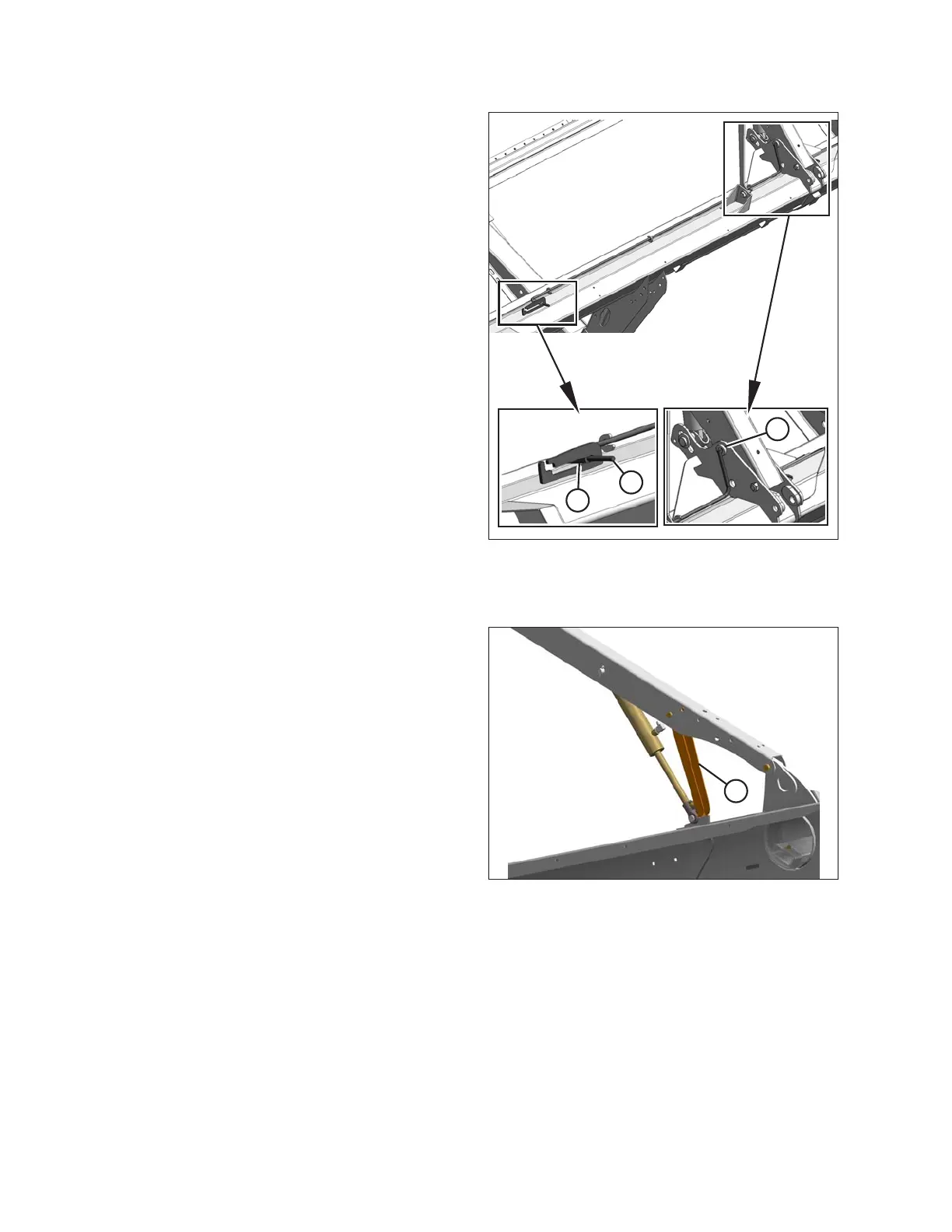

Figure 3.4: Reel Safety Prop – Center Arm
4. Use handle (A) to move lock rod to inboard position (B),
which engages pin (C) under prop.
5. Lower reel until safety props contact the outer arm
cylinder mounts and the center arm pins.
Disengaging Reel Safety Props
1004154
A
Figure 3.5: Reel Safety Prop – Left Side Shown
(Right Opposite)
1. Raise the reel to maximum height.
2. Move the reel safety props (A) back inside the
reel arms.
OPERATION
