4.1.8 Converting from Medium Configuration or Wide Configuration to
Ultra Narrow Configuration
Four kits of either MD #287032or B6400
49
and some hole-drilling are required to convert to the Ultra Narrow
configuration. Extra hardware is included in these kits. Be sure to use the correct hardware in the correct location to
prevent damage and to maximize performance.
1020888
1
2
A
A
A
A
3
B
B

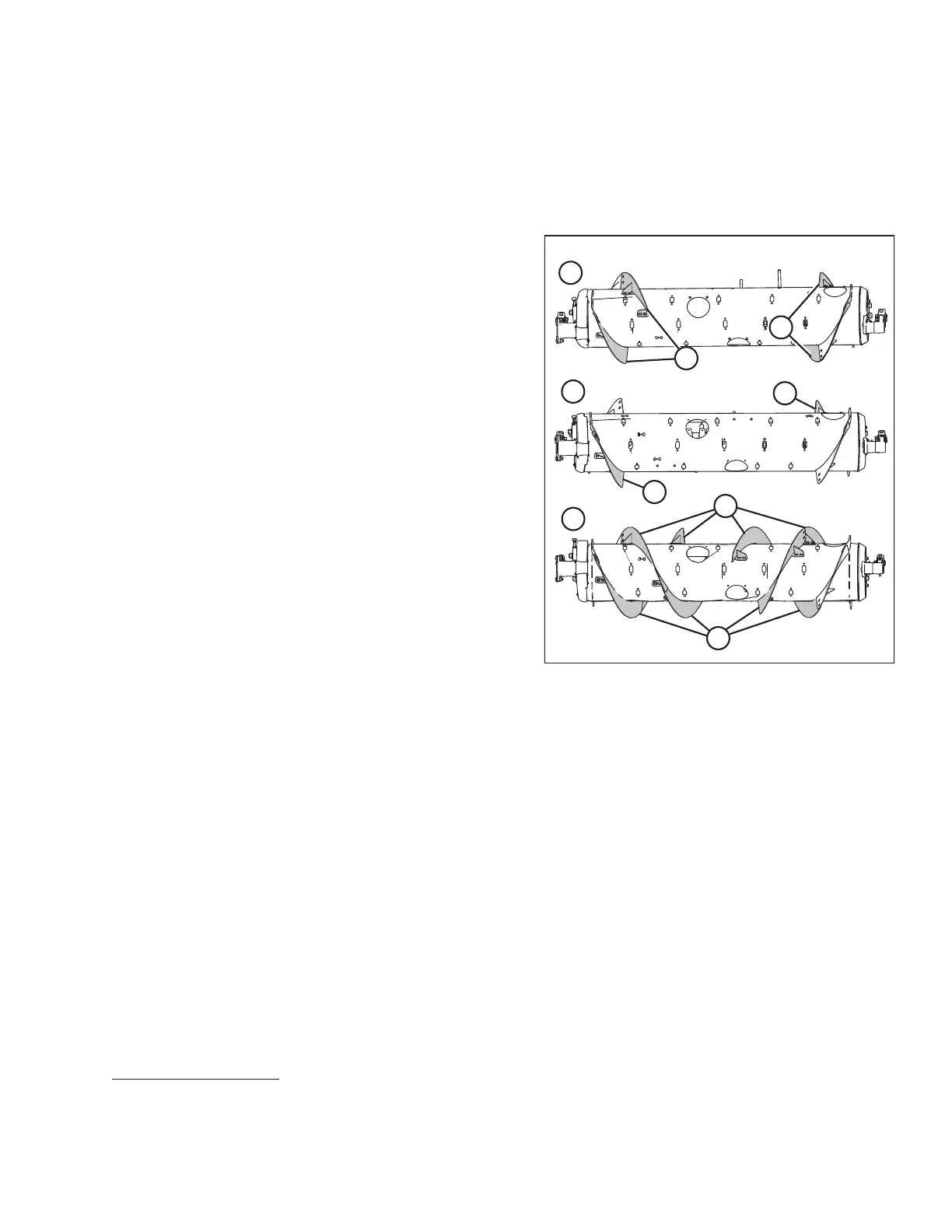

Figure 4.31: Auger Configurations (Rear View)
1 - Medium Configuration 2 - Wide Configuration
3 - Ultra Narrow Configuration
Medium, Wide, and Ultra Narrow auger configurations are
shown at right. When converting to the Ultra Narrow
configuration, existing flightings (A) are removed and new
flightings (B) are installed.
1. If necessary to improve access and ease installation, remove float module from combine. For instructions, refer
to 4 Header Attachment/Detachment, page 307.
NOTE:
Some parts have been removed from the illustrations for clarity.
HEADER ATTACHMENT/DETACHMENT
49. MD #287032 is available only through MacDon Parts. B6400 is available only through Whole Goods. Both kits
contain wear-resistant flightings.
