MacDon FlexDraper FD135 - Page 179

214683 155 Revision A
1003672
A

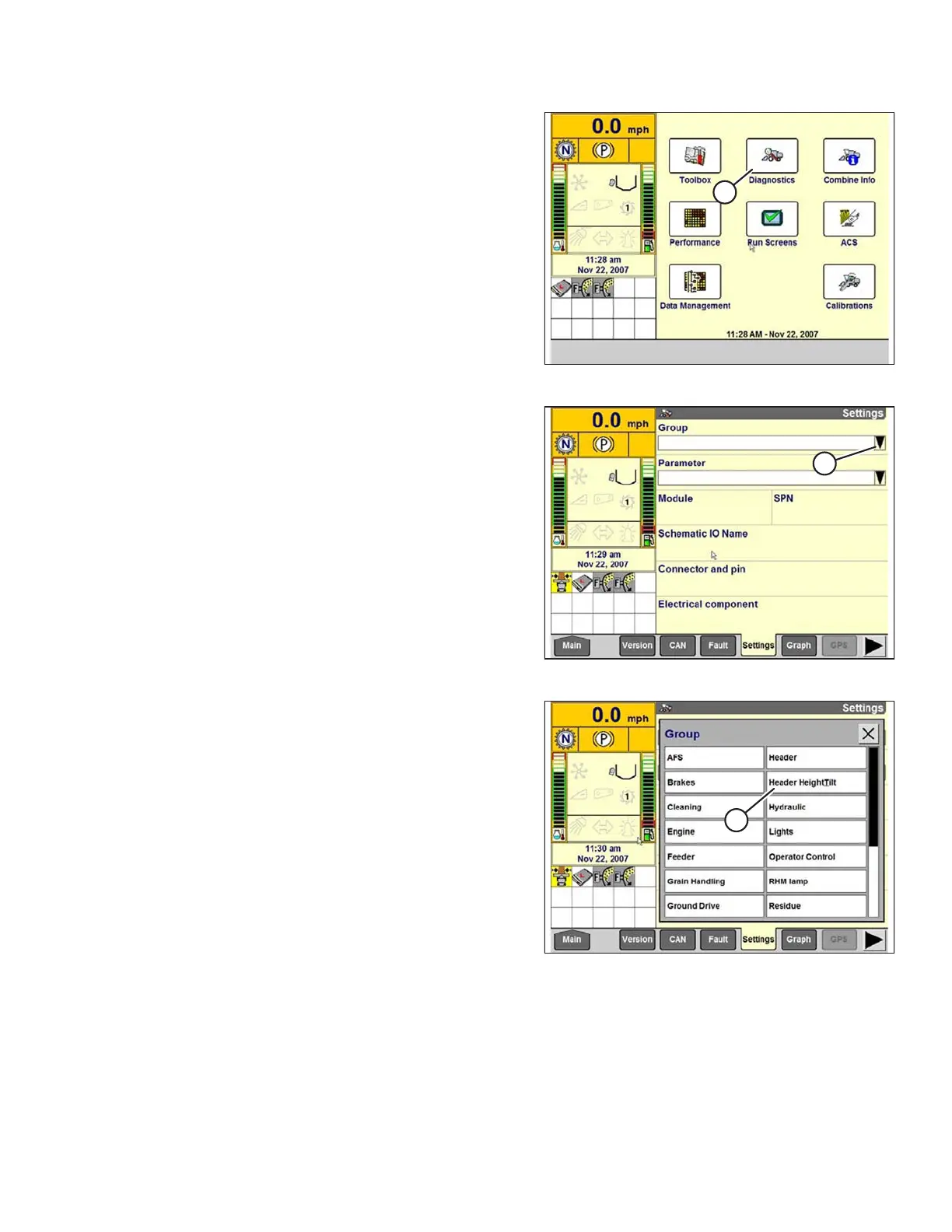

Figure 3.220: Case IH Combine Display
4. Ensure header float is unlocked.
5. Select DIAGNOSTICS (A) on the MAIN page. The
DIAGNOSTICS page opens.
6. Select SETTINGS. The SETTINGS page opens.
1003673
A
Figure 3.221: Case IH Combine Display
7. Select the GROUP arrow (A). The GROUP dialog
box opens.
1003674
A
Figure 3.222: Case IH Combine Display
8. Select HEADER HEIGHT/TILT (A). The PARAMETER
page opens.
OPERATION
