MacDon FlexDraper FD135 - Page 276

214683 252 Revision A
1003688
A
B

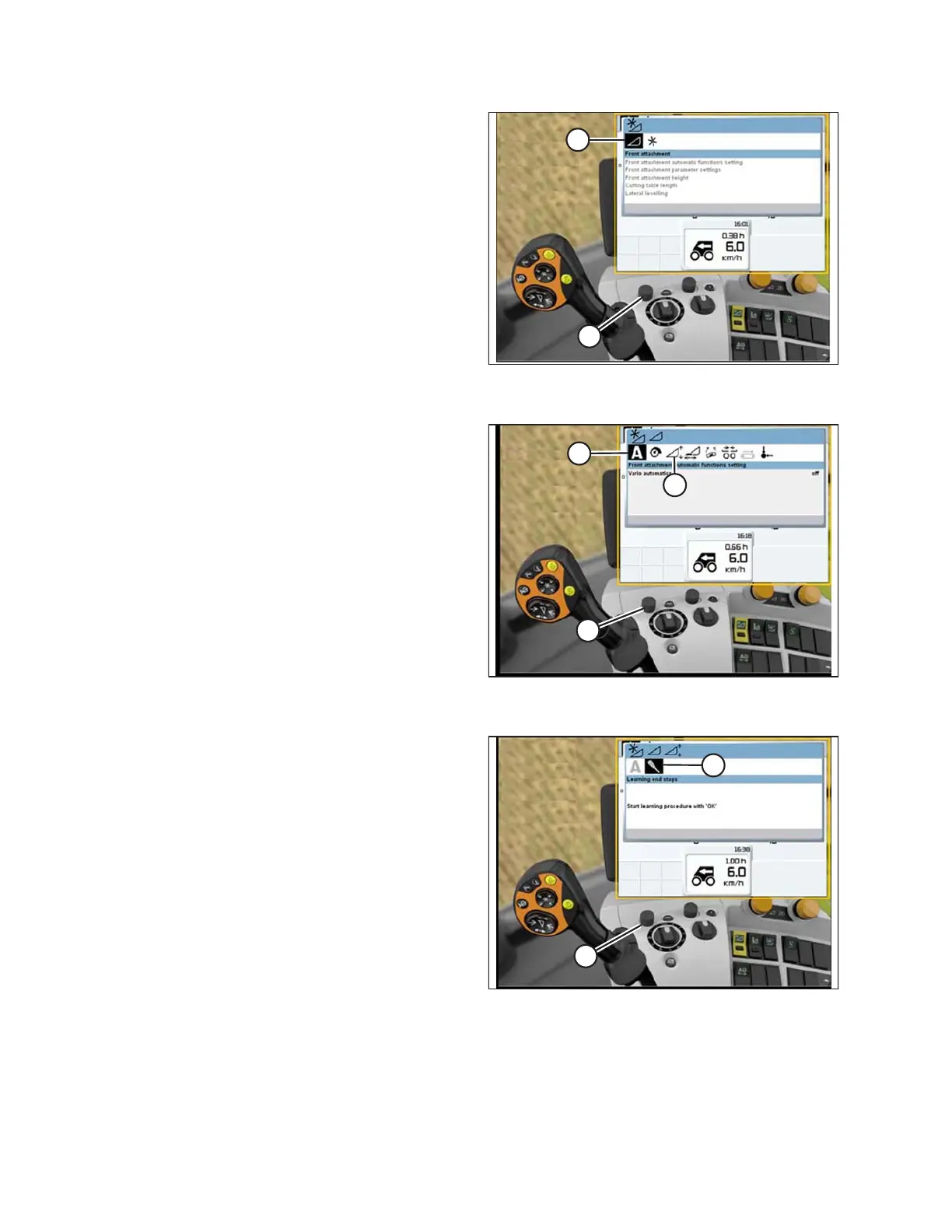

Figure 3.437: CLAAS Combine Display,
Console, and Control Handle
5. Use control knob (A) to highlight the icon that
resembles a header with up and down arrows (not
shown), and press control knob (A) to select it. The
highlighted header icon (B) will be displayed on
the screen.
1003687
B
A
C
Figure 3.438: CLAAS Combine Display,
Console, and Control Handle
6. Use control knob (A) to highlight the icon that
resembles a header with up and down arrows (C), and
press control knob (A) to select it.
1003689
A
B
Figure 3.439: CLAAS Combine Display,
Console, and Control Handle
7. Use control knob (A) to highlight the icon that
resembles a screwdriver (B).
8. Engage the combine separator and feeder house.
9. Press control knob (A) and a progress bar chart will
appear.
OPERATION
