214683 333 Revision A

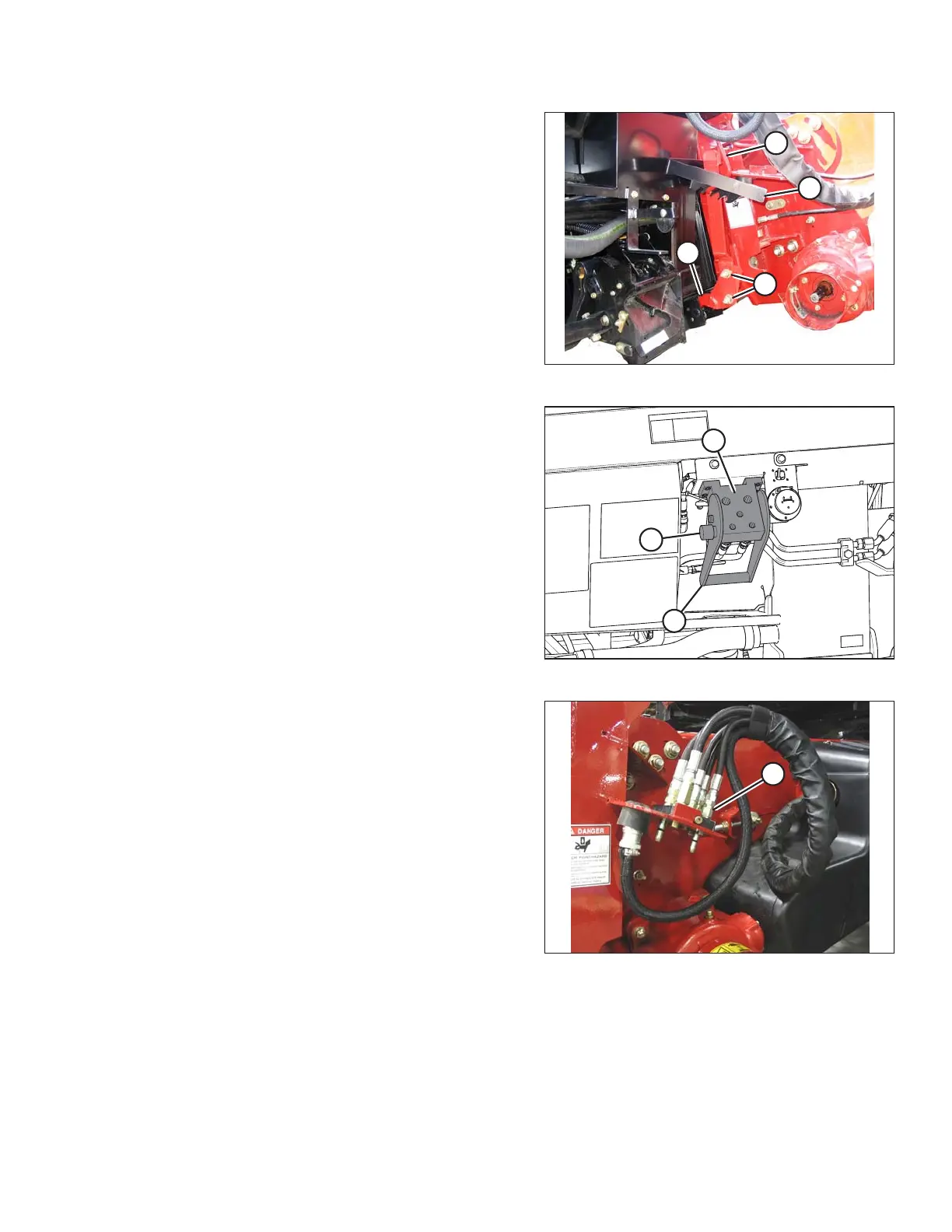

Figure 4.50: Combine and Float Module
5. On the left side of the feeder house, lift lever (A) on the
float module and push handle (B) on the combine to
engage locks (C) on both sides of the feeder house.
6. Push down on the lever (A) so the slot in the lever
engages the handle and locks the handle in place.
7. If lock (C) does not fully engage the pin on the float
module, loosen bolts (D) and adjust lock.
Retighten bolts.
Figure 4.51: Float Module Receptacle
8. Open the cover on the receptacle (A) located on the left
side of the float module.
9. Press the lock button (B) and pull the handle (C) to the
fully-open position.
10. Clean the receptacle mating surfaces.
Figure 4.52: Combine Connectors
11. Remove the hydraulic quick coupler (A) from the
combine, and clean the mating surfaces.
HEADER ATTACHMENT/DETACHMENT
