MacDon FlexDraper FD135 - Page 367

214683 343 Revision A
1016869
A
B

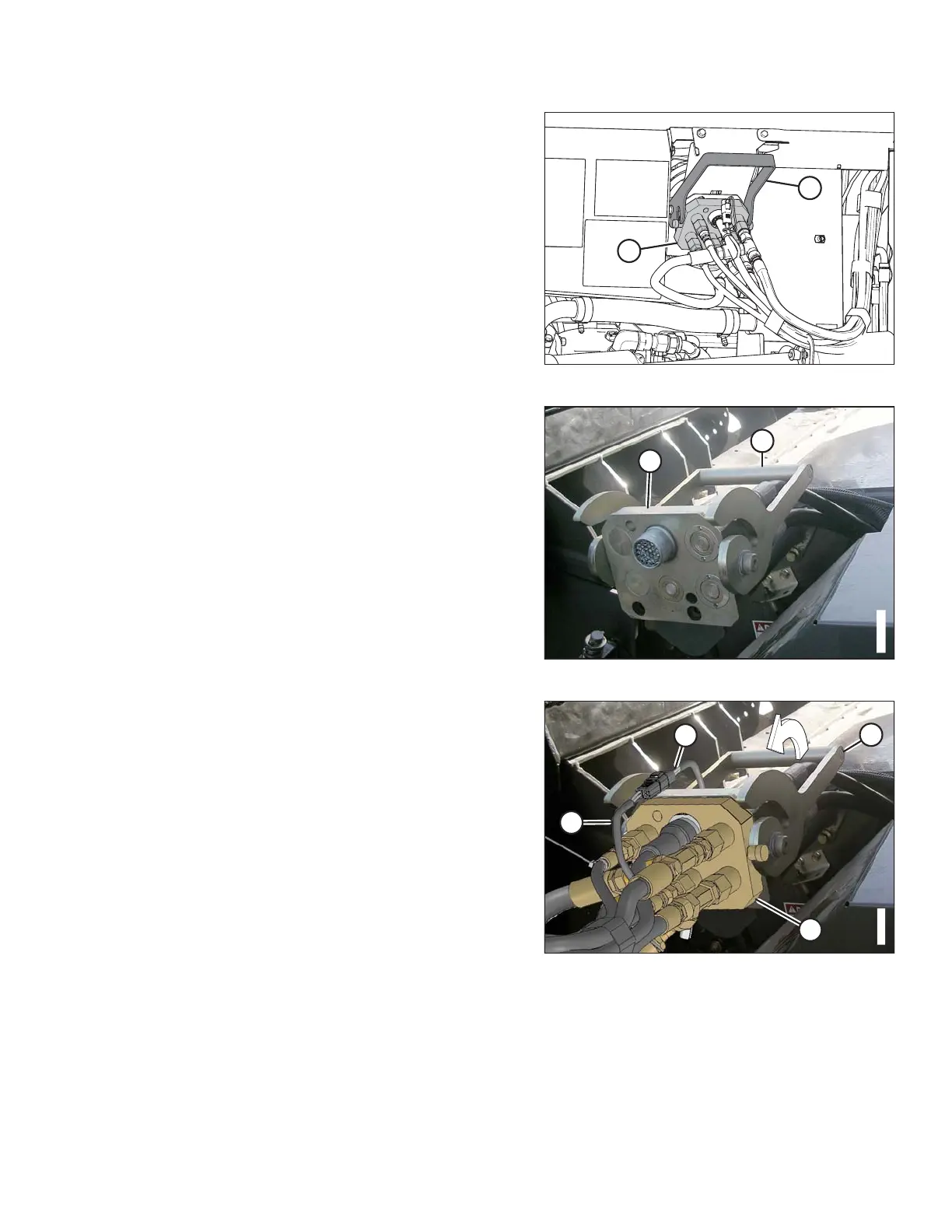

Figure 4.73: Float Module Multicoupler
9. Raise the handle (A) to release the multicoupler (B)
from the float module.
1001492
B
A
Figure 4.74: Combine Receptacle
10. Push the handle (A) on the combine to the fully-open
position.
11. Clean the mating surfaces of the multicoupler (B) and
receptacle if necessary.
1001493
B
A
C
D
Figure 4.75: Multicoupler
12. Position the multicoupler (A) onto the combine
receptacle, and pull the handle (B) to fully engage the
multicoupler into the receptacle.
13. Connect the reel fore-aft/header tilt selector harness (C)
to the combine harness (D).
HEADER ATTACHMENT/DETACHMENT
