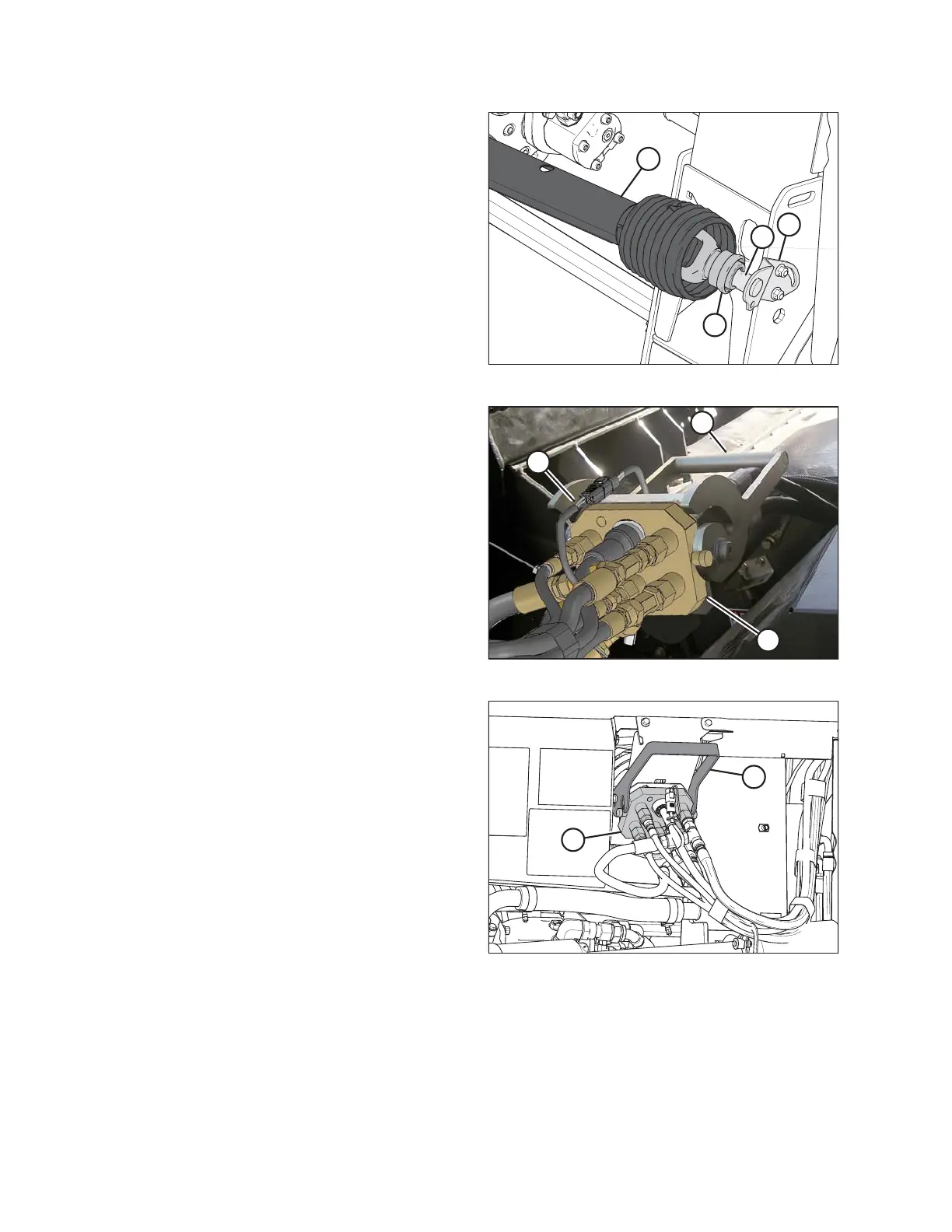

Figure 4.80: Driveline
5. Store the driveline (A) on the driveline support
bracket (B) by pulling back the collar (C) on the driveline
and fitting it over the support bracket weldment (D).
Release the collar so it locks into place over the
weldment.
1001496
A
B
C
Figure 4.81: Multicoupler
6. Disconnect the harness at the connector (A).
7. Move the handle (B) on the combine multicoupler to the
full open position to release the multicoupler (C) from
the combine.
1016869
A
B
Figure 4.82: Float Module Multicoupler
8. Raise the handle (A) on the float module, and place the
multicoupler (B) on the float module receptacle.
9. Lower the handle (A) to lock the multicoupler (B).
