214683 353 Revision A

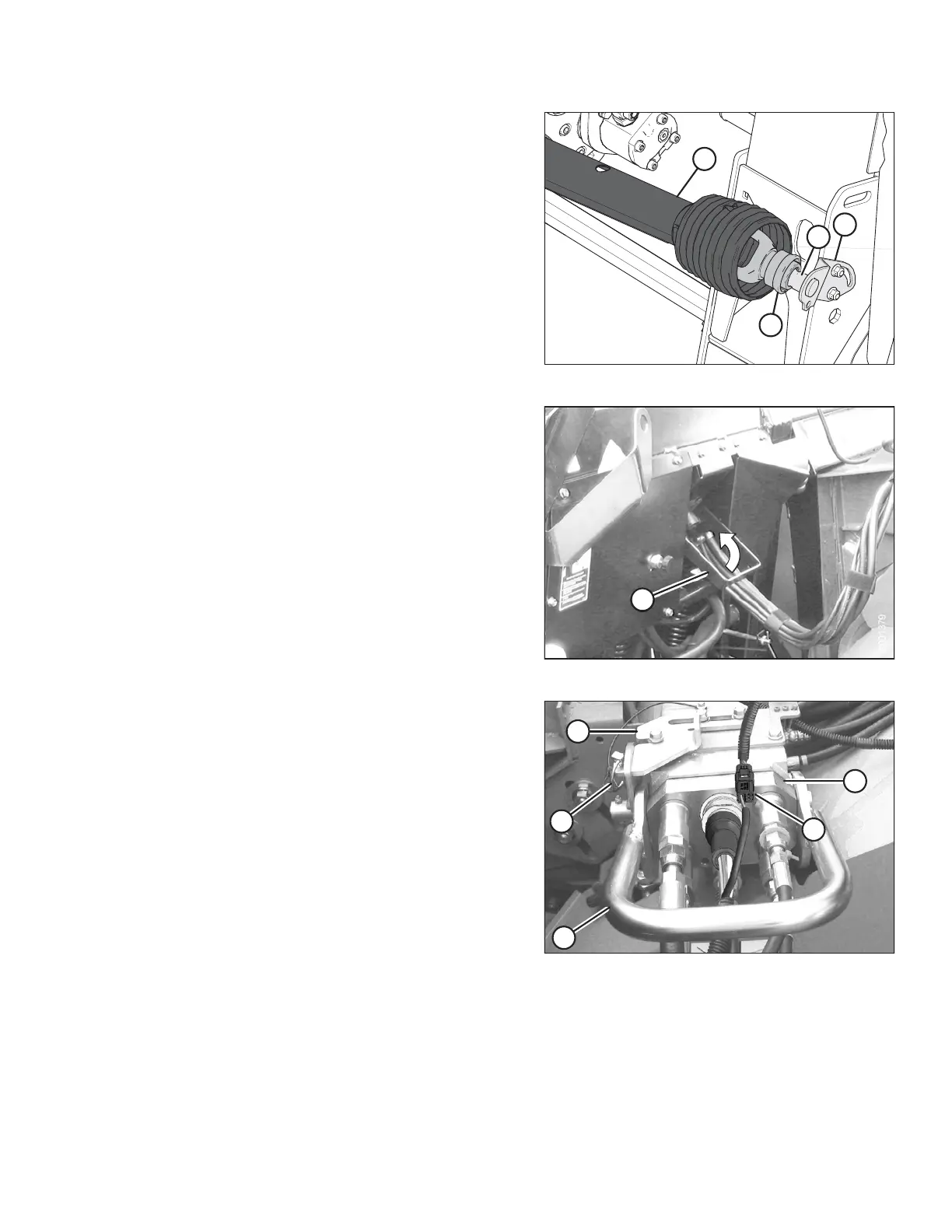

Figure 4.96: Driveline
5. Store the driveline (A) on the driveline support
bracket (B) by pulling back the collar (C) on the driveline
and fitting it over the support bracket weldment (D).
Release the collar so it locks into place over the
weldment.
Figure 4.97: Multicoupler Storage
6. Lift the handle (A) on the float module.
Figure 4.98: Multicoupler
7. Disconnect the harness (A) from the combine
connector.
8. Remove the lynch pin (B) and slide the lock (C) to
release the handle (D).
9. Lift the handle (D) to full vertical position to release the
multicoupler (E) from the combine.
HEADER ATTACHMENT/DETACHMENT
