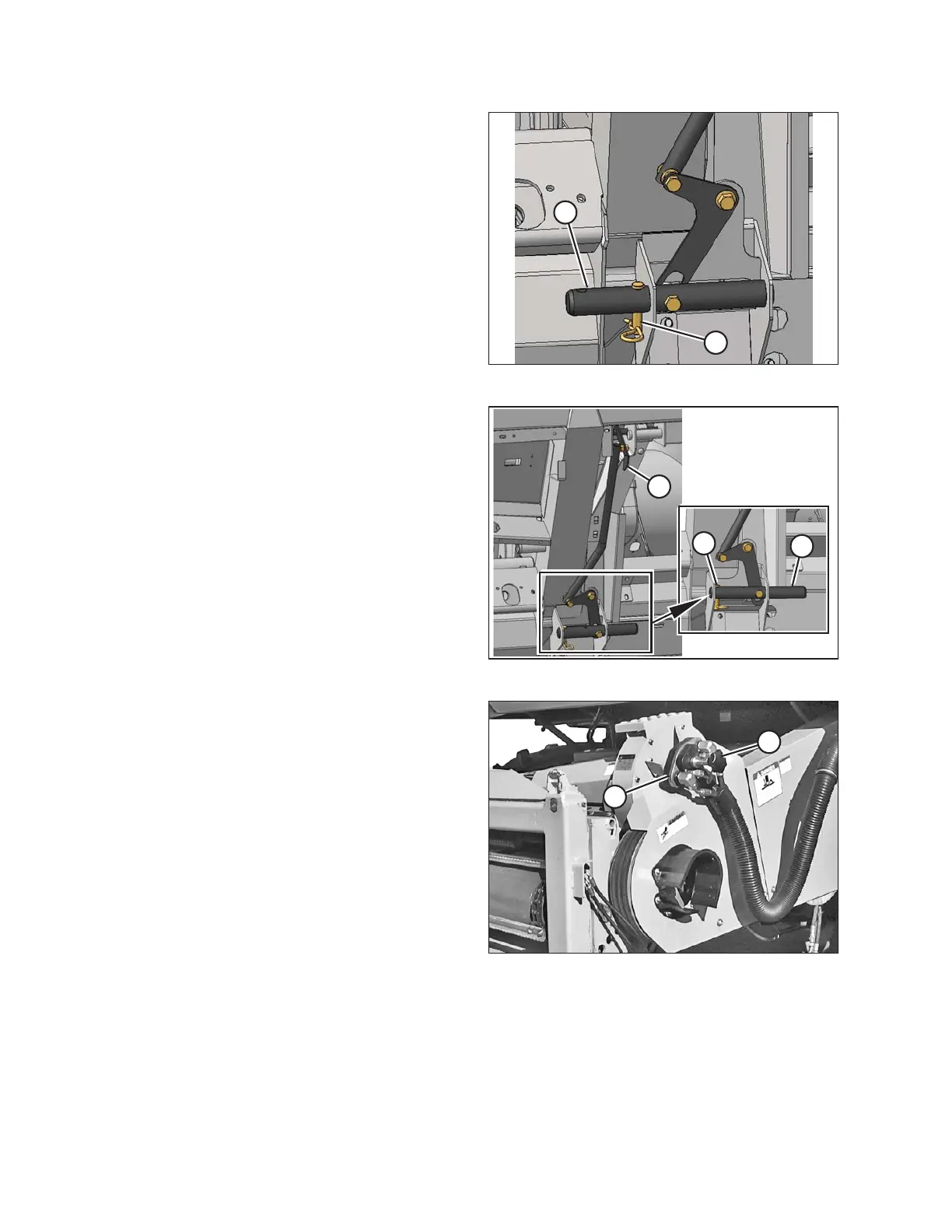

Figure 4.104: Locking Pins
5. Remove the locking pin (B) from the float module
pin (A).
1001536
A
B
C
Figure 4.105: Engaging Pins
6. Lower the handle (A) to engage the float module
pins (B) into the feeder house. Reinsert the locking
pin (C) and secure with the hairpin.
7. Stop the engine and remove the key from the ignition.
1001140
A
B
Figure 4.106: Combine Coupler
8. Unscrew the knob (A) on the combine coupler (B) to
release the coupler from the combine receptacle and
clean the coupler.
