214683 513 Revision A

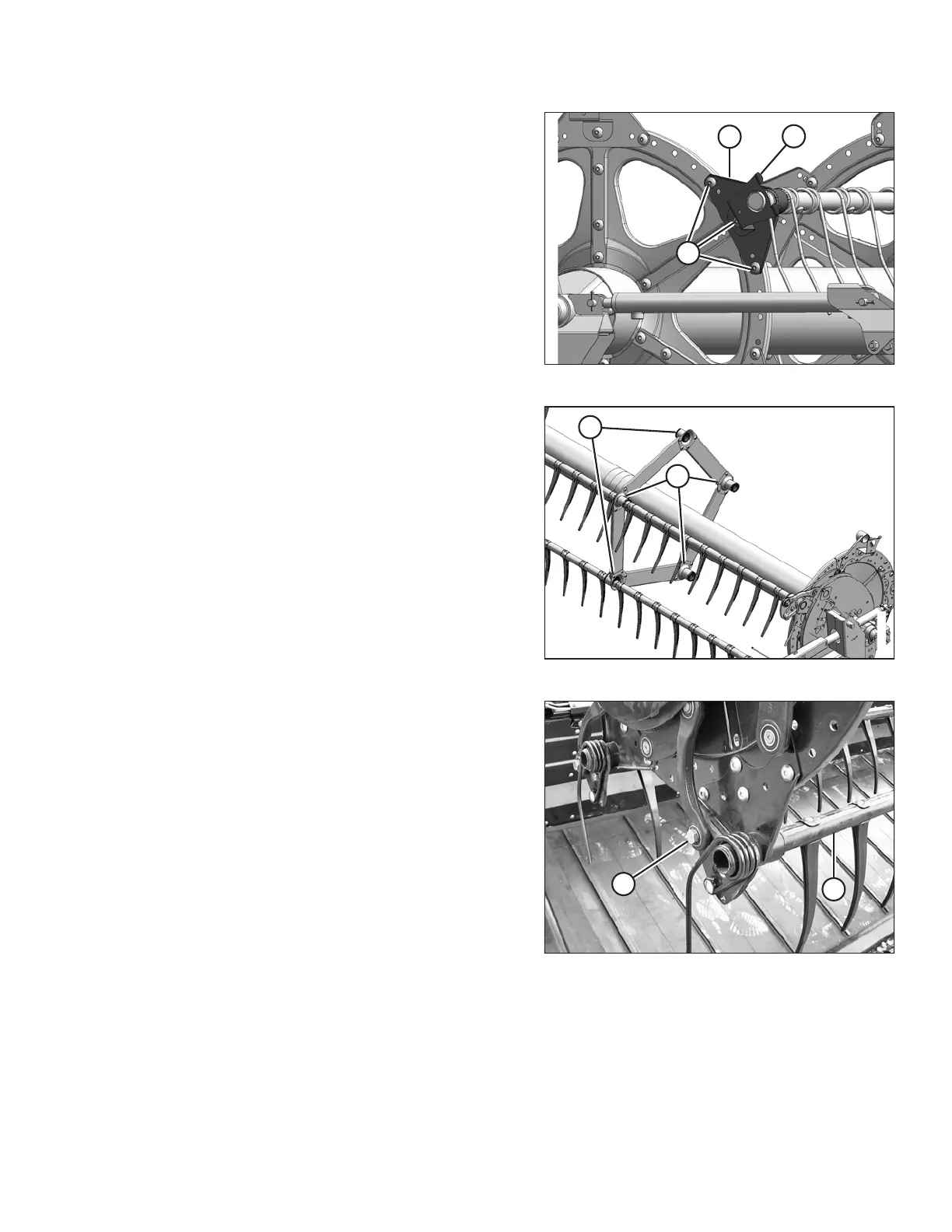

Figure 5.240: Tail End
9. Remove the reel endshields and endshield support (C)
from the tail end of the reel at the applicable tine tube
location.
NOTE:
There are no endshields on the center disc.
10. Remove the bolts (A) securing the tine tube arms (B) to
the tail and center discs.
Figure 5.241: Tine Tube Supports
11. Release the bushing clamps or disconnect the support
channels from the tine tube support (if installed)
depending on which tine tube is being moved. Three
tine tubes (A) require channel disconnection and two
tine tubes (B) require only bushing clamp removal.
Figure 5.242: Cam End
12. Remove bolt (A) from the cam linkage so the tine
tube (B) is free to rotate.
MAINTENANCE AND SERVICING
