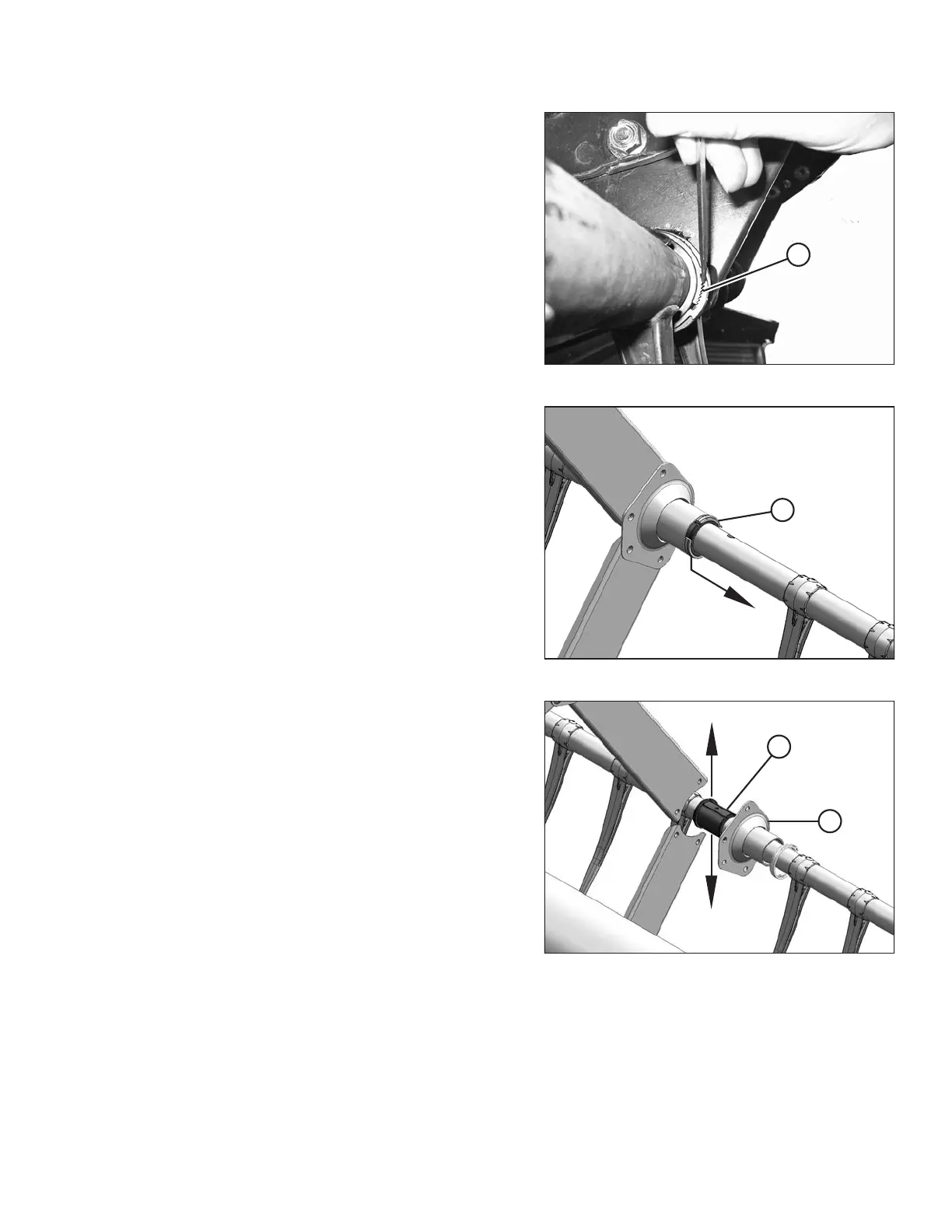

Figure 5.246: Bushing Clamp
19. Release the bushing clamps (A) using a small
screwdriver to separate the serrations.
Figure 5.247: Bushing Clamp
20. Move the clamps (A) off the bushings.
Figure 5.248: Support
21. On each reel, there are three right-facing supports (A).
Slide the support off the bushing halves (B).
