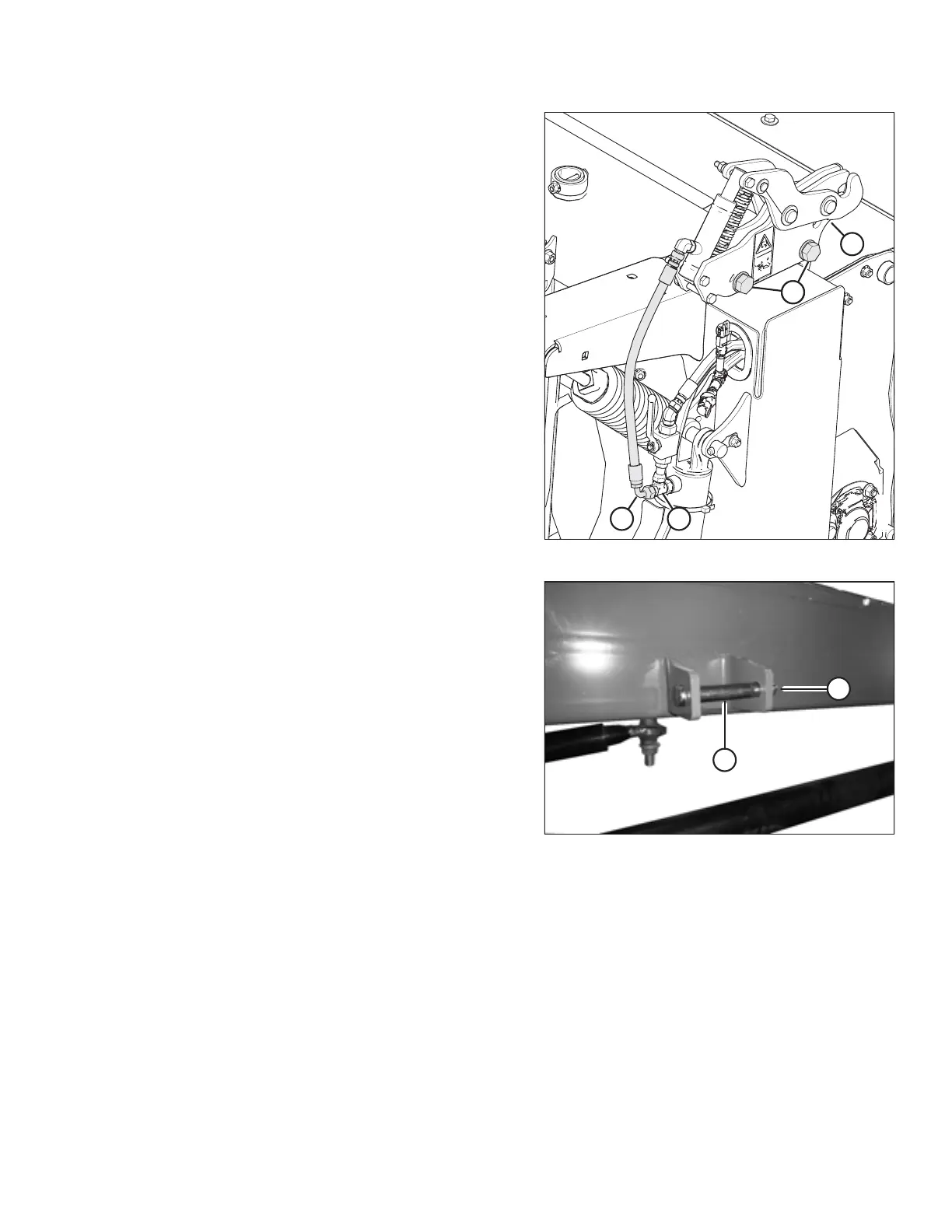

Figure 3.6: Latch Assembly
11. Install latch assembly (A) onto the carrier frame as shown,
and secure with the M20 bolts, washers, and nuts (B)
retained in Step 10, page 14.DoNOT fully tighten bolts;
adjustment of the latch assembly may be necessary.
12. Attach hydraulic hose (C) from the latch assembly to tee
fitting (D) as shown.
Figure 3.7: Latch Pin
13. Retrieve clevis pin (A) (MD #120333) and cotter pin (B)
(MD #18648) from the shipping bag and install onto the
hitch bracket at the side of the hitch.
INSTALLATION INSTRUCTIONS
