5.3 Transport Lighting
5.3.1 Lighting – With Road-Friendly Transport
™™
Option
1015026
A
B

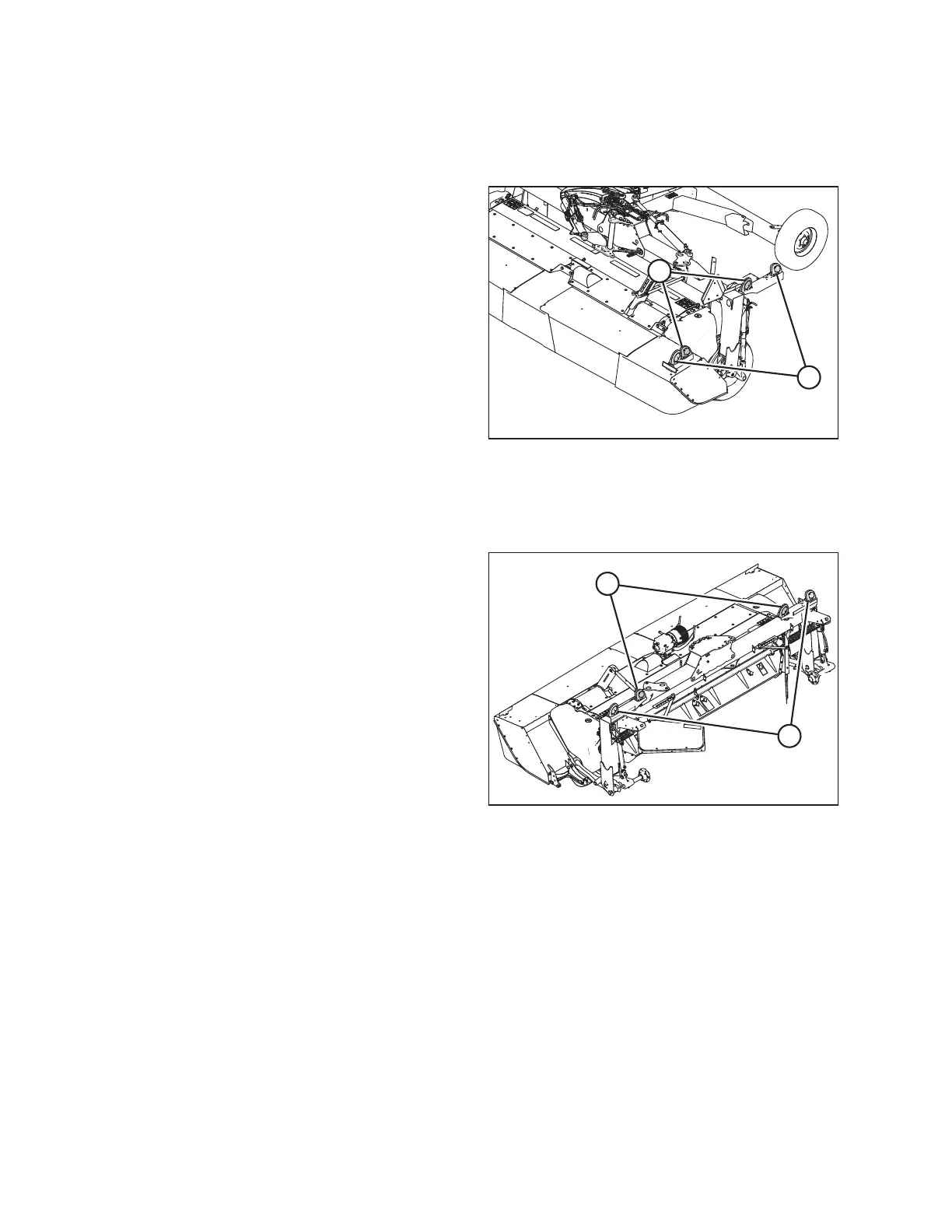

Figure 5.4: Lighting Locations – with Road-Friendly
Transport
™™
The rotary disc pull-type is equipped with two bidirectional
amber lights (A) that function as flashing hazard lights and turn
signals.
Red lights (B) located on the inboard side of the amber lights
function as both tail and brake lights. Refer to the rotary disc
pull-type operator’s manual for information about connecting
the electrical harness to the tractor.
Amber reflective tape is applied to various locations on the
front and sides of the rotary disc pull-type, hitch, and carrier
frame. Red reflective tape is applied to the rear of the
rotary disc pull-type.
5.3.2 Lighting – Without Road-Friendly Transport
™™
Option
1015020
B
A
Figure 5.5: Lighting Locations
The rotary disc pull-type is equipped with two bidirectional
amber lights (A) located on the outboard edges of the carrier
frame that function as flashing hazard lights and turn signals.
Red lights (B) located on the inboard side of the amber lights
function as both tail and brake lights. Refer to the rotary disc
pull-type operator’s manual for information about connecting
the electrical harness to the tractor.
Amber reflective tape is applied to various locations on the
front and sides of the rotary disc pull-type, hitch, and carrier
frame. Red reflective tape is applied to various locations on the
rotary disc pull-type.
