MacDon R113 - Connecting Right Transport Harness

214633 35 Revision C
1014366
A
B
C
D
E

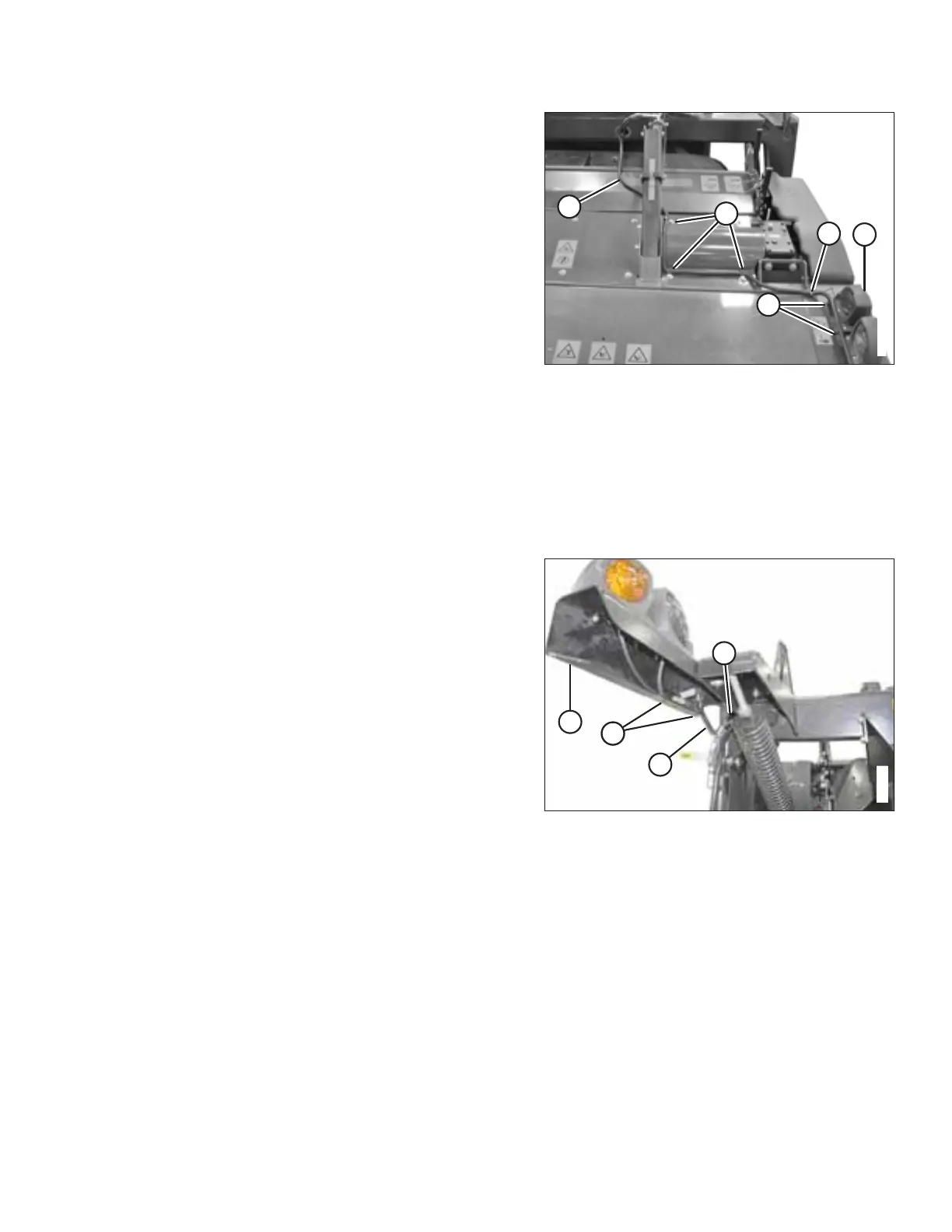

Figure 3.57: Harness Routing – R113 Shown, R116
Similar
8. Route harness (A) to light (B) on header as shown.
9. Retrieve p-clips(MD #135235), plastic clamps (MD #184301)
, and cable ties (MD #21763) from the shipping bag.
10. Remove bolts (C) on header at locations shown.
11. Secure harness (A) with p-clips (MD #135235), existing bolts
(C), and plastic clamp (D) (MD #184301) into existing holes.
NOTE:
R113: Harness for rotary disc pull-type is secured with one
plastic clamp (D) (MD #184301).
NOTE:
R116: Harness for rotary disc pull-type is secured with two
plastic clamps (MD #184301).
12. Secure harness (A) to the light bracket with two
cable ties (E) (MD #21763).
13. Push any excess harness into the carrier frame.
14. Connect plug P401 and P404 into light (B).
3.4.3 Connecting Right Transport Harness
1030547
A
C
C
B
D
Figure 3.58: Transport Light
1. Route transport harness (A) from opening (B) into light
bracket (C) and plug it into the light connectors.
2. Secure harness (A) to the light bracket with two cable
ties (D) (MD #21763).
3. Push any excess harness into the carrier frame.
INSTALLATION INSTRUCTIONS
