MacDon R113 - Installing Transport Swing Cylinder

214633 22 Revision C
1014950
A
B
C
D

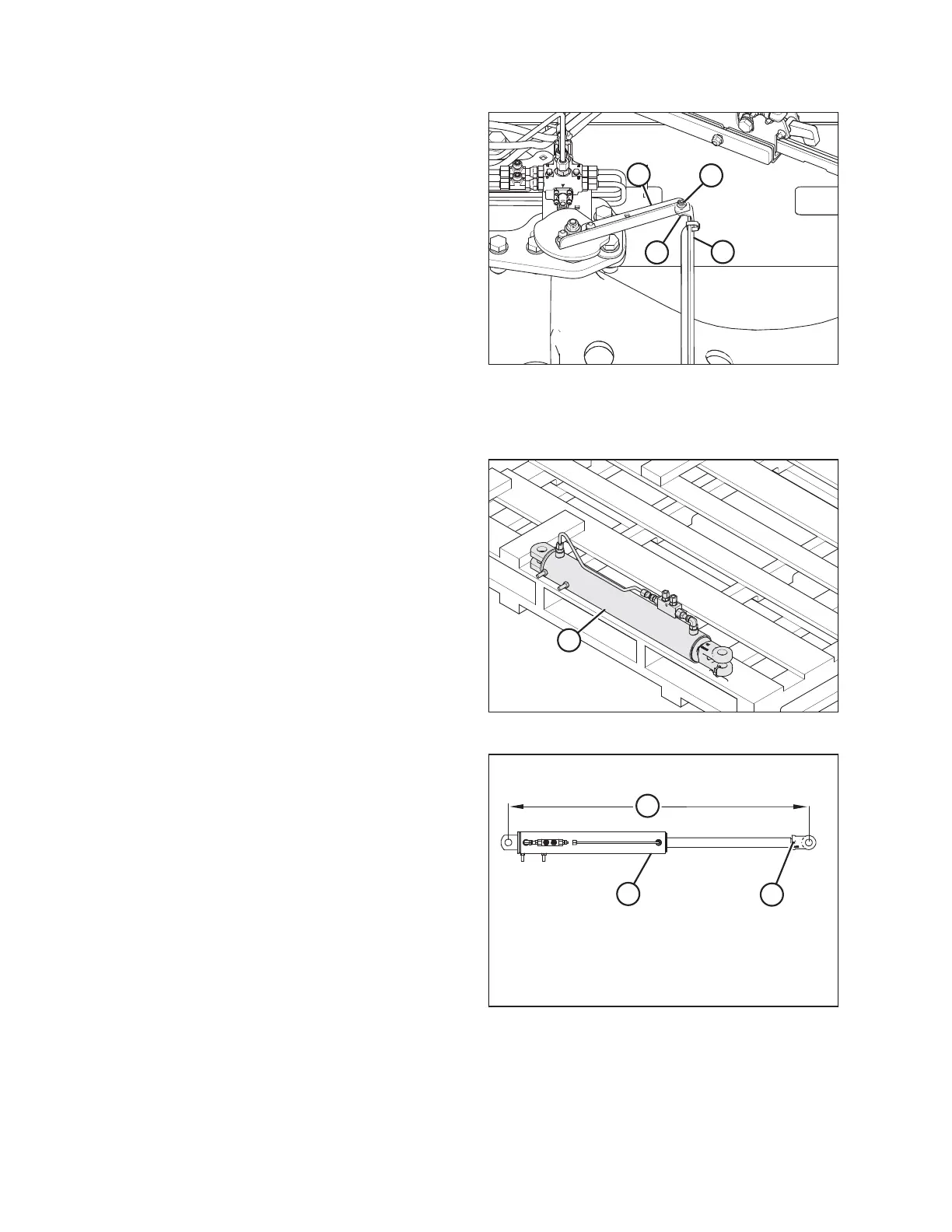

Figure 3.26: Support Plate
8. Remove nut (A) from support (D).
9. Install bolt (B) through support (D) and support (C), and
then reinstall nut (A).
3.2.5 Installing Transport Swing Cylinder
1014867
A
Figure 3.27: Transport Swing Cylinder
1. Remove the shipping bag from the pallet.
2. Retrieve two clevis pins (MD # 281101) and two cotter pins
(MD #18609) from the shipping bag.
3. Support transport swing cylinder (A). Cut the straps
securing the cylinder to the pallet.
1016379
A
B
C
Figure 3.28: Transport Swing Cylinder
IMPORTANT:
Prime transport swing cylinder (A) BEFORE installing it on
the carrier frame.
4. To prime the cylinder, use a hydraulic power pack or tractor
hydraulics. Extend and retract transport swing cylinder (A)
until all the air has been removed. Extend transport
cylinder (A) to dimension (B) of 142 cm (56 in.)
between center of pins.
NOTE:
If you need to adjust the cylinder length, remove bolt (C)
that secures the clevis end. Rotate the clevis to lengthen or
shorten distance between pins (B). When the cylinder
length is correct, reinstall bolt (C) to secure the clevis end.
