MacDon R113 - Connecting Selector Valve and Transport Lighting Module; Installing Remote Control

214633 36 Revision C

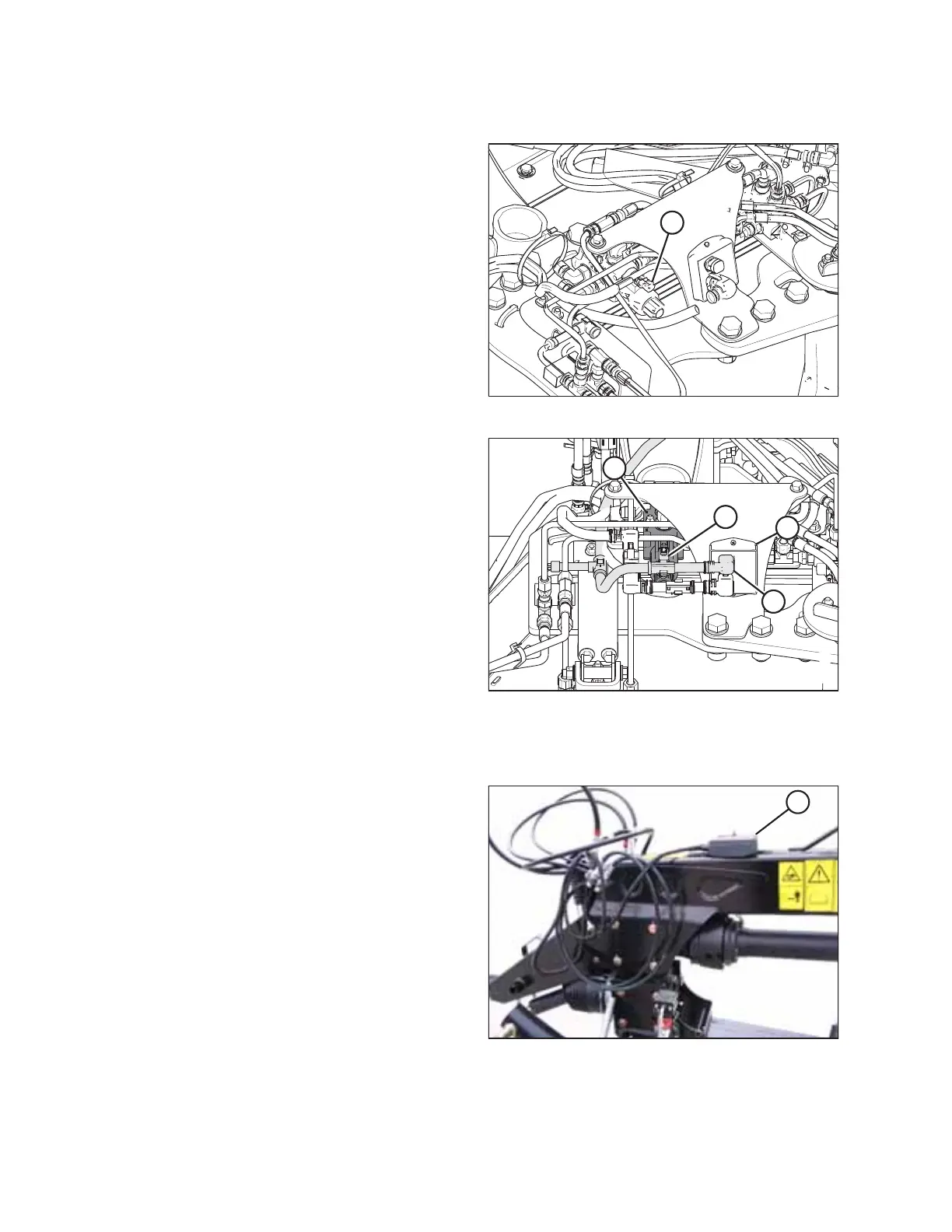

3.4.4 Connecting Selector Valve and Transport Lighting Module
1030152
A
Figure 3.59: Connector Plug
1. Remove valve connector plug (A).
1022681
A
B
C
D
Figure 3.60: Selector Valve Supply
2. Locate plugs P102 (A) and P502 (B) on the transport
harness at the header end of the hitch. Route plugs
P102 (A) and P502 (B) towards selector valve (C).
3. Connect plug P502 (B) to the receptacle on selector
valve (C).
4. Connect plug P102 (A) to the upper input receptacle on
transport lighting module (D).
3.4.5 Installing Remote Control
1015230
A
Figure 3.61: Remote Control on Top of Hitch
1. Retrieve remote control (A) with wiring harness.
2. Place remote control (A) on hitch temporarily.
INSTALLATION INSTRUCTIONS
