3.7 Priming the Hitch Swing Cylinder
NOTE:
The hitch swing cylinder must be primed before it is connected to the rear arm link.
1023717
A
B

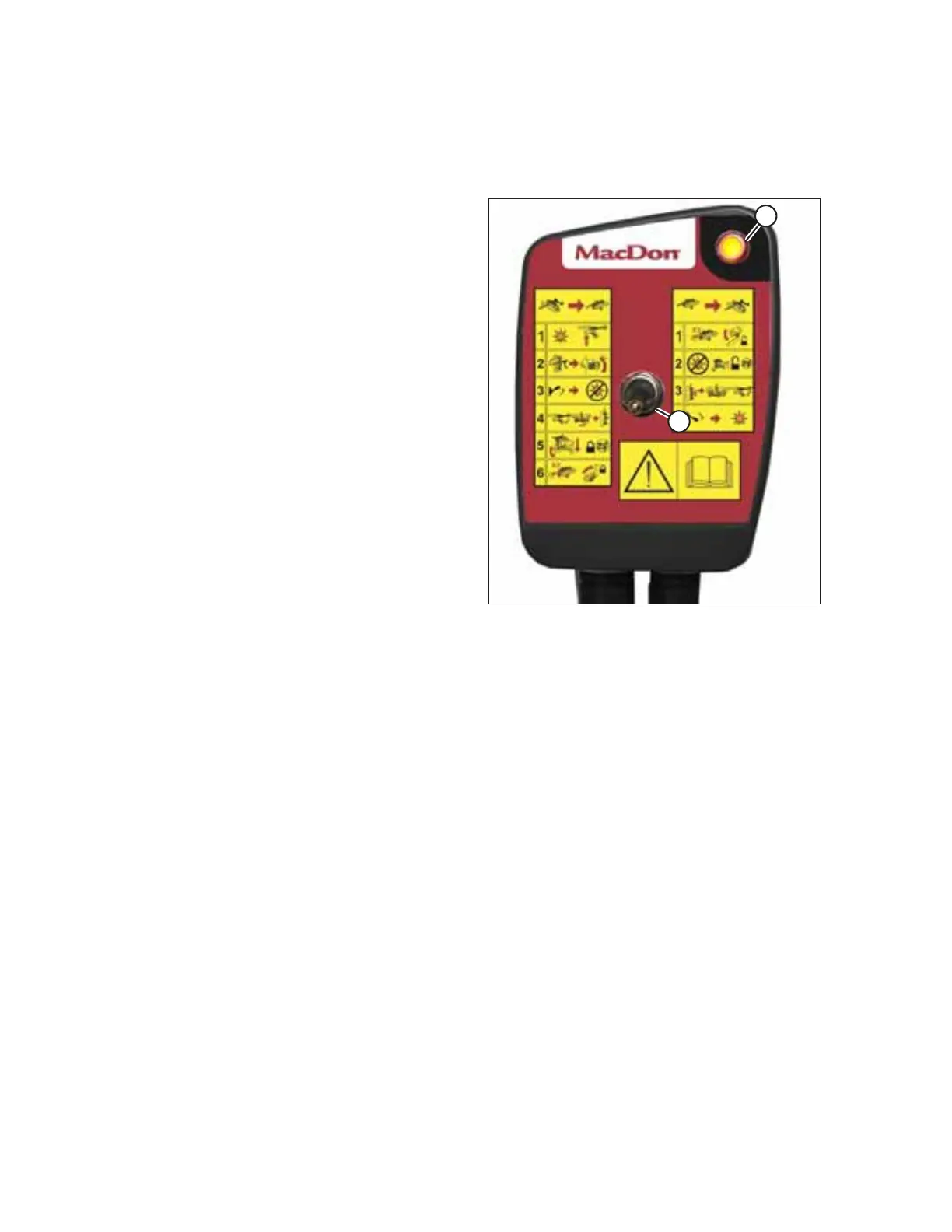

Figure 3.71: Remote Control
1. Move the transport switch on the remote control to lower
position (B) and ensure that light (A) is illuminated. The
hitch swing circuit will now be active.
