3.3 Installing Hydraulics
This section explains how to install the transport hydraulic control system.
3.3.1 Installing Hydraulic Lines and Hoses
NOTE:
The cover support bracket has been removed from the illustrations for clarity.
NOTE:
Refer to the pull-type operator’s manual or technical manual for hydraulic fitting installation details.
1030578
A
B

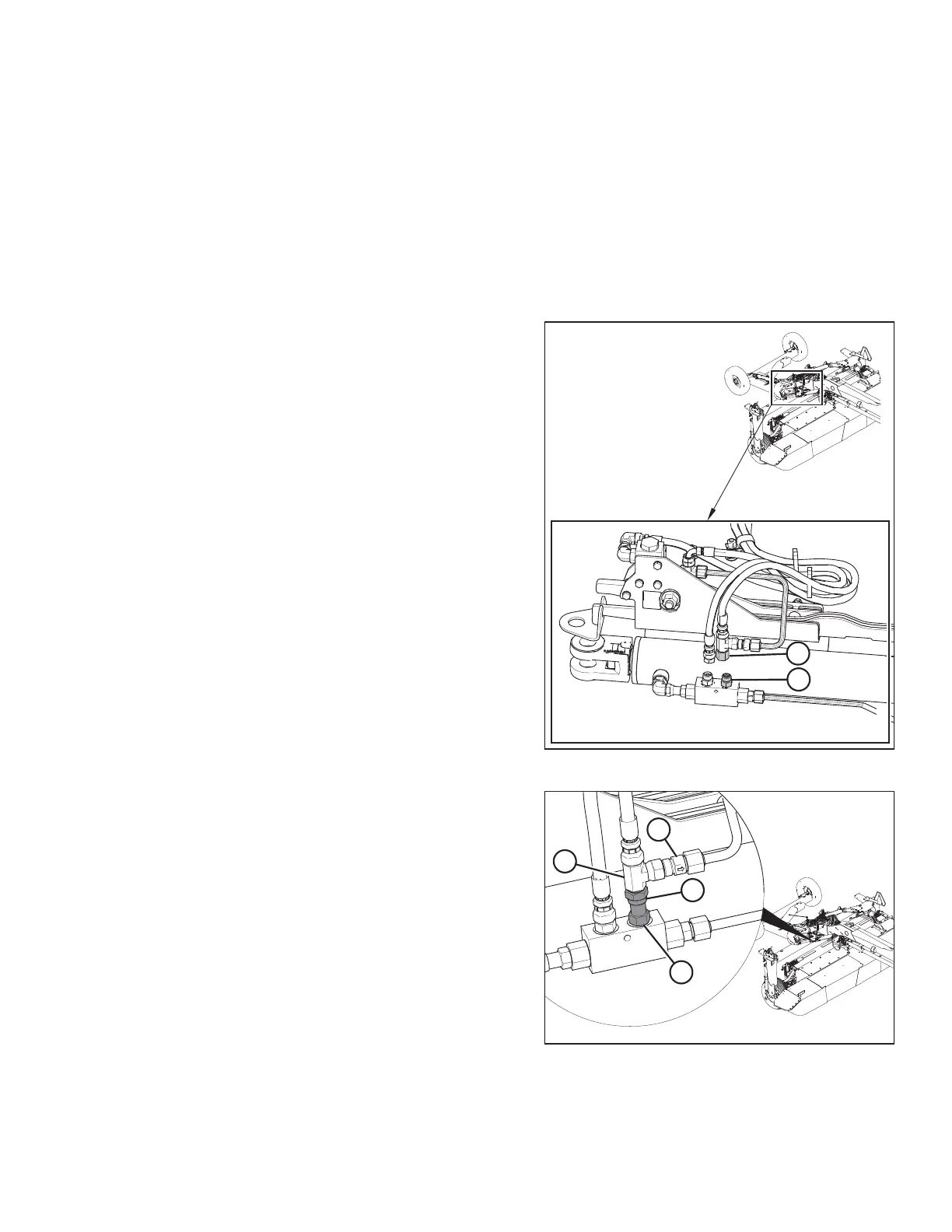

Figure 3.38: Alignment Valve Fitting
1. Retrieve steel lines and hoses from shipping bag.
2. Place a container or rag under the fitting on the hitch
swing cylinder to catch oil.
3. Remove existing fitting (A) from the block.
4. Remove cap (B) from tee fitting.
IMPORTANT:
Ensure O-ring is in place.
1018408
A
B
C
D
Figure 3.39: Alignment Valve Fitting
5. Retrieve ORFS-6 x ORB-6 connector (B) (MD #136147) from
the shipping bag and install at location (A).
NOTE:
Ensure that the direction arrow on check valve (D) points
away from tee fitting (C).
INSTALLATION INSTRUCTIONS
