MacDon R113 - Installing Left Transport Harness

214633 34 Revision C
1011254
A
B

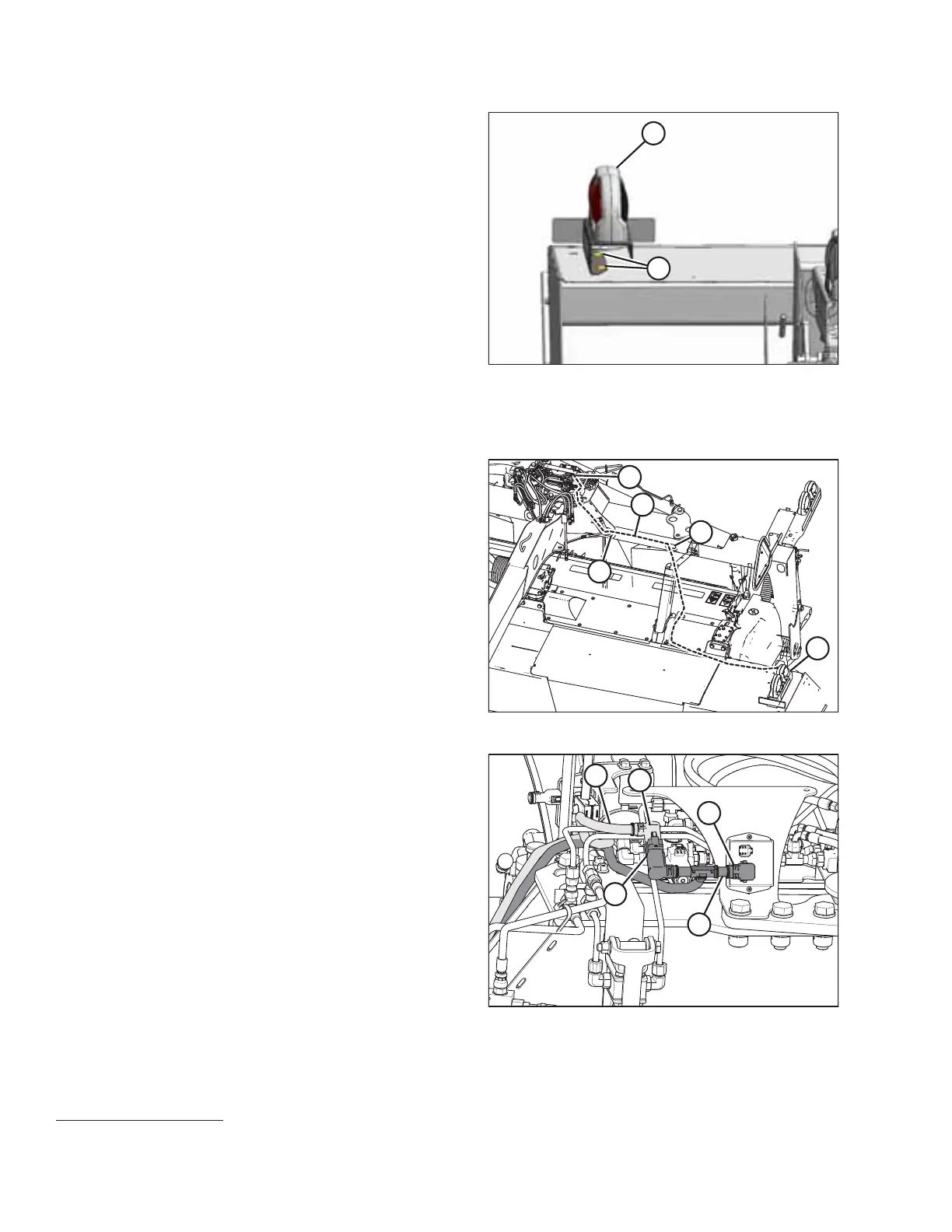

Figure 3.54: Header Left Side Lighting
8. Install light assembly (A) onto the header left end with two
M10 x 20 carriage bolts (B) (MD #136178) and lock nuts
(MD #50101) from the shipping bag. Ensure the amber
lamp faces the front of header and reflector faces
outboard.
3.4.2 Installing Left Transport Harness
1030615
A
B
C
D
E
Figure 3.55: Harness Routing
1. Retrieve transport harness (A) (MD #281614) from the
shipping bag.
2. Route connectors P201 and P202 on the end of harness (A)
to cover support (D).
3. Using a draw tape or equivalent, route connectors P401
and P404 on the other end of the harness (A) through
opening (B) at front of carrier to opening (C) adjacent to
center-link.
4. Route the harness until the plugs reach the left light
assembly (E) on the header.
1022676
A
B
C
D
E
Figure 3.56: Harness Connection
5. Locate plug P301 (D) on harness (E) (MD #281613)
7
. It was
disconnected from the lighting module.
6. Connect plug P201 (B) on harness (A) (MD #281614) into
the lower output receptacle on the lighting module.
7. Connect plug P301 (D) to receptacle P202 (C).
INSTALLATION INSTRUCTIONS
7. Part number is for reference only. Part is not included in the kit.
