MacDon R113 - Converting from Transport to Field Mode - with Road-Friendly Transport

214633 56 Revision C
5.5 Converting from Transport to Field Mode – With Road-Friendly
Transport
™™
DANGER
To prevent serious injury or death, do NOT convert the machine into, or from transport mode until all people, animals,
and objects are clear of the unit’s rotational range.
CAUTION
To prevent equipment damage, ensure cutterbar doors are properly closed before converting the machine from field to
transport mode.
1. Clear bystanders from the area and start tractor. Do NOT operate the rotary disc pull-type.
1023691
A
B
C

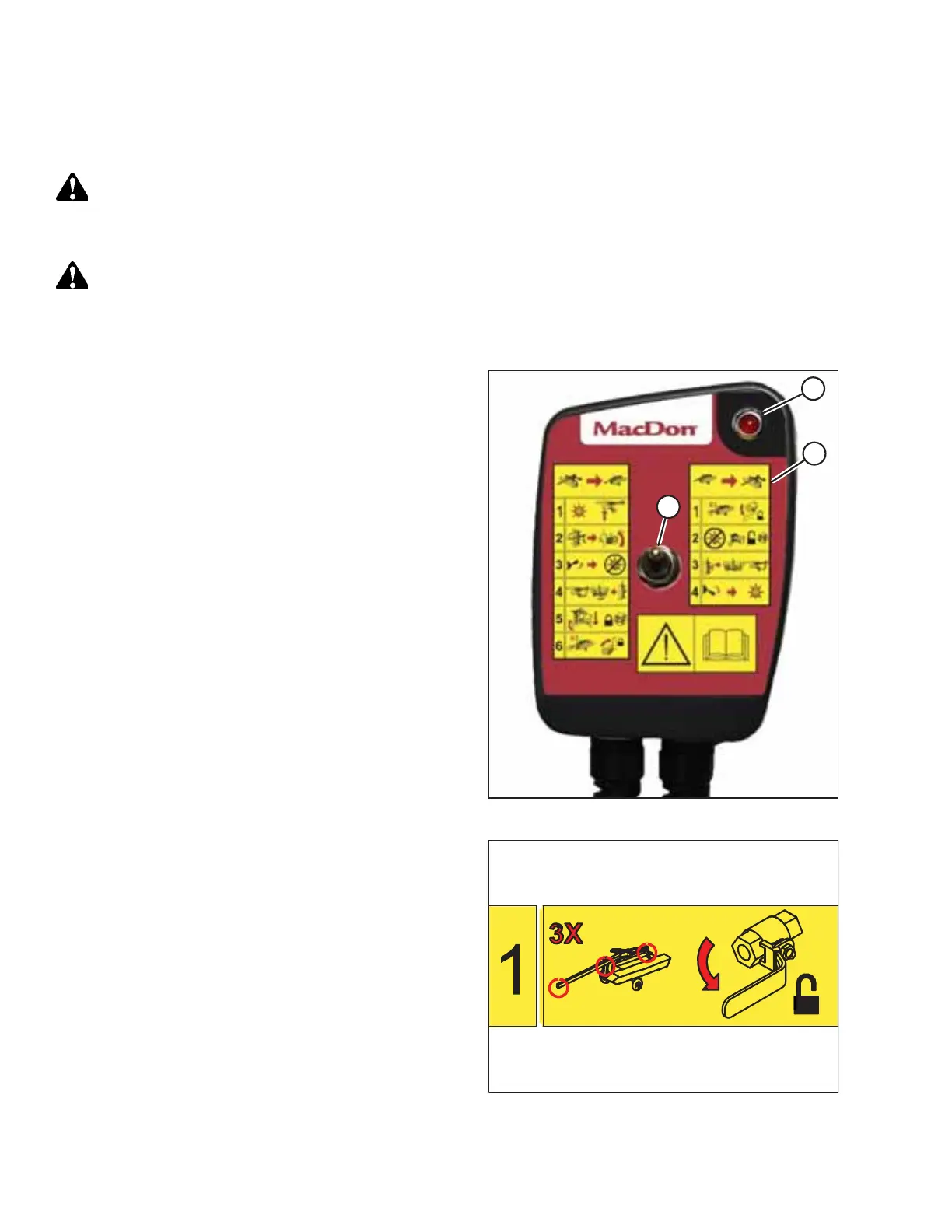

Figure 5.17: Control Box
2. Following the steps on transport-to-field decal (A), move
the transport switch to upper position (C) and ensure that
light (B) is NOT illuminated.
1023685
Figure 5.18: Hydraulic Lockout
3. Open the steering lock-out valve and the two lift cylinder
lock-out valves by turning the handles to the open position.
TRANSPORTING THE ROTARY DISC PULL-TYPE
