MacDon R113 - Installing Transport Valve

214633 21 Revision C
1015302
A
A
B

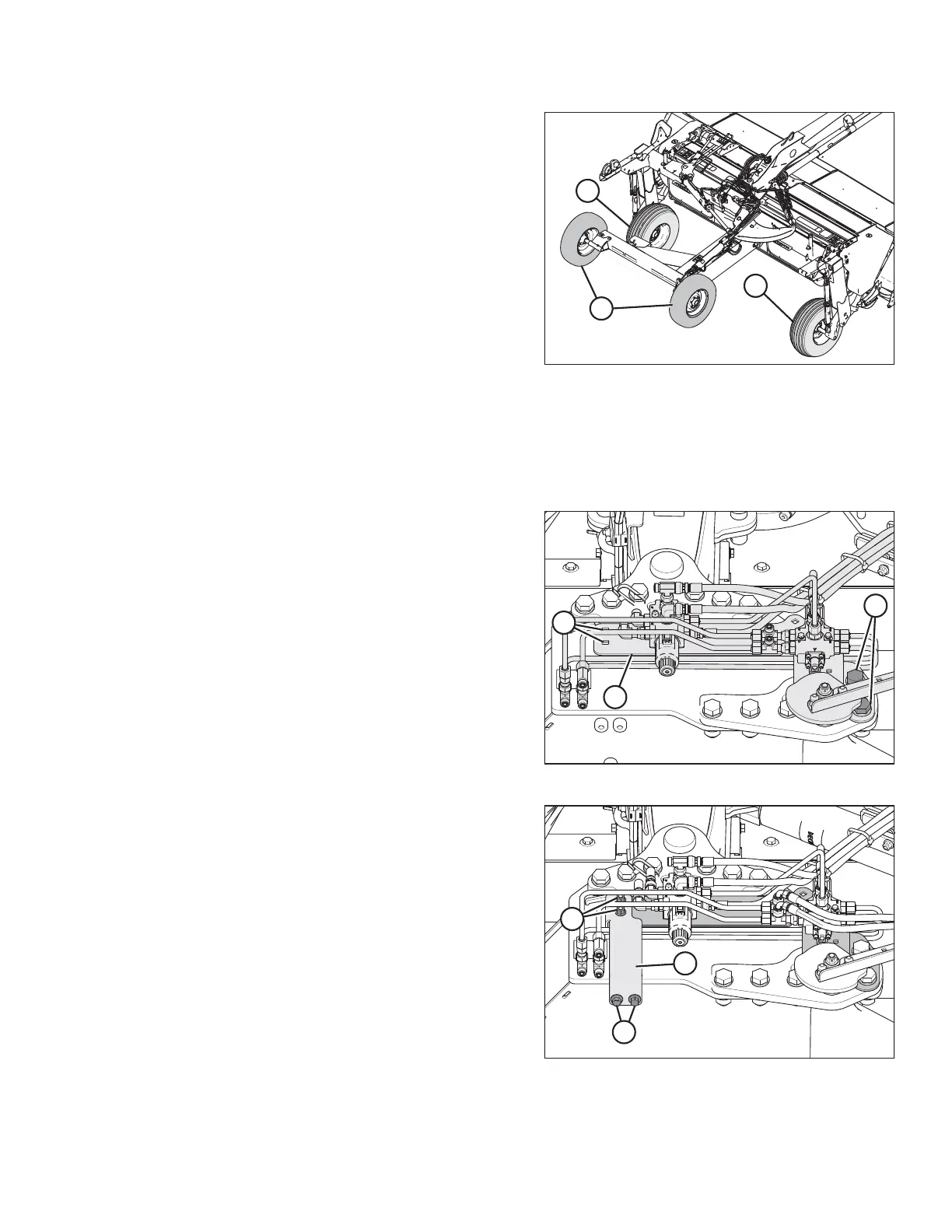

Figure 3.23: Field and Transport Wheels
Check tire pressure daily:
• Maximum pressure is 310 kPa (45 psi) for field wheels (A).
• Maximum pressure is 552 kPa (80 psi) for optional transport
wheels (B).
3.2.4 Installing Transport Valve
NOTE:
Cover support bracket removed from illustrations for clarity.
1016394
A
B
C
Figure 3.24: Selector Valve
1. Retrieve valve assembly (A) from the pallet.
2. Position valve assembly (A) on the carrier hitch pin plate
as shown.
3. Install two M20 x 65 bolts (B) (MD #136157), hardened
washers (MD #112130), and nuts (MD #136122).
4. Retrieve two M10 x 20 bolts (MD #136178) from the
shipping bag and install bolts at location (C) with threads
facing up. Install nuts (MD #50101), but do NOT tighten.
5. Torque bolts (B) to 461 Nm (340 lbf·ft).
1014868
A
C
B
Figure 3.25: Support Plate
6. Install support plate (A) (MD #247958) and secure it with
bolts (B).
7. Install bolts (C) (MD #136399), but do NOT tighten.
INSTALLATION INSTRUCTIONS
