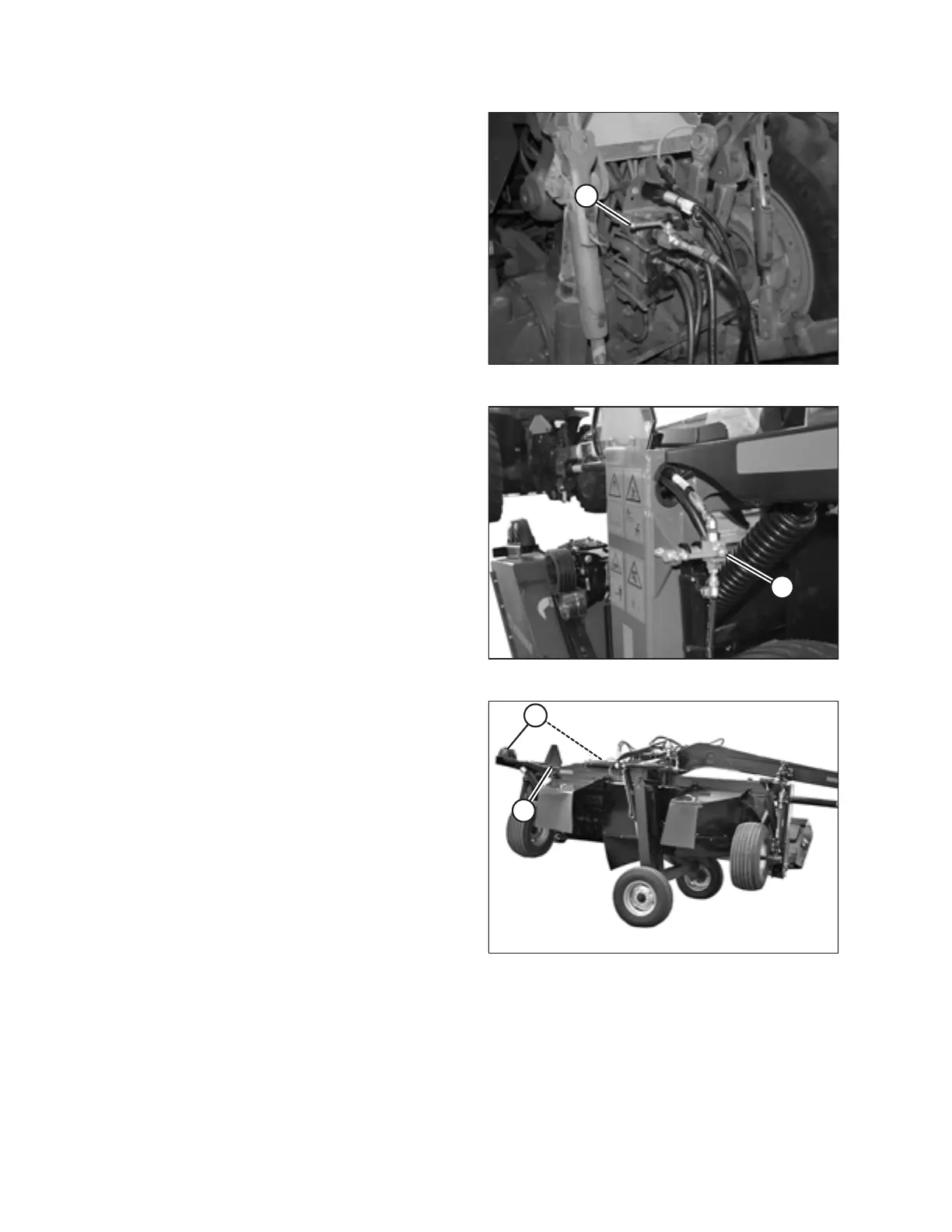

Figure 5.13: Steering Lock-Out Valve
Steering lock-out: Close the valve by turning handle (A) to
the closed position (90° to the hose).
10237341023734
A
Figure 5.14: Lift Cylinder Lock-Out Valve
Lift cylinder lock-out: Close the valve by turning handle (A)
to the closed position (90° to the hose). Repeat on
opposite side.
1023658
B
A
Figure 5.15: Transport Mode
11. Activate hazard lights (A) on the rotary disc pull-type.
Ensure all lights are working.
12. Ensure that slow moving vehicle sign (B) is visible from
behind the rotary disc pull-type.
