Hookup Diagrams > Typical Recording System

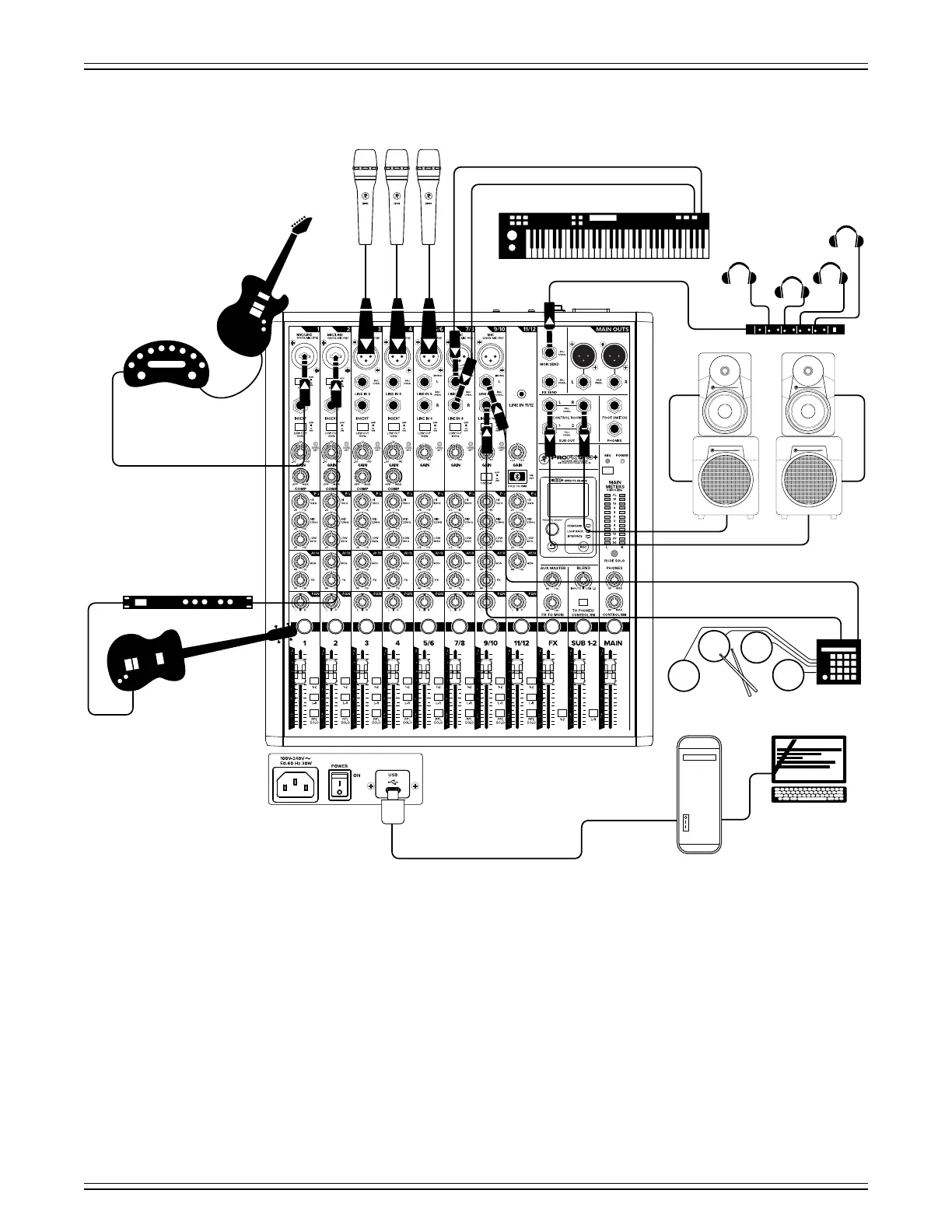

Like the previous hookup diagram, this one also starts with a guitar and bass attached to the channel  and 2 line-level inputs,
each via a mono eects processor. The Hi-Z switch is engaged on both channels. Microphones are attached to channels 3
through 5/6, a keyboard to stereo channels 7/8, and an electronic drum kit to stereo channels 9/0.
MR Series powered reference subwoofers and monitors are connected to the lef and right control room outputs for careful
and accurate monitoring of the performance. Headphones connected to the aux (monitor) out via a headphone amp
are available for the talent to utilize when tracking.
A desktop computer connects to the USB port to record the mix to the DAW, as well as playback from the DAW.
