Mackie THUMP210XT - Small Club System

THUMP210XT 10" 1400W ENHANCED COMPACT POWERED LOUDSPEAKER
24
Hookup Diagrams > Small Club System

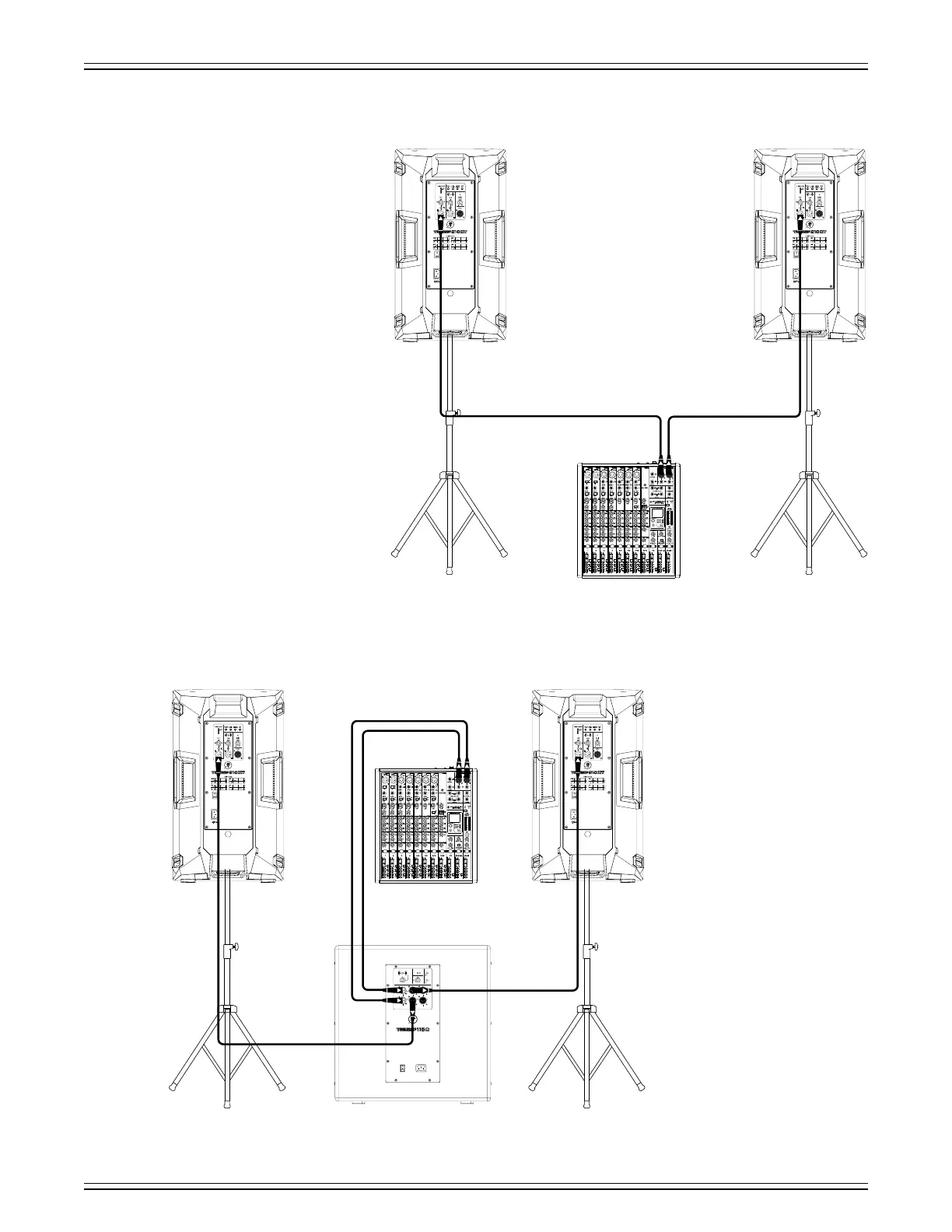

In this example, a ProFX2v3+
mixer is connected directly
to two Thump20XT loudspeakers.
It is the perfect setup for a small
club or... a fun karaoke house party!
Simply connect the L/R outputs
of the ProFX2v3+ mixer
to the channel  input
of each ThumpXT loudspeaker.
Set the voicing mode of both to live
or club.
The gain knob on both should
be set to Line.
The Mic/Line switches should be
disengaged [Line], as well.
Keep in mind that these “MIC” and
“LINE” markings are for reference
only and may need to be raised or
lowered.
If you desire a little more boom,
add a Thump subwoofer to the mix.
Here, the L/R outputs
of a ProFX2v3+ mixer
are connected directly
to the A and B inputs
of a Thump5S subwoofer.
Then the High-Pass Outs
of the subwoofer are connected
to the channel  inputs of a pair
of Thump20XT loudspeakers.
Set the high pass mode of the sub
to your preferred choice
and the voicing mode of both
loudspeakers to live or club.
The gain knob on both should
be set to Line. Keep in mind that
these “MIC” and “LINE” markings
are for reference only and may
need to be raised or lowered.
MUSIC
MON
LIVE
CLUB
MIN MIN
SIG/OL
MUSIC
MON
LIVE
CLUB
MIN MIN
SIG/OL
MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE
SIG/OL
FRONT LED PHASE
FR OUTPUT
U
+6dB-6dB
160Hz80Hz
120Hz
INPUT HIGH PASS
OUT
FULL RANGE
OUT
NORMAL
INVERT
FLAT
DEEP
PUNCH
VARIABLE
ON
OFF
STEREO
MONO
A
HIGH PASS MODE
A
B B
MUSIC
MON
LIVE
CLUB
MIN MIN
SIG/OL
MUSIC
MON
LIVE
CLUB
MIN MIN
SIG/OL
MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE
