Mackie THUMP210XT - Thump210 Xt Block Diagram

THUMP210XT 10" 1400W ENHANCED COMPACT POWERED LOUDSPEAKER
34

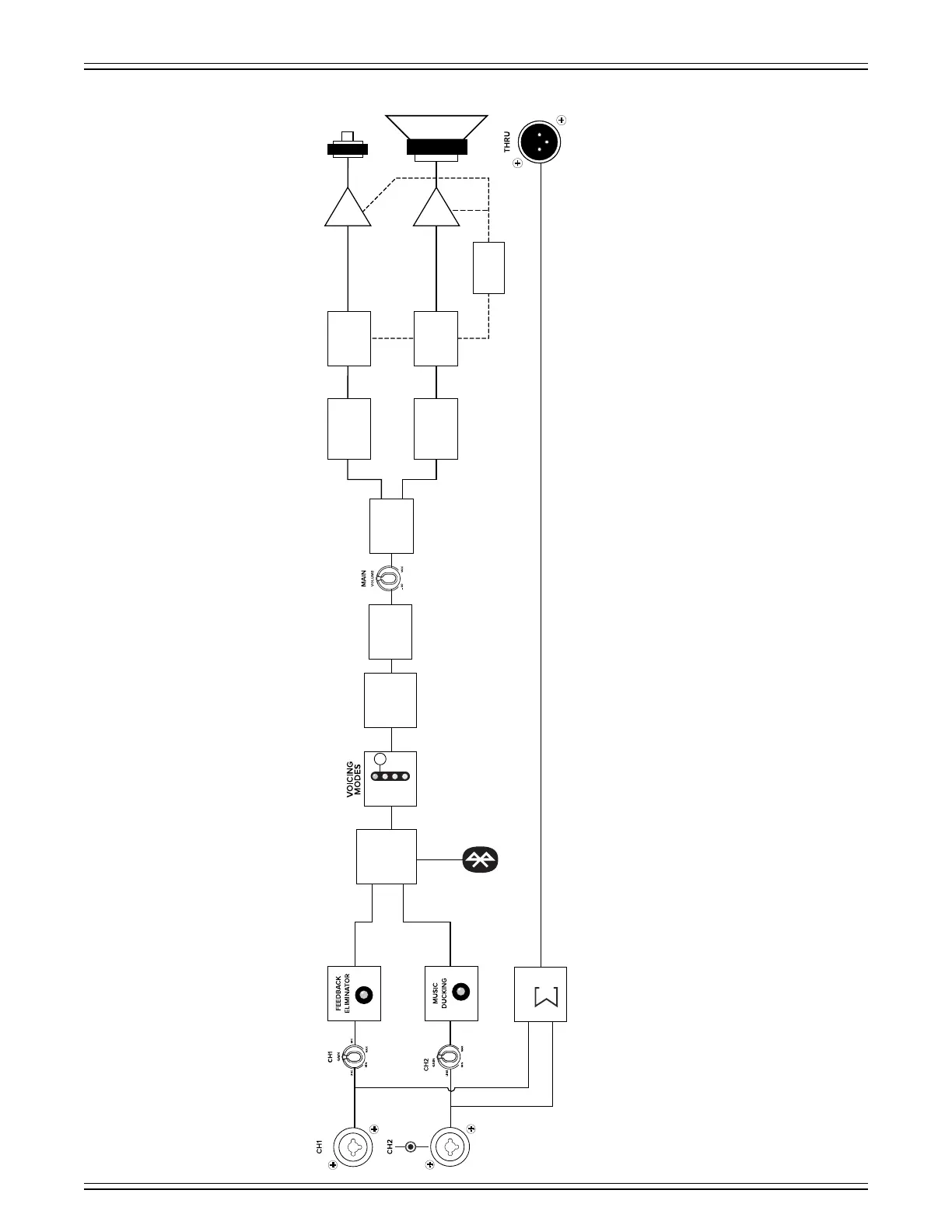

Thump20XT Block Diagram
Amp Amp
Limiter Limiter
LF
Equalization
HF
Equalization
Thermal Monitoring
Crossover
2-channel
mixer with
user-controlled
input gains
(app only)
2-band
User EQ
(app only)
Level and Mute
Controls
(app only)
MUSIC
MON
LIVE
CLUB
SUM
1/8" / 3.5mm
