Mackie THUMP210XT - DJ System

THUMP210XT 10" 1400W ENHANCED COMPACT POWERED LOUDSPEAKER
25
Hookup Diagrams > DJ System
Perhaps you’re a DJ playing bumpin’ tunes in the middle of the night to a crowd that’s groovin’ and dancin’ to your fine selection.

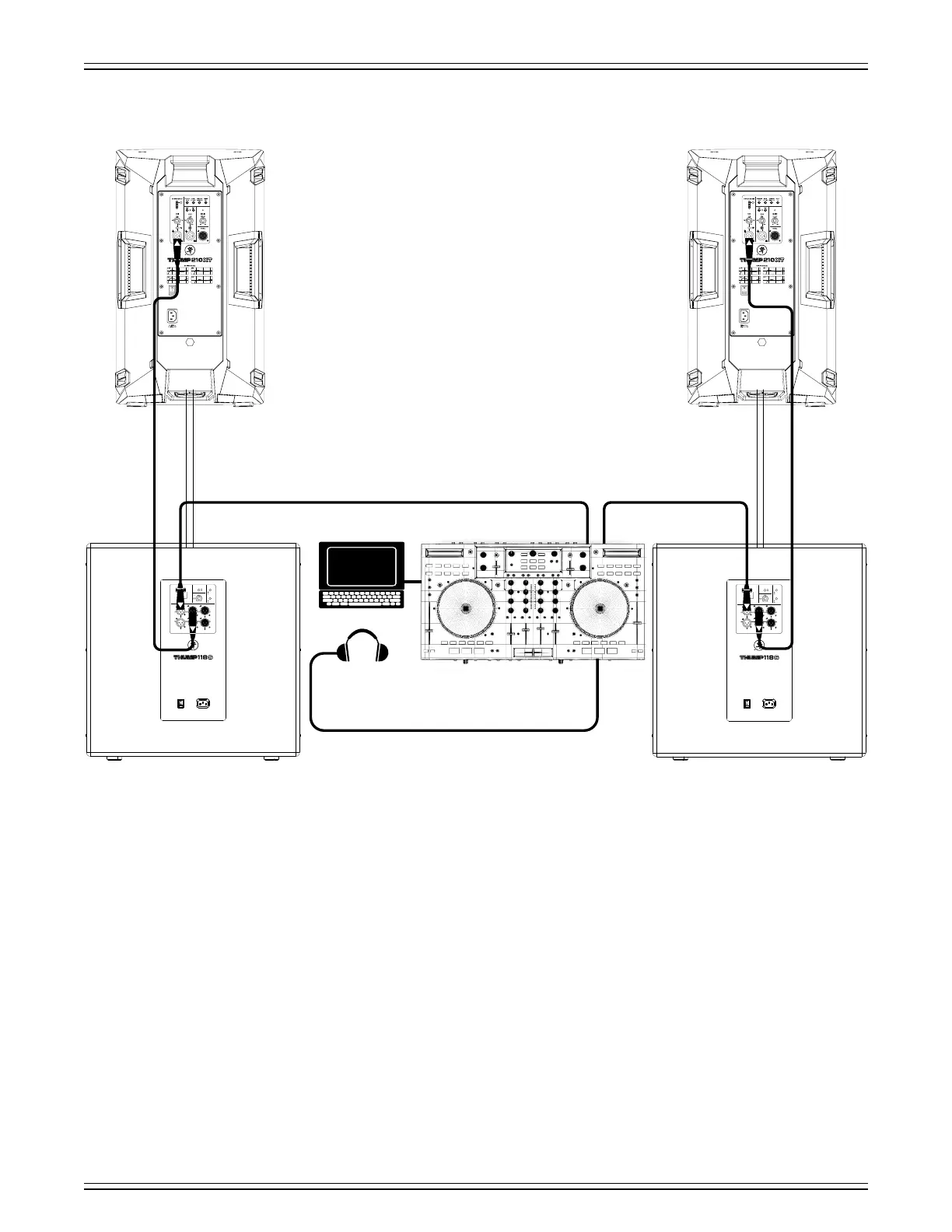

In this example, a laptop is connected to a DJ controller.
The L/R outputs of the DJ controller are connected to the “A” inputs of two Thump8S subwoofers.
The High-Pass Out of each subwoofer is then connected to the input of each Thump20XT loudspeaker.
Additionally, a set of Mackie MC-350 headphones is connected to the phones jack of the DJ controller.
The gain knob on both loudspeakers should be set to Line. The Mic/Line switches should be disengaged [Line], as well.
Additionally, you will want to set the subwoofer’s High Pass Mode to either Flat or Deep and the voicing mode
of both loudspeakers to live or club.
Keep in mind that these “MIC” and “LINE” markings are for reference only and may need to be raised or lowered.
SIG/OL
FRONT LED PHASE
FR OUTPUT
U
+6dB-6dB
160Hz80Hz
120Hz
INPUT HIGH PASS
OUT
FULL RANGE
OUT
NORMAL
INVERT
FLAT
DEEP
PUNCH
VARIABLE
ON
OFF
STEREO
MONO
A
HIGH PASS MODE
A
B B
SIG/OL
FRONT LED PHASE
FR OUTPUT
U
+6dB-6dB
160Hz80Hz
120Hz
INPUT HIGH PASS
OUT
FULL RANGE
OUT
NORMAL
INVERT
FLAT
DEEP
PUNCH
VARIABLE
ON
OFF
STEREO
MONO
A
HIGH PASS MODE
A
B B
MUSIC
MON
LIVE
CLUB
MIN MIN
SIG/OL
MUSIC
MON
LIVE
CLUB
MIN MIN
SIG/OL
