22 5940A R-net User Guide DCR1266 magicmobility.com.au
This indicates a system trip, i.e. the R-net has detected a problem somewhere in the wheelchair’s electrical
system.
Refer to section 5 for a detailed description of Diagnostic screen and procedure. Refer to Chapter 3
Diagnostics for a complete description of the Trip Texts.

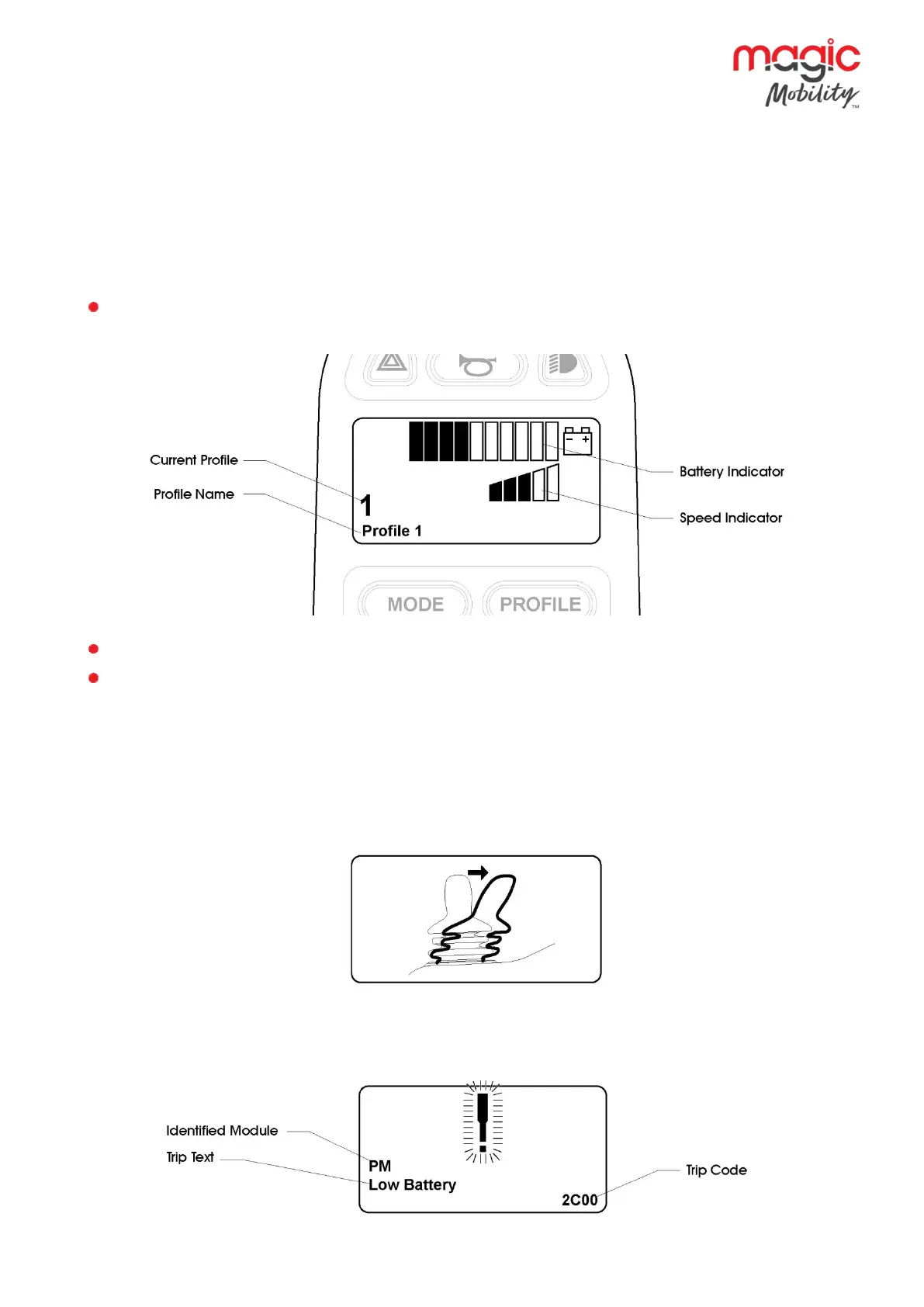

7 GETTING READY TO DRIVE
Operate the On/Off switch. The screen will go through an initializing process then show the base screen
as follows. In the case on an LED Joystick Module the battery gauge will illuminate.
Check that the Speed Setting is at a level that suits you.
Push the joystick to control the speed and direction of the wheelchair.
NOTE:
If you push the joystick before or just after you switch the control system on, the screen will flash the
joystick displaced screen. You must release and centre the joystick to resume normal operation. If you do
not release the joystick within five seconds the wheelchair will not be able to move, even if you release
the joystick and push it again. The screen will display the diagnostic screen at this time. You can reset
this condition by switching the control system off and on again.
If you do not push the joystick as you switch the wheelchair on and the diagnostic screen is displayed, as in
the following diagram, then the R-net has detected a problem somewhere in the wheelchair’s electrical
system.
