Chapter 2 – ELPM 90, JSM-LED & SM

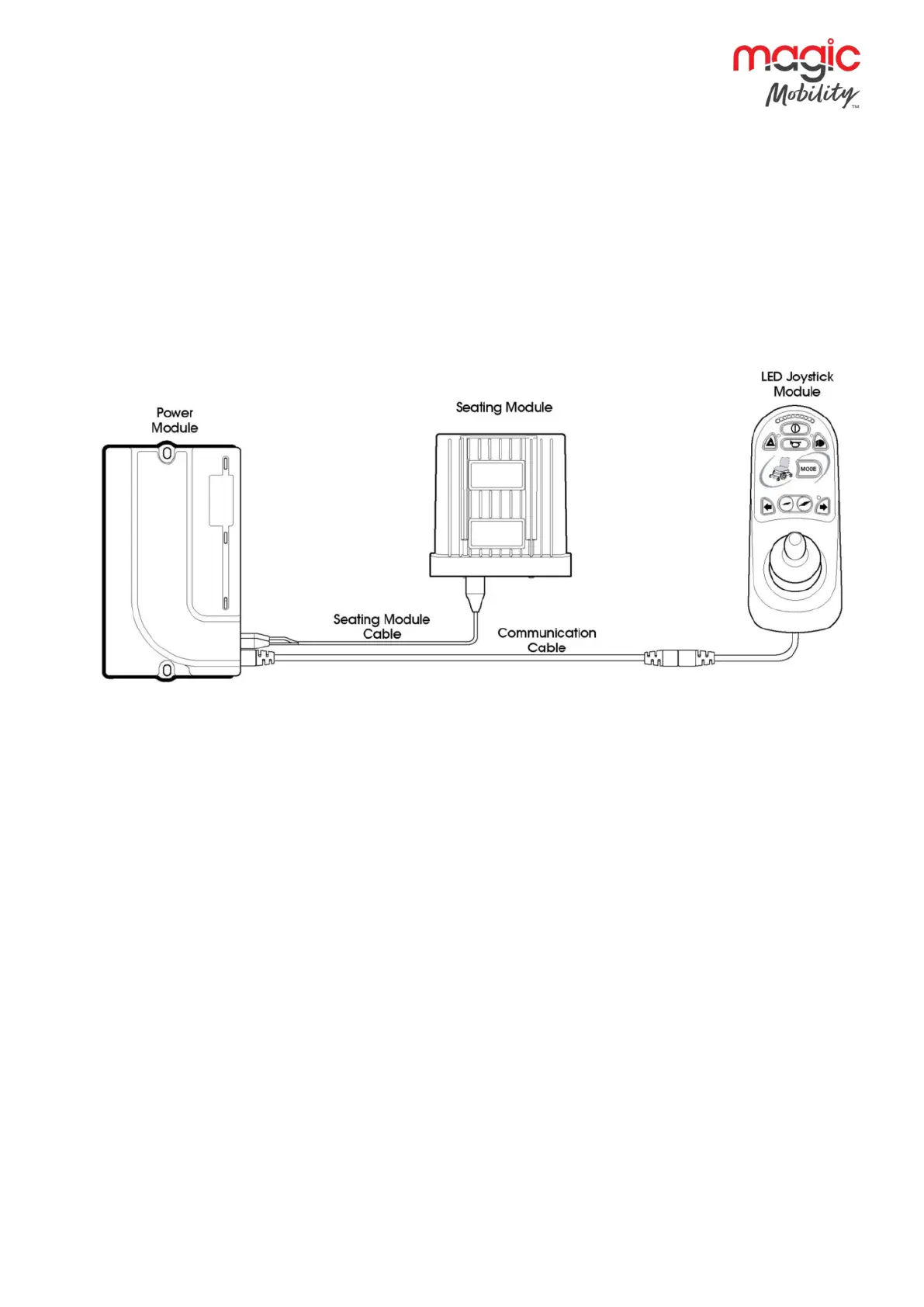

1 INTRODUCTION
JSM-LED: LED Joystick Module
JSM-LED-L: LED Joystick Module with lighting control buttons
EL PM90: EL 90A Power Module
SM: Seating Module
NOTE:
The EL PM90 can be used with any R-net JSM, including LCD based versions, as well as an Omni or any
other Input Device.
The LED JSMs can be used with any R-net PM, ISM or any other Output Device.
The SM can only be used with the EL PM90.
The JSM-Led should not be used for Latched drive operation, there is no facility to fit an E-stop switch to
the LED Joystick Module.
2 CONTROLS – JSM-LED AND JSM-LED-L
There are common controls between the R-net and R-net LED control systems that operate as previously
described in Chapter 1. Where a control has been moved this will be noted, however where a control has
changed, a description of its new functionality and use will be given.
All information regarding handling advice, cleaning requirements and overall control described in Chapter 1
should be followed.

Magic Mobility R-NET CJSM2 Specifications
