4.3 LCD Screen
The status of the control system can be understood by observing the LCD screen. The control system is on
when the screen is backlit. Refer to section 5 for details on screen symbols.
4.4 Charger socket
This socket should only be used for charging or locking the wheelchair. Do not connect any type of
programming cable into this socket. Refer to section 13 for more details on charging.
This socket should not be used as a power supply for any other electrical device. Connection of other
electrical devices may damage the control system or affect the E.M.C. performance of the wheelchair.
WARNING:
The control system’s warranty will be voided if any device other than a battery charger supplied, with the
wheelchair, or the lock key is connected into this socket.
5 LCD SCREEN - MONOCHROME
The status of the control system can be understood by observing the LCD screen.
5.1 Screen symbols

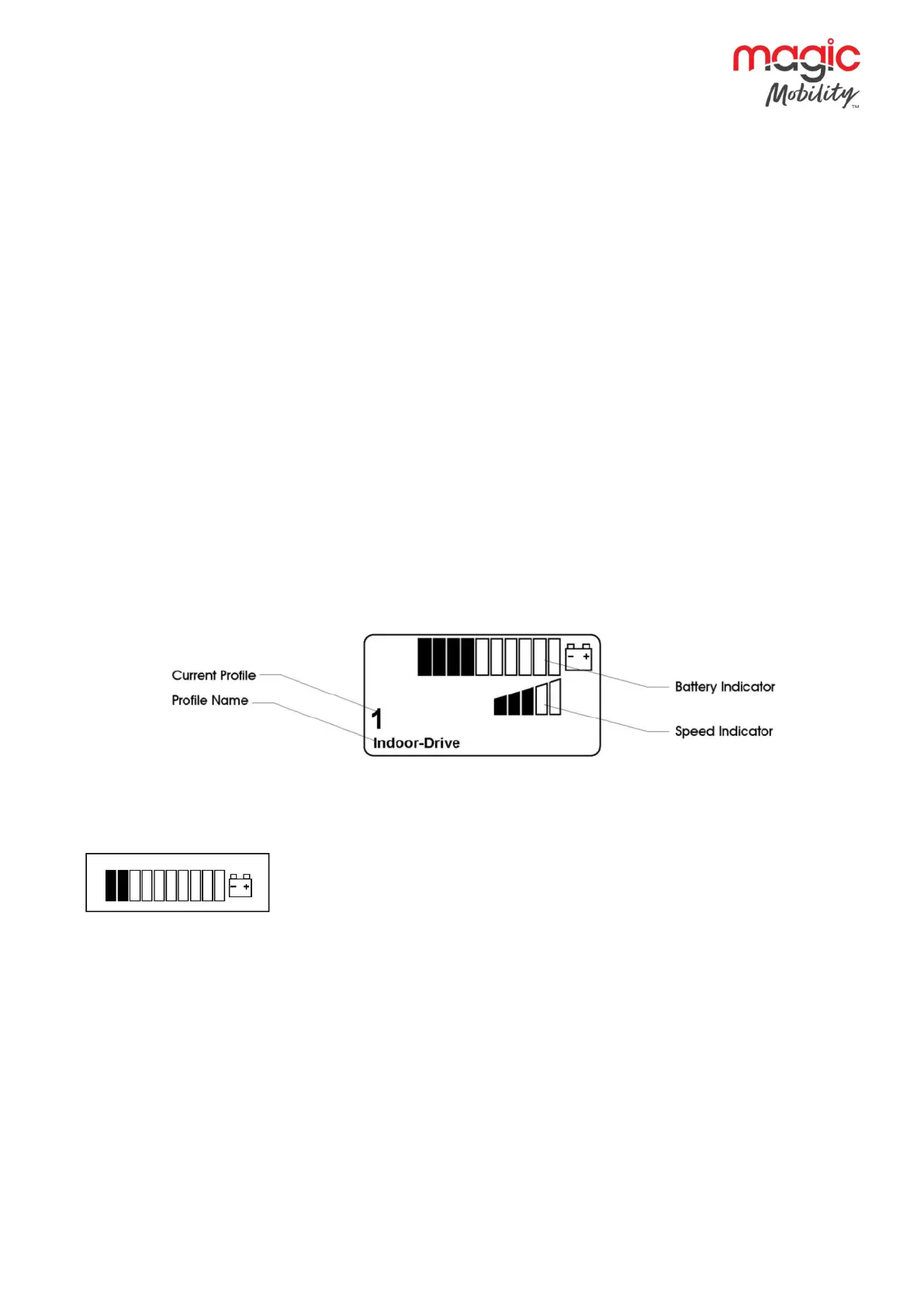

The Drive screen for the R-net has common components, which will always appear, and components that will
only appear under certain conditions. Below is a view of a typical Drive screen in Profile 1.
5.1.1 BATTERY INDICATOR
This displays the charge available in the battery and can be used to alert the user to the status of the battery.
This displays the charge available in the battery and can be used to alert the user
to the status of the battery.
Steady This indicates that all is well.
Flashing Slowly The control system is functioning correctly, but you should charge the battery as soon
as possible.
Stepping Up The wheelchair batteries are being charged. You will not be able to drive the wheelchair
until the charger is disconnected and you have switched the control system off and on
again.
Refer to section 12 for a description of how to read the Battery Gauge.
