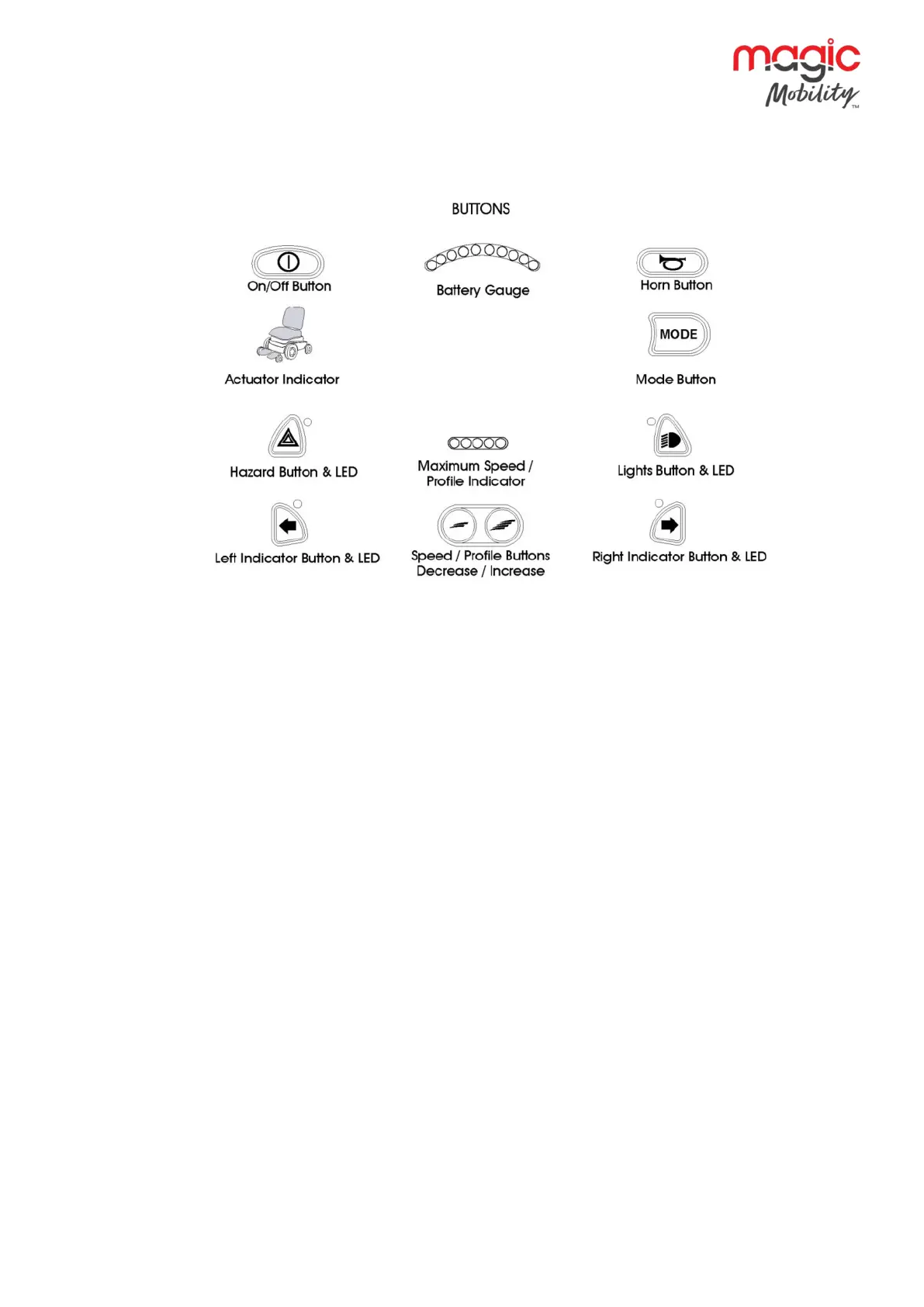

2.1 Buttons
2.1.1 BATTERY GAUGE
The battery gauge shows you that the wheelchair is switched on. It also indicates the operating status of the
wheelchair. Details are given in section 3.
If the battery gauge shows red, yellow and green, the batteries are charged. (LEDs 1 – 10)
If the battery gauge shows just red and yellow, then you should charge the batteries as soon as you can.
(LEDs 1 – 7)
If the battery gauge shows just red, either steady or flashing slowly, then you should charge the batteries
immediately. (LEDs 1 – 3)
WARNING:
Do not operate the control system if the battery is nearly discharged. Failure to comply with this
condition may leave the user stranded in an unsafe position, such as in the middle of a road.
2.1.2 MAXIMUM SPEED / PROFILE INDICATOR
This is a gauge which shows the maximum speed setting for the wheelchair or, if the control system is
programmed for drive profile operation, the selected drive profile.
This gauge also indicates if the speed of the wheelchair is being limited or if the control system is locked, refer
to section 3.
2.1.3 MAXIMUM SPEED INDICATOR
This is a gauge that shows the maximum speed setting of the wheelchair. There are five speed settings – step
1 is the lowest speed and step 5 is the highest speed.
