This indicates a system trip, i.e. the R-net has detected a problem somewhere in the wheelchair’s electrical
system. Please follow this procedure:
Switch off the control system.
Make sure that all connectors on the wheelchair and the control system are mated securely.
Check the condition of the battery.
If you can’t find the problem, try using the self-help guide given in section 3.7.
Switch on the control system again and try to drive the wheelchair. If the safety circuits operate again,
switch off and do not try to use the wheelchair.
Contact your service agent.
3.5 Speed indicator ripples outwards
In this instance the LEDs make a ripple motion starting with the middle LED and then stepping outwards on
both sides. The Control System has detected that a new module has been added and is reconfiguring.
3.6 Speed indicator LEDs 2 & 4 flash
When the control system requires a reboot; for example, after a module re-configuration, the
second and fourth speed indicator LEDs will flash.
3.7 Self-help guide

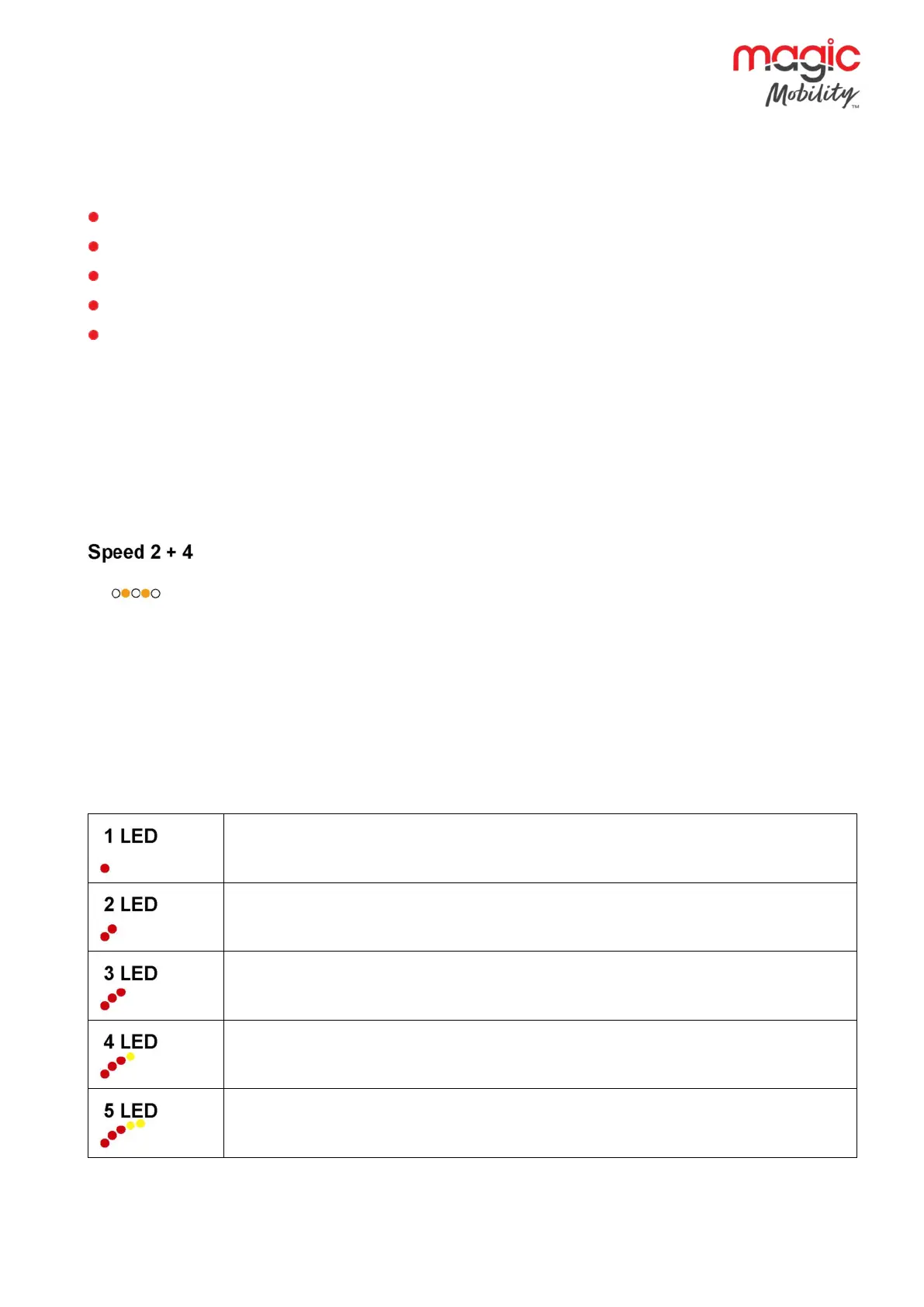

If a system trip occurs, you can find out what has happened by counting the number of LEDs on the battery
gauge that are flashing.
Below is a list of self-help actions. Try to use this list before you contact your service agent. Go to the number
in the list which matches the number of flashing LEDs and follow the instructions.
If the problem persists after you have made the checks described below contact your service agent.
The battery needs charging or there is a bad connection to the battery. Check the
connections to the battery. If the connections are good, try charging the battery.
The left hand motor* has a bad connection. Check the connections to the left hand
motor.
The left hand motor* has a short circuit to a battery connection. Contact your service
agent.
The right hand motor* has a bad connection. Check the connections to the right hand
motor.
The right hand motor* has a short circuit to a battery connection. Contact your service
agent.
