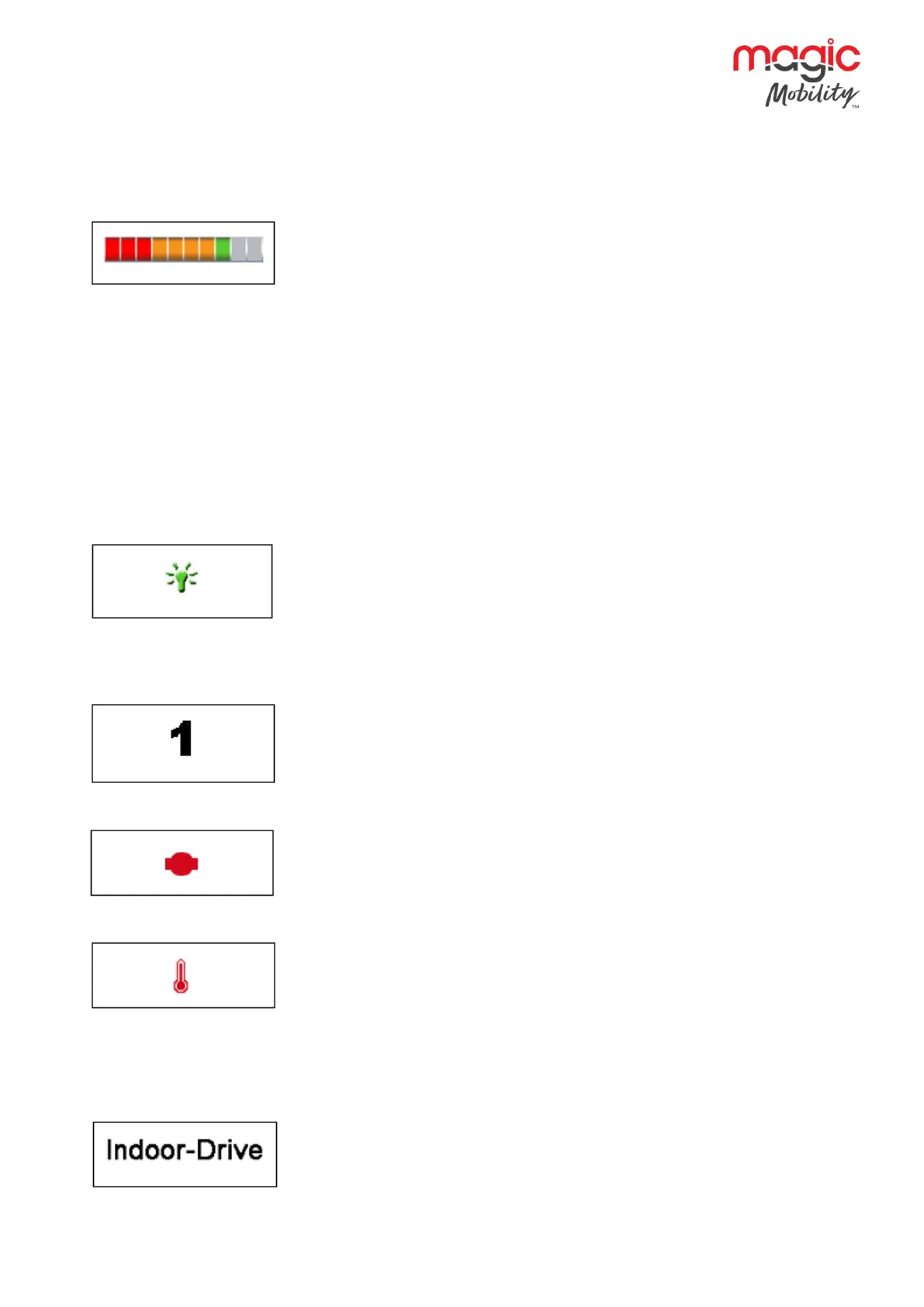

6.1 Top bar
6.1.1 BATTERY INDICATOR
This displays the charge available in the battery and can be used to alert the user
to the status of the battery.
Steady: This indicates that all is well.
Flashing Slowly: The control system is functioning correctly, but you should charge the battery as soon
as possible.
Stepping Up: The wheelchair batteries are being charged. You will not be able to drive the wheelchair
until the charger is disconnected and you have switched the control system off and on
again.
Refer to section 12 for a description of how to read the Battery Gauge.
6.1.2 FOCUS
When the control system contains more than one method of direct control, such
as a secondary Joystick Module or a Dual Attendant Module, then the Module
that has control of the wheelchair will display the In Focus symbol.
6.2 Base bar
6.2.1 CURRENT PROFILE
The currently selected Profile is shown in numeric form.
6.2.2 MOTOR TEMPERATURE
This symbol is displayed when the control system has intentionally reduced the
power to the motors, in order to protect them against heat damage.
6.2.3 CONTROL SYSTEM TEMPERATURE
This symbol is displayed when the control system has intentionally reduced its
own power, in order to protect itself against heat damage.
6.3 Main screen area
Drive Screen
6.3.1 PROFILE NAME
This is a text string that displays the name of the currently selected Profile.
